Mean and Green: A Tasmanian Triumph Scrambler custom

Mean and Green: A 2014 Triumph Scrambler custom tuned for performance

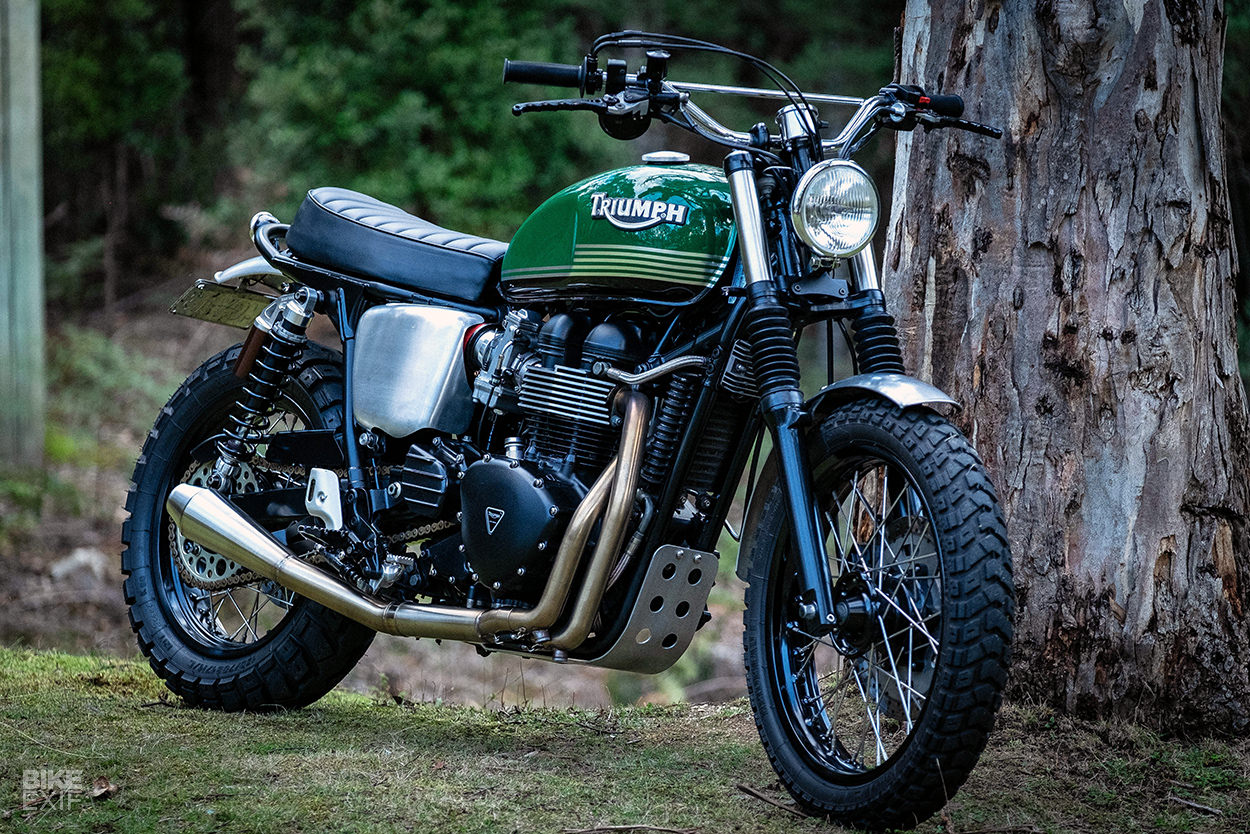

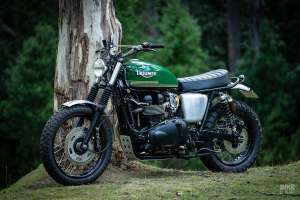

Since its introduction in 2006, the Triumph Scrambler has been a standout in the marque’s modern classics rage. Its easygoing nature and effortlessly cool desert sled vibe have ensured continued popularity. But there’s always room for improvement.

That was Jim Robinson‘s sentiment at least, when he got his hands on a 2008-model Scrambler. Jim’s a British graphic designer and photographer who spent fifteen years in Sydney before recently relocating to Hobart, Tasmania.

Mean and Green: A 2014 Triumph Scrambler custom tuned for performance
“Tasmania undoubtedly has some of the finest motorcycling roads in the world,” he says. “You can literally ride for hours and barely see another soul!”

“I’d spent years riding sports bikes, naked and ’motards, but like many always had a soft spot for the Triumph Scrambler. So I decided to try and track one down. I loved it from the off—the noise alone ticks more boxes then most previous bikes I’ve owned.”

Mean and Green: A 2014 Triumph Scrambler custom tuned for performance
“Although the performance was adequate for the city commute, it lacked a little when you fancied being a bit of a rat bag on the weekend. So I bought a KTM 690 for the daily grind, and set about turning my rather tame Trumpy into something a little more exciting.”

Jim didn’t just want to customize the Scrambler for the sake of change. He was after a factory fresh feel—complete with a side helping of performance enhancements.

Mean and Green: A 2014 Triumph Scrambler custom tuned for performance
“I wanted this bike to look like the desert sleds of the 60s,” he tells us, “but with some real balls to go with it. Not just a show pony, but something to be ridden hard.”

Having never tackled a pukka custom build, Jim knew he needed help. So he roped in a mate, Tony, who had also never tackled a pukka custom build. (“It was so that when things went wrong—and they did—I’d have someone to blame!” he explains.)

Mean and Green: A 2014 Triumph Scrambler custom tuned for performance
After months of research, Jim kicked off the project by shipping most of the motor off to Bonneville Performance in the US. The rebuild included 904 cylinders, high compression Wiseco pistons, a flowed and ported head with larger titanium intake valves, and race cams.

The carbs were upgraded too, to a pair of 42 mm Mikuni flat slides.

Mean and Green: A 2014 Triumph Scrambler custom tuned for performance

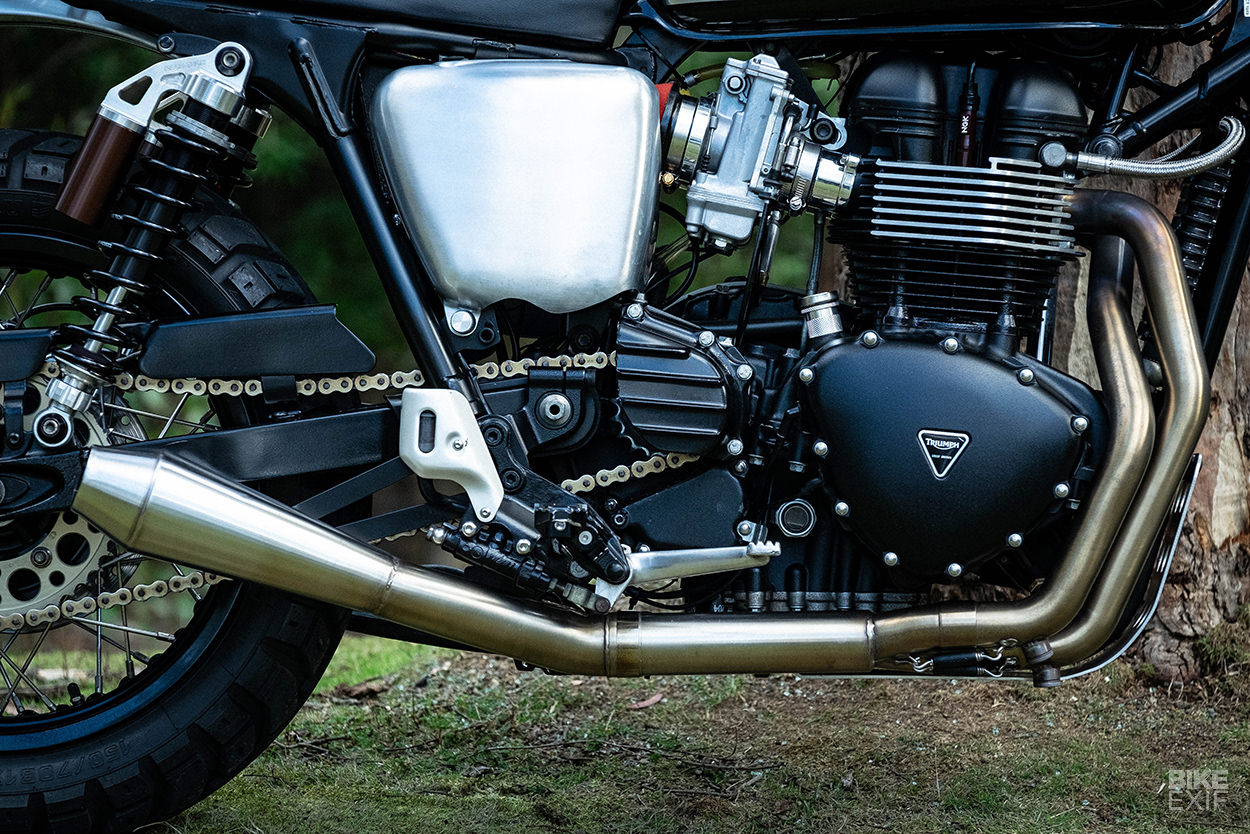

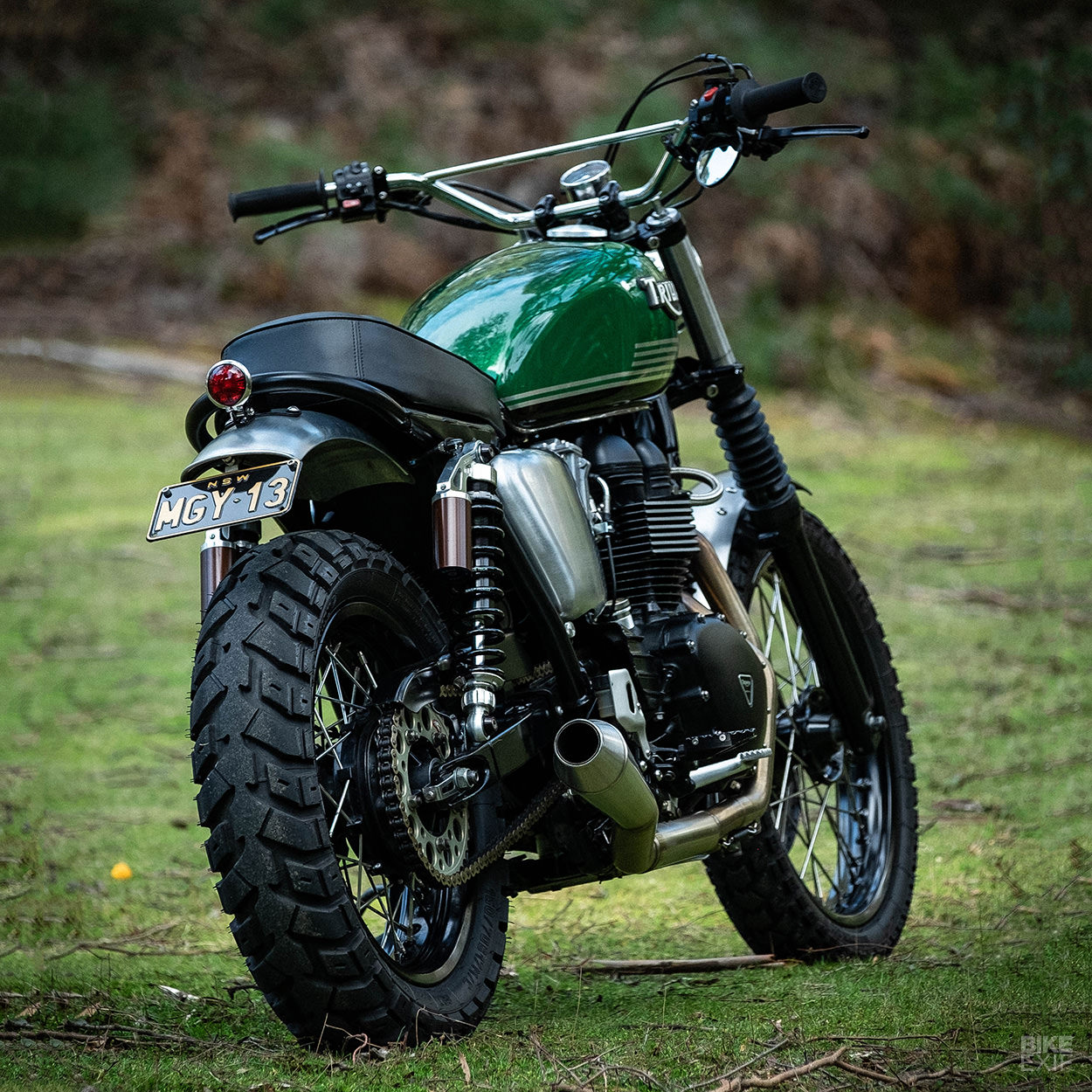

Jim had bought the Triumph with a full Arrow exhaust system, but he swapped it out for a set of two-into-one Arrow Thruxton headers, mated to a short, stainless steel reverse-cone muffler. (Apparently, “it’s got some volume.”)

The stock Scrambler’s not known for its handling—and Jim wanted to fix that. On went a set of custom-made Race Tech G3 rear shocks, and in went new Race Tech fork internals.

Mean and Green: A 2014 Triumph Scrambler custom tuned for performance
Jim upgraded the wheels too, with German-made Behr rims laced up to billet hubs, now wrapped in Heidenau K60 Scout rubber. The front brake was upgraded too, with a Pretech six-pot caliper.

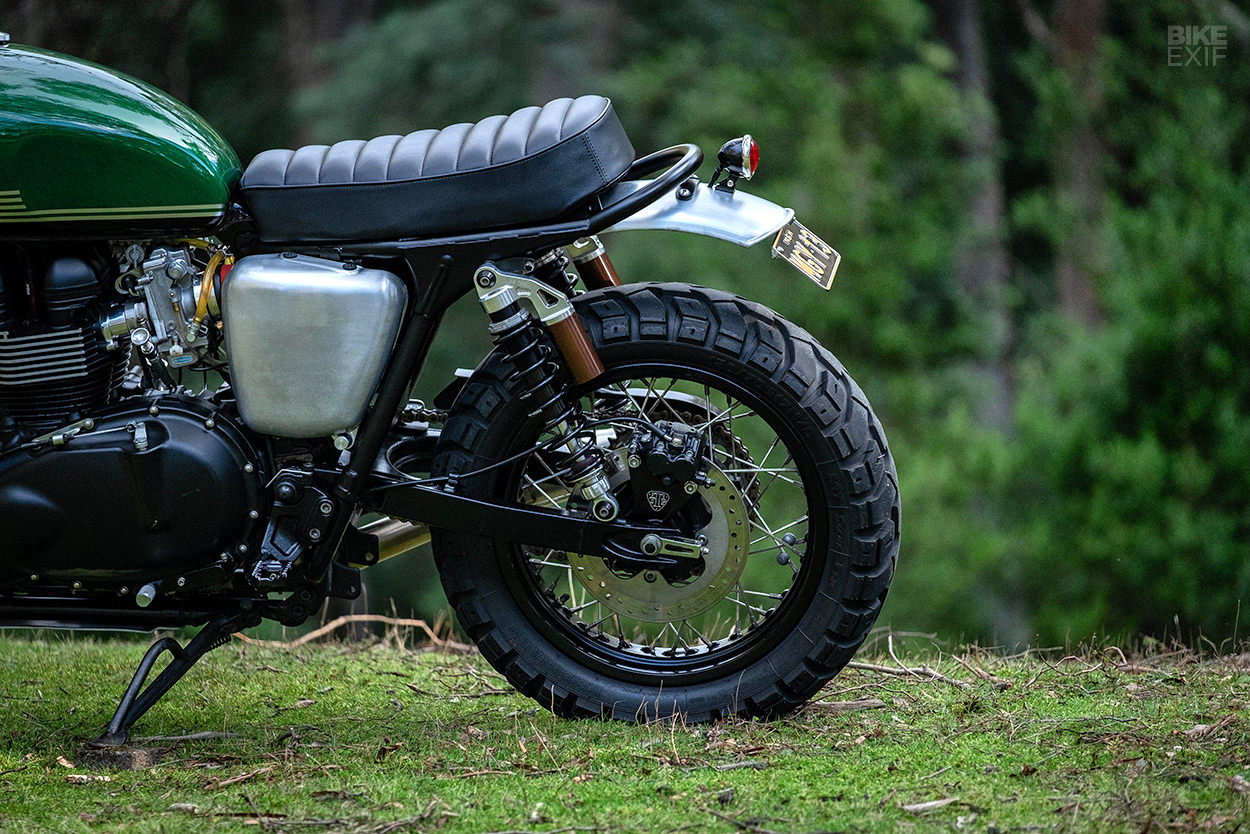

With the Triumph’s performance raised to more-than-acceptable levels, Jim switched to the cosmetics. He started by chopping the rear, then mocking up a new subframe loop with plastic piping that he picked up at the hardware store.

Mean and Green: A 2014 Triumph Scrambler custom tuned for performance

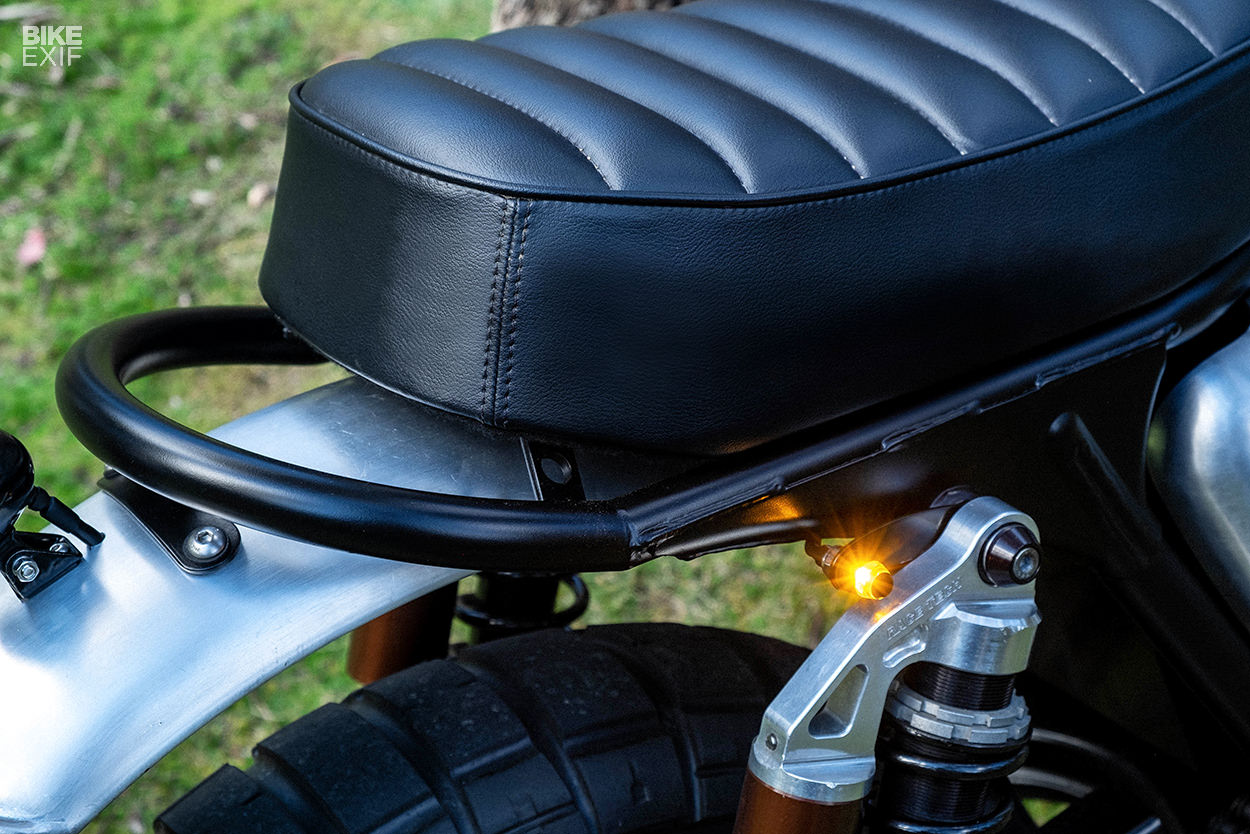

He then handed the bike over to a friend: Paul at Drifter Bikes. Paul welded up the final loop, fabricated a seat pan, and added braces to mount it to. He even incorporated a couple of sneaky bungie anchor points near the rear of the seat, for tying down luggage.

With a shortened rear end and seat, there was no more use for the passenger pegs—so they were binned. And since the bike was destined for proper off-road use, Jim opted for a vinyl seat cover that he could hose down easily (Tasmania can get a little muddy).

Mean and Green: A 2014 Triumph Scrambler custom tuned for performance

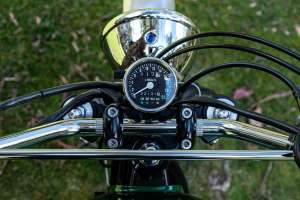

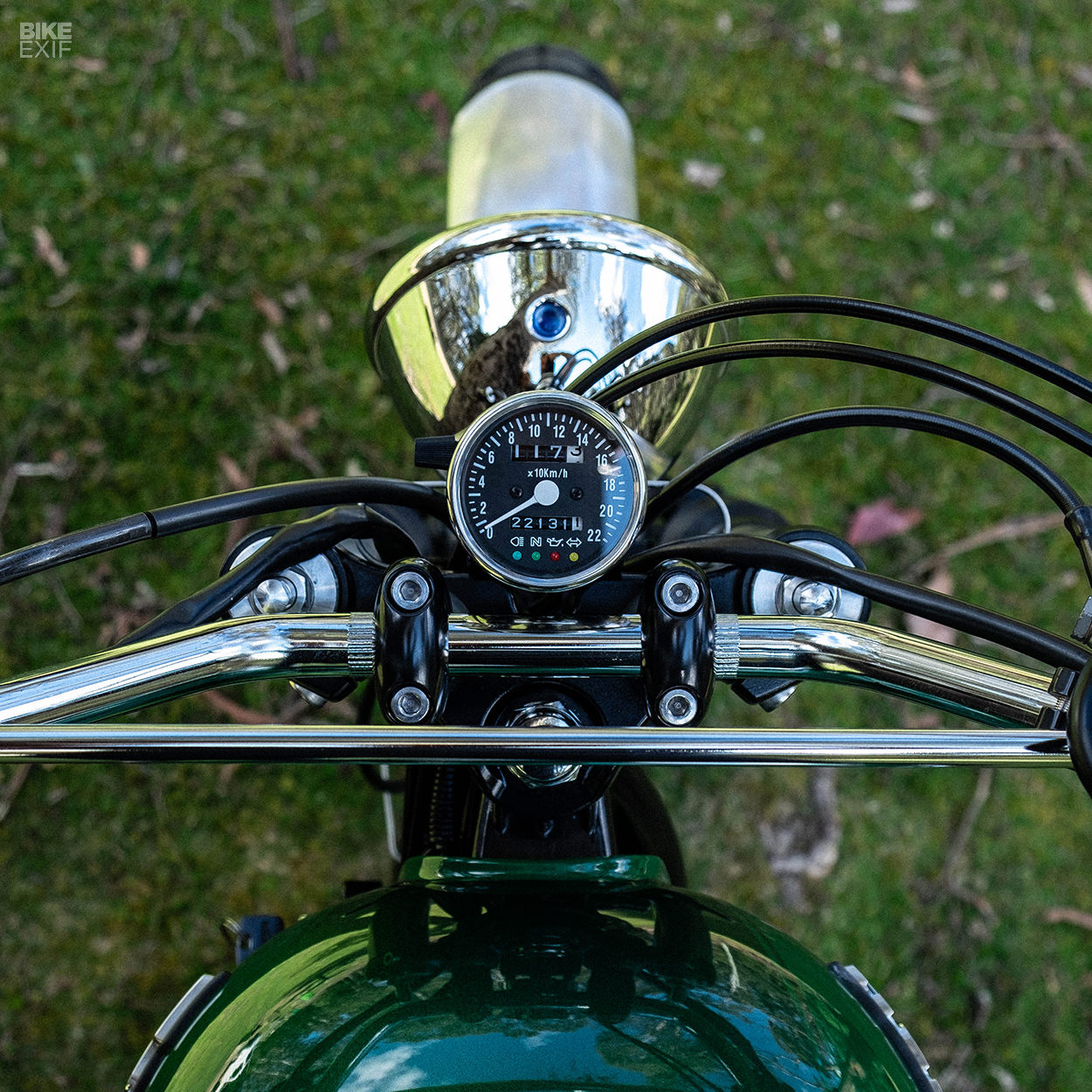

Jim’s Scrambler was now just a few more tweaks away from perfection—starting with a set of aluminum fenders and side covers. He also installed vintage MX bars, a Motion Pro throttle, new cables, a new speedo and a set of Motogadget blinkers.

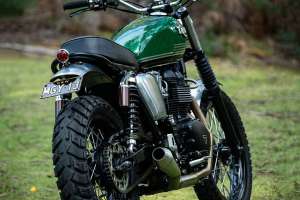

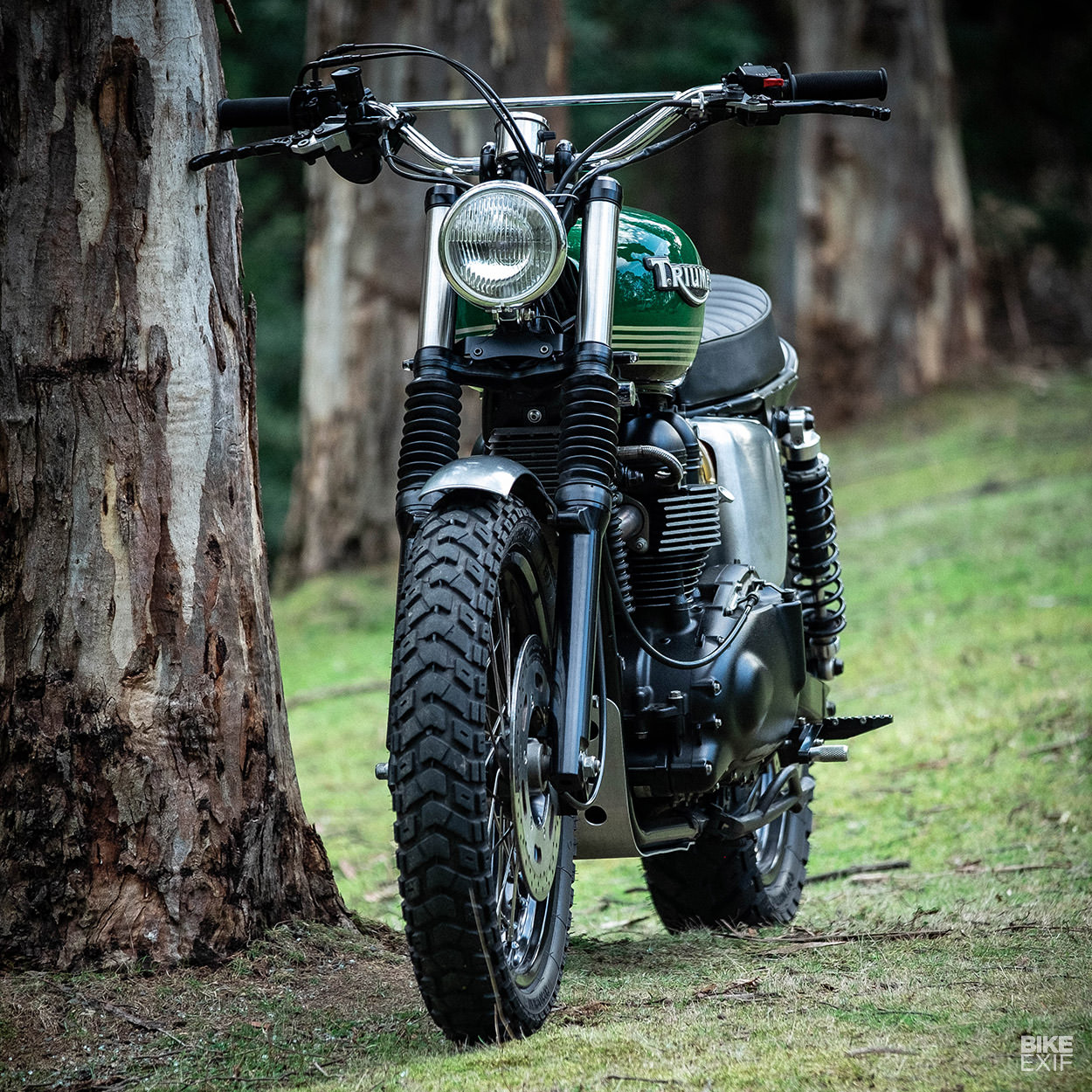

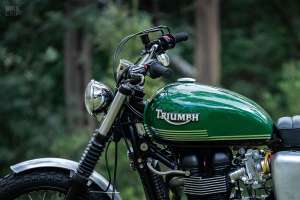

The tail light’s from Motone, and the headlight’s a no-namer off eBay. Jim thought the fork uppers looked a bit spindly after he removed the stock headlight brackets, so he sleeved them in stainless tubing to beef them up.

Mean and Green: A 2014 Triumph Scrambler custom tuned for performance
But it was the paint that Jim lost the most sleep over. “I’d spent the best part of the past five years deciding what to do with the tank, drawing up designs then changing my mind the next day.”

“The inspiration for this color ended up coming from my old 1970 Suzuki TS250 and good old British racing green, so this color sits somewhere between the two.”

Mean and Green: A 2014 Triumph Scrambler custom tuned for performance

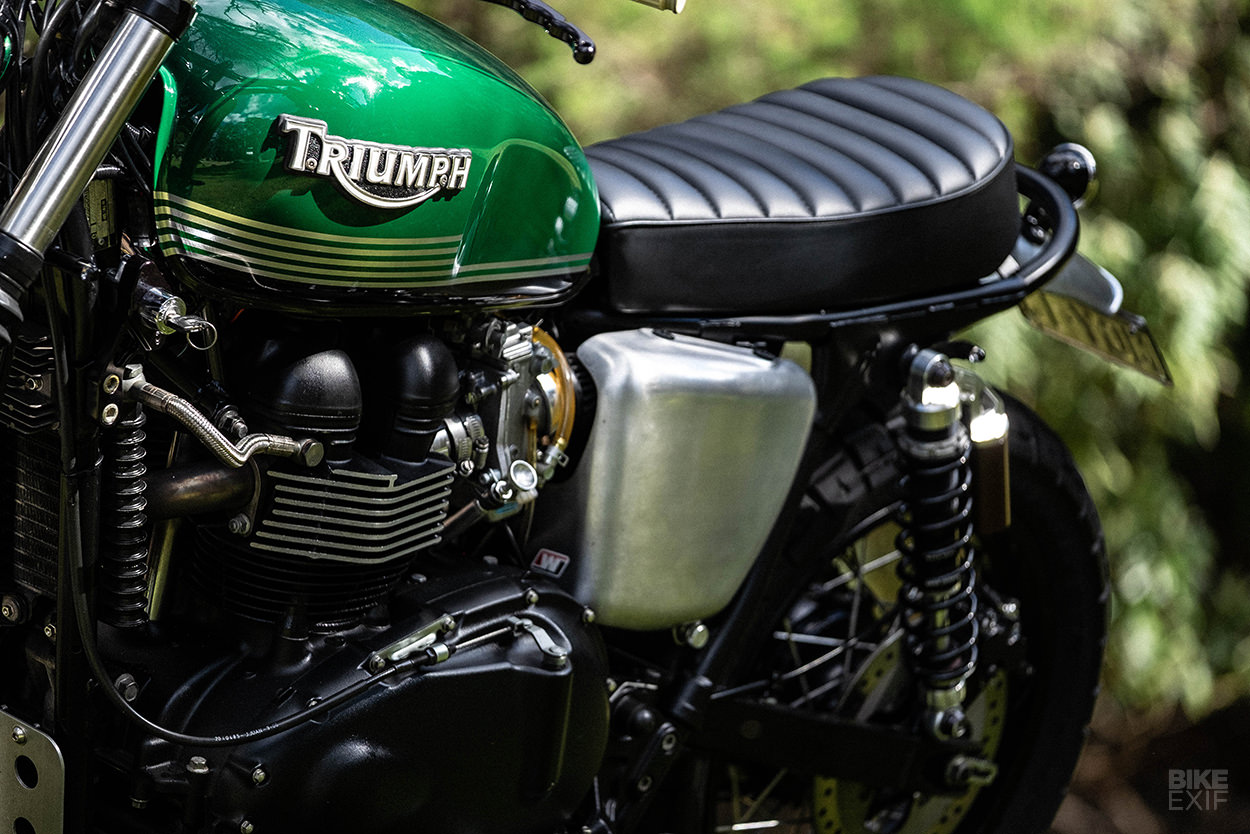

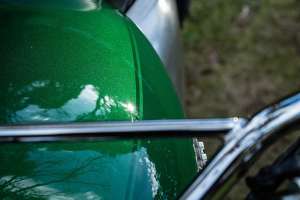

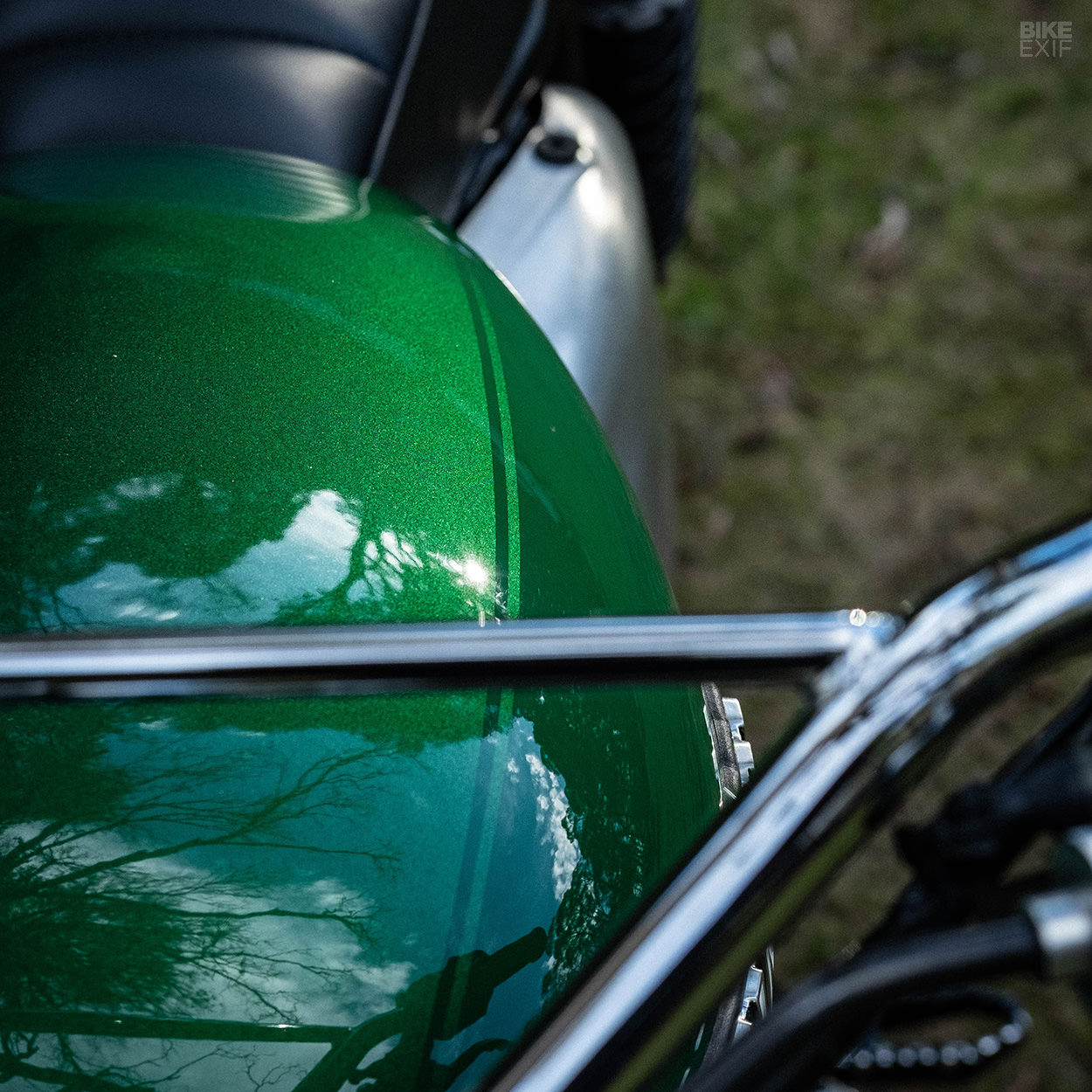

The final livery looks simple, but it’s actually pretty complex. Applied by Sam at Colourfuel, it starts with flat green on the sides, with chrome paint strips that match the fins on the engine. To slim the tank down visually, pearl was added to the top, and solid black sections to the bottom. The execution is flawless, giving this scrambler that period-correct feel Jim was after.

The bike’s a much better ride now too. “It now handles as good as I want,” says Jim, “and has power and performance that no Scrambler has any right to have.”

Mean and Green: A 2014 Triumph Scrambler custom tuned for performance
“Midrange is stonking, and with a top end that just keeps on going it’s now the bike with the big serving of ‘rat bag’ that I always wanted.”

Can you imagine anything better than tearing through the Tasmanian backcountry with this sled? Nope, neither can we.

Follow Jim Robinson on Instagram.
