EXCLUSIVE: David Sánchez has his hands pretty full. When we pressed him for details of the latest Bottpower project, we had to wait for his racing season to finish.
He’s an experienced race engineer, and that means doing time on the Superbike European Championship. But when he’s not travelling from circuit to circuit, he heads up one of Europe’s most advanced custom shops.

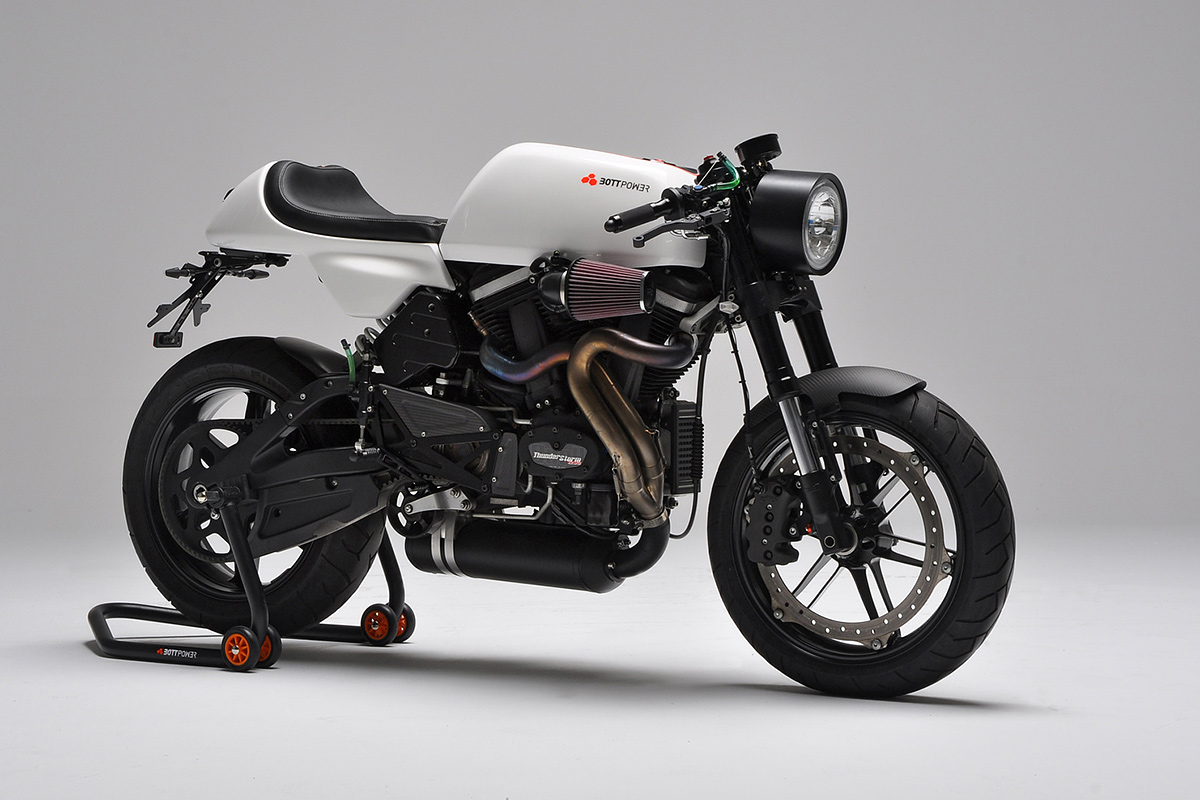

This breath of fresh air is the BOTT XC1. Like the Spanish outfit’s previous hit, the XR1, it’s a radical re-imagining of the Buell XB-series.
Why pick the Buell over a more classic choice? “I try to apply my racing experience to the bikes we create at Bottpower,” says David.
“That’s why Bottpower doesn’t follow the big trend of transforming old bikes. We feel more comfortable working with modern bikes. And we like to use technology like CAD design, finite element analysis and data analysis.”

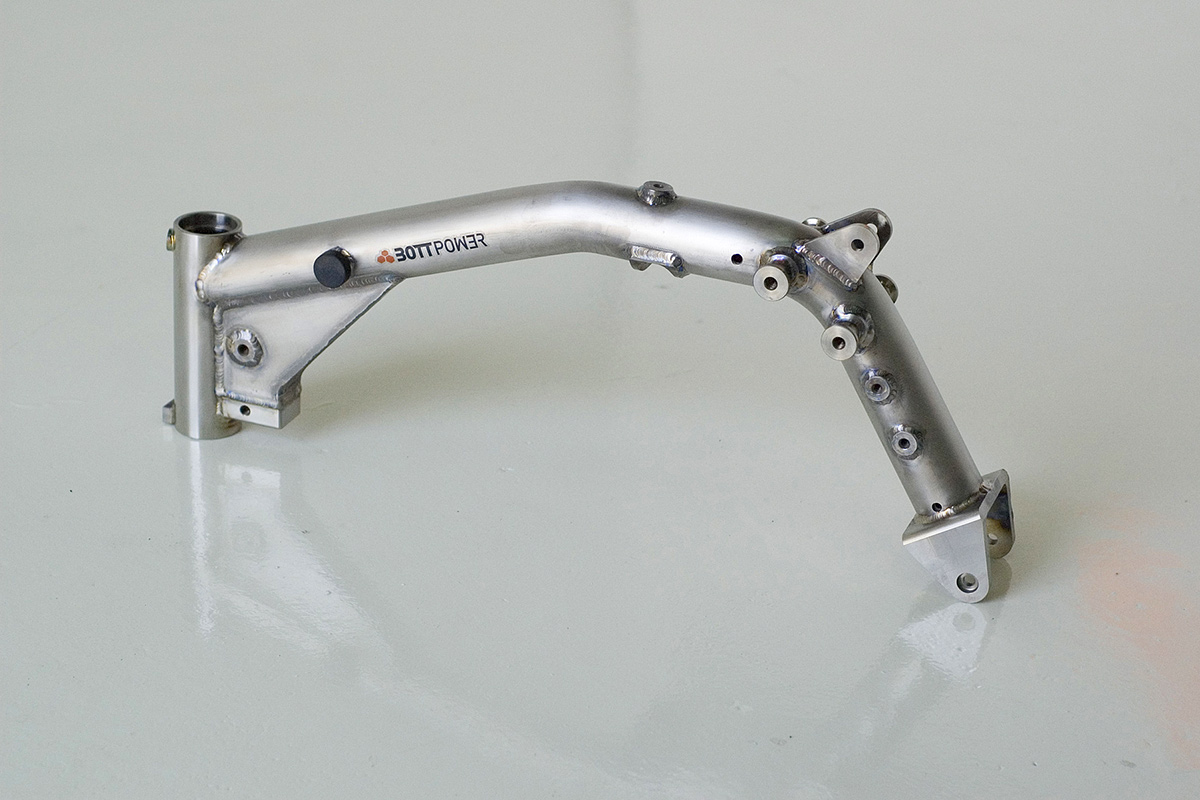

Anyone familiar with the XB will immediately note the absence of the Buell’s most dominant feature: the twin spar, fuel-carrying frame. Instead, the bike now straddles a line somewhere between classic and futuristic.
The real trick? The entire transformation is kit-based. Bottpower can sell you every component—with options and upgrades to tailor your project. And it’s all designed to be put together without having to cut or weld anything. (There’s even a nifty interface cable to plug the supplied Motogadget speedo into the original Buell loom.)

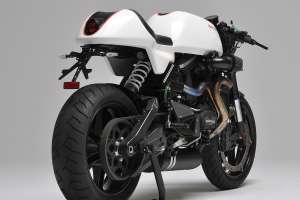

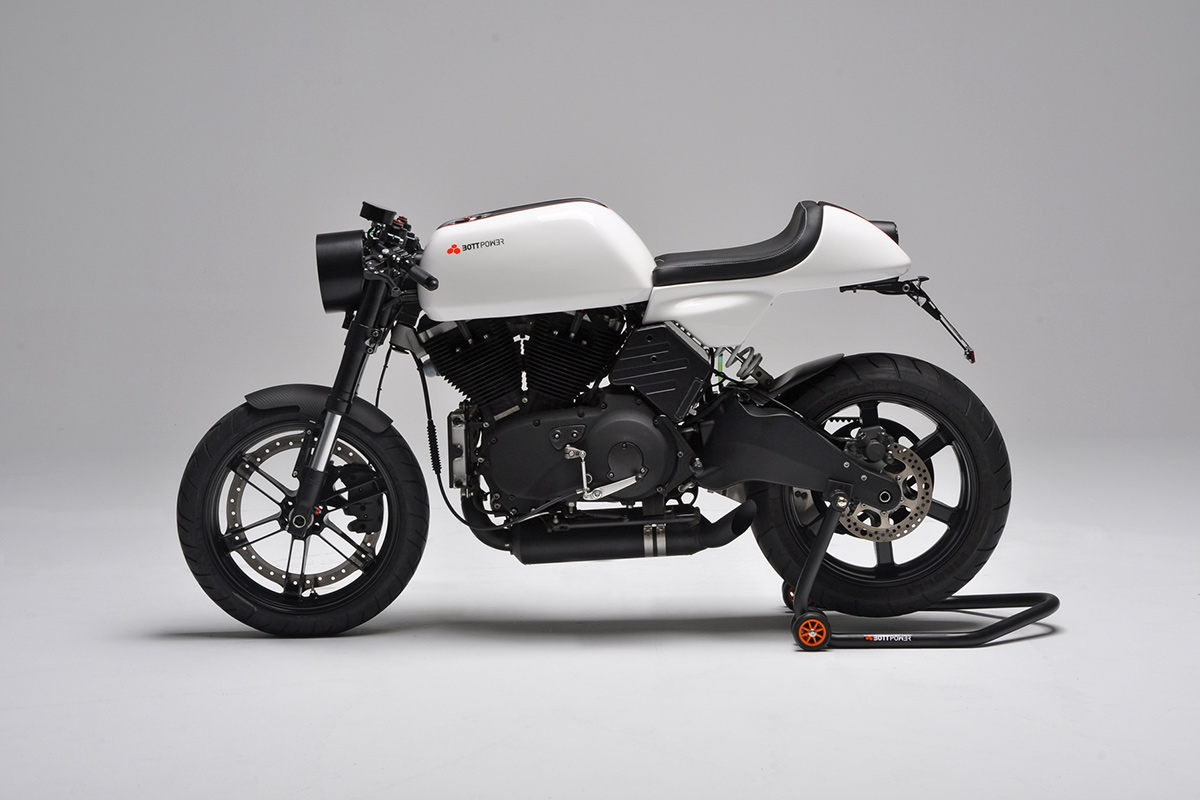

The base model here is a 2008 Buell XB12SS, retaining its wheels, suspension, swingarm and brakes.
David says there’s no change in geometry though: “It’s a geometry that works well. The bike is agile and fun to ride, so there was no reason to change it.”

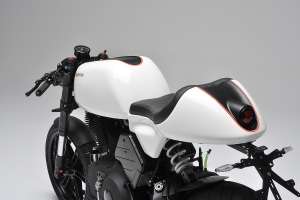

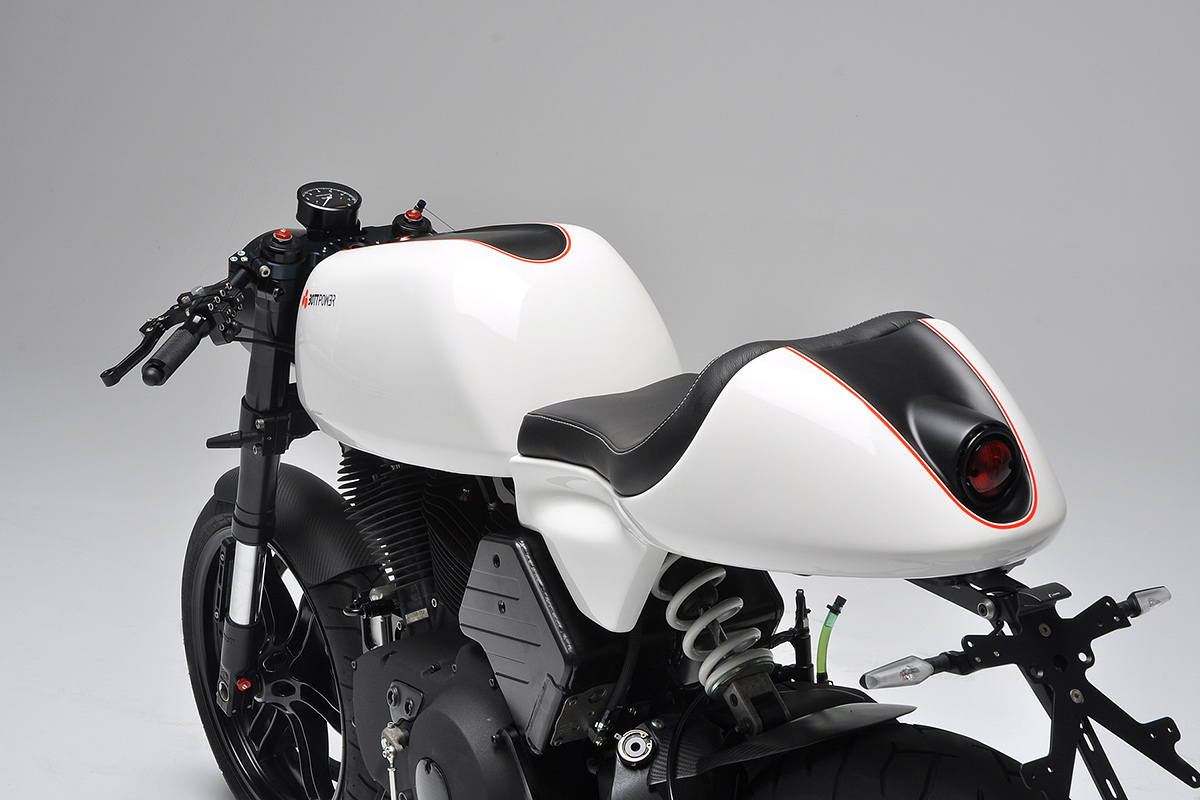

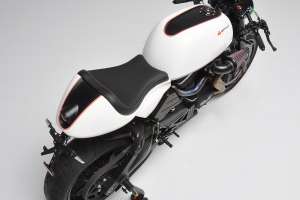

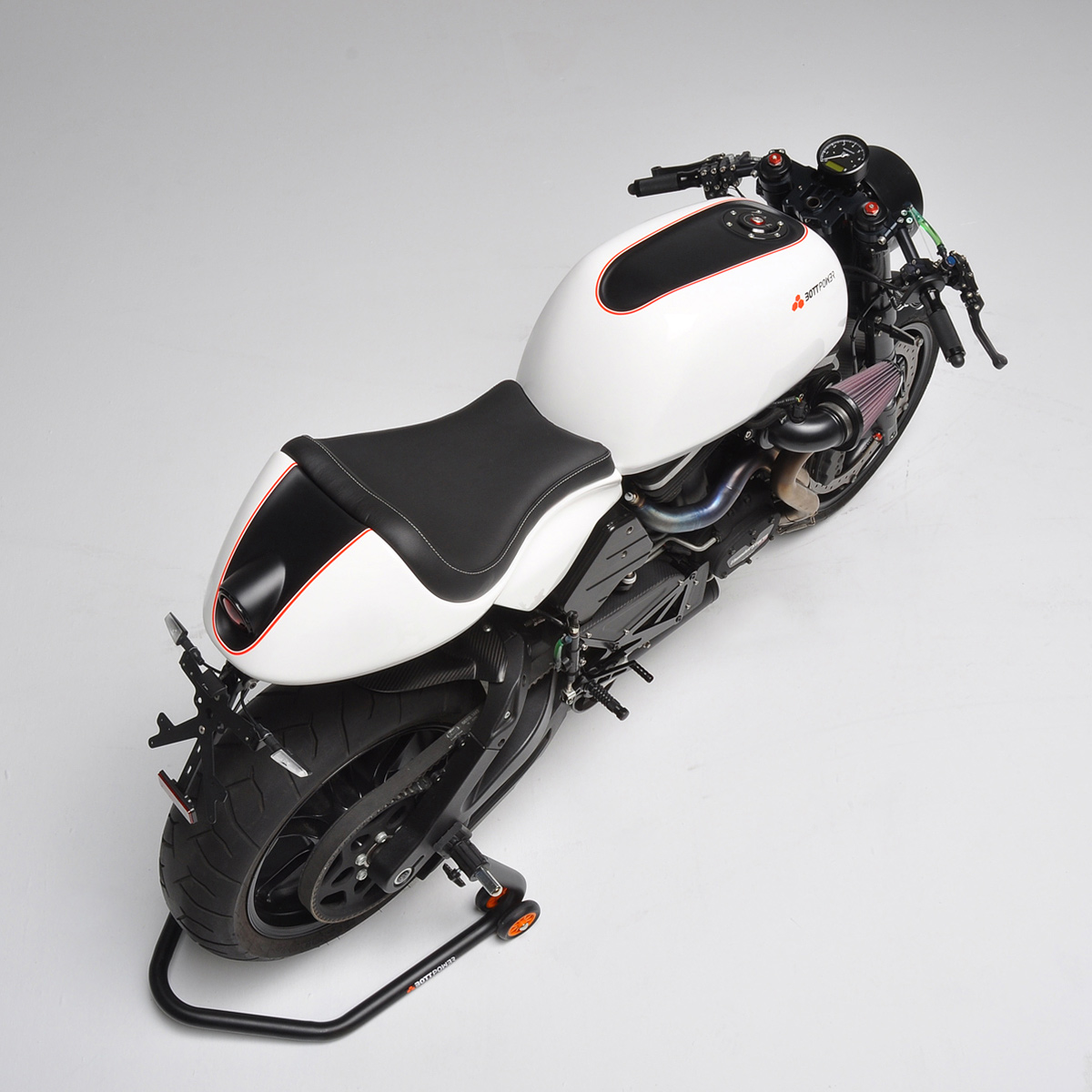

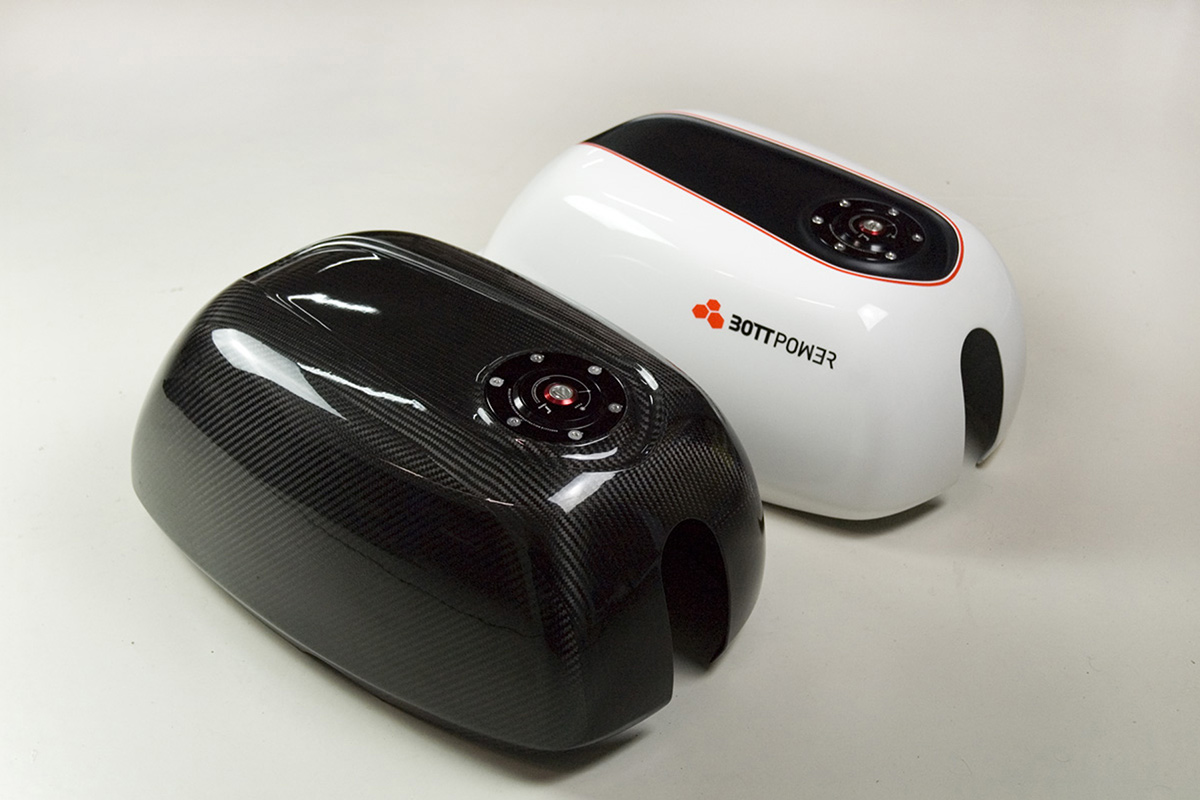

Dutch industrial designer Hugo van Waaijen designed the tank and seat, poring over CAD renderings until the lines were just perfect—right down to how light would bounce off the various contours.

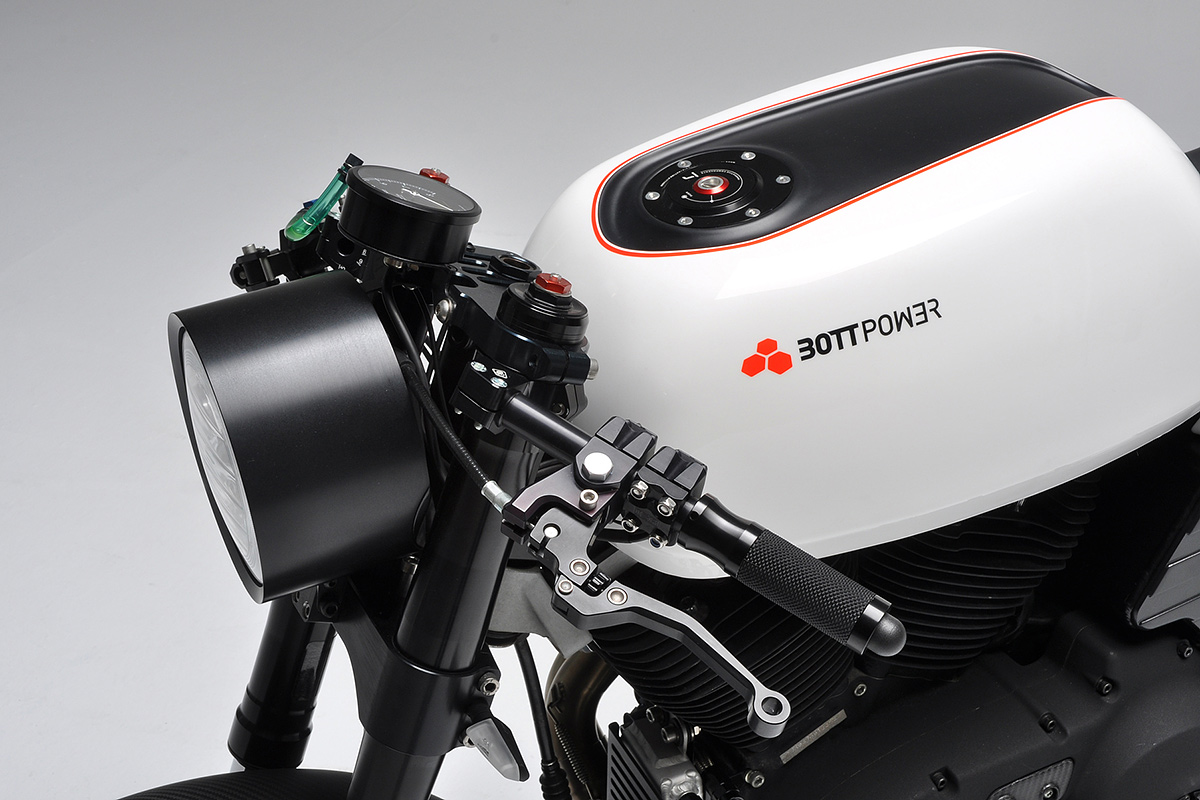

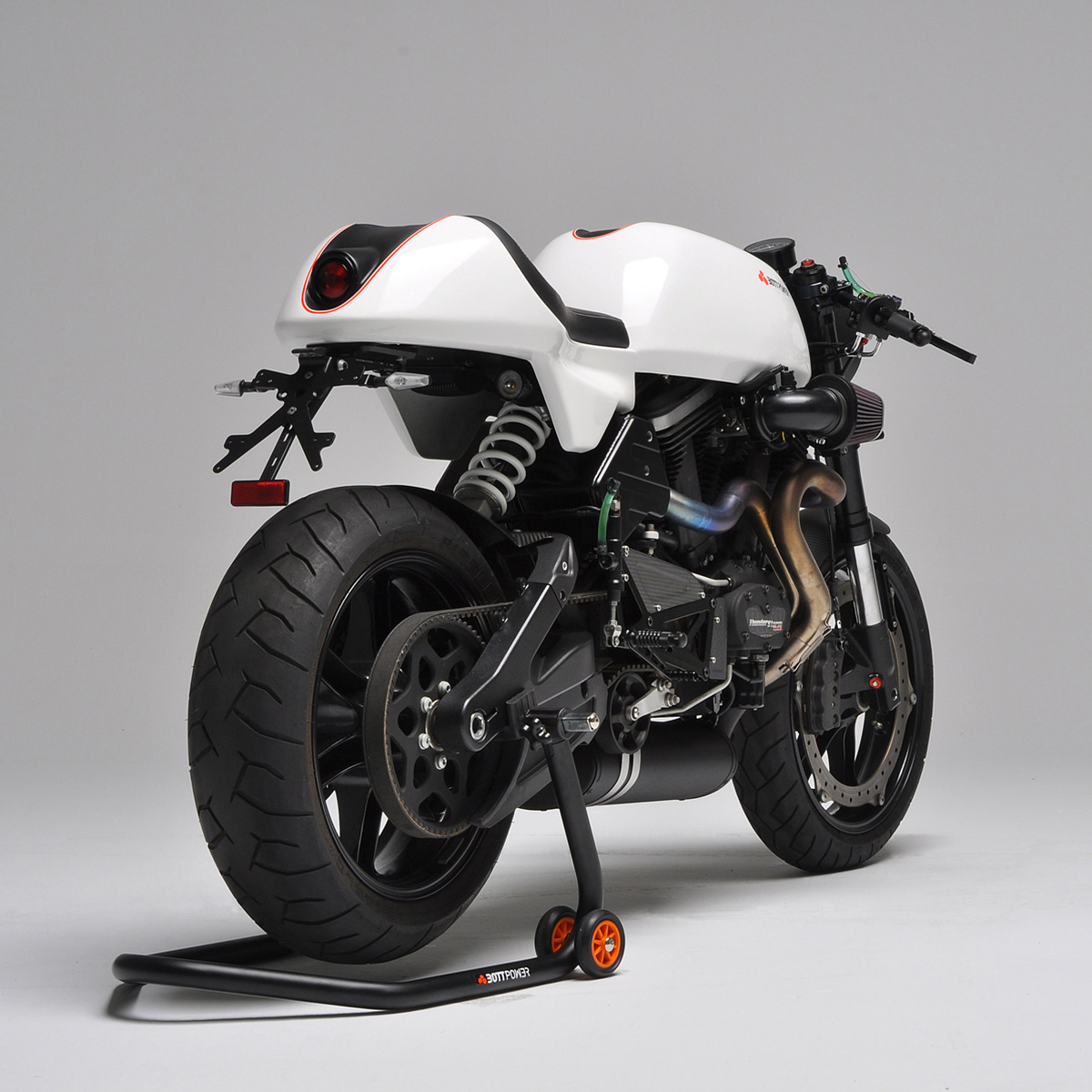

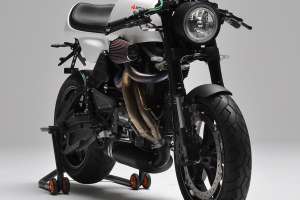

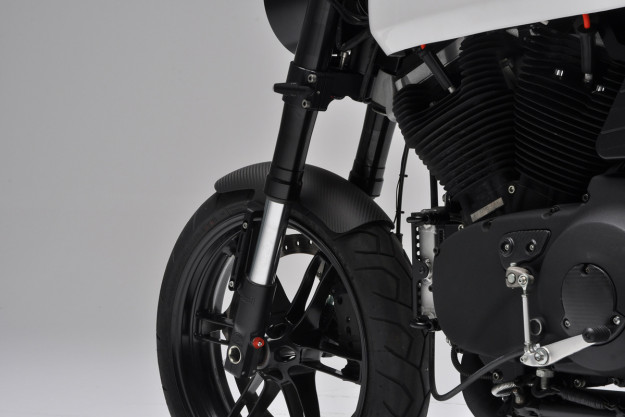

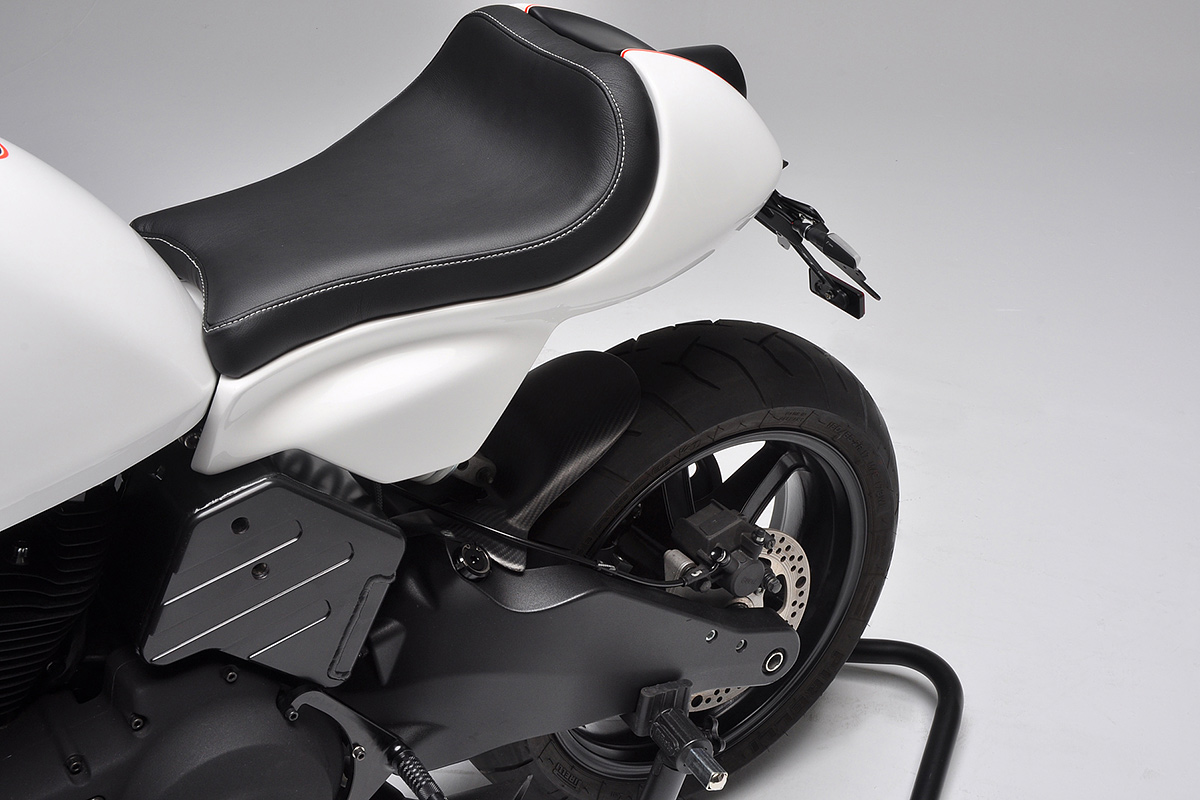

The seat sits on a bolt-on steel subframe that also hides a Lithium-ion battery. The front fender, headlight, integrated taillight, foot pegs and triple clamps are also Bottpower parts.

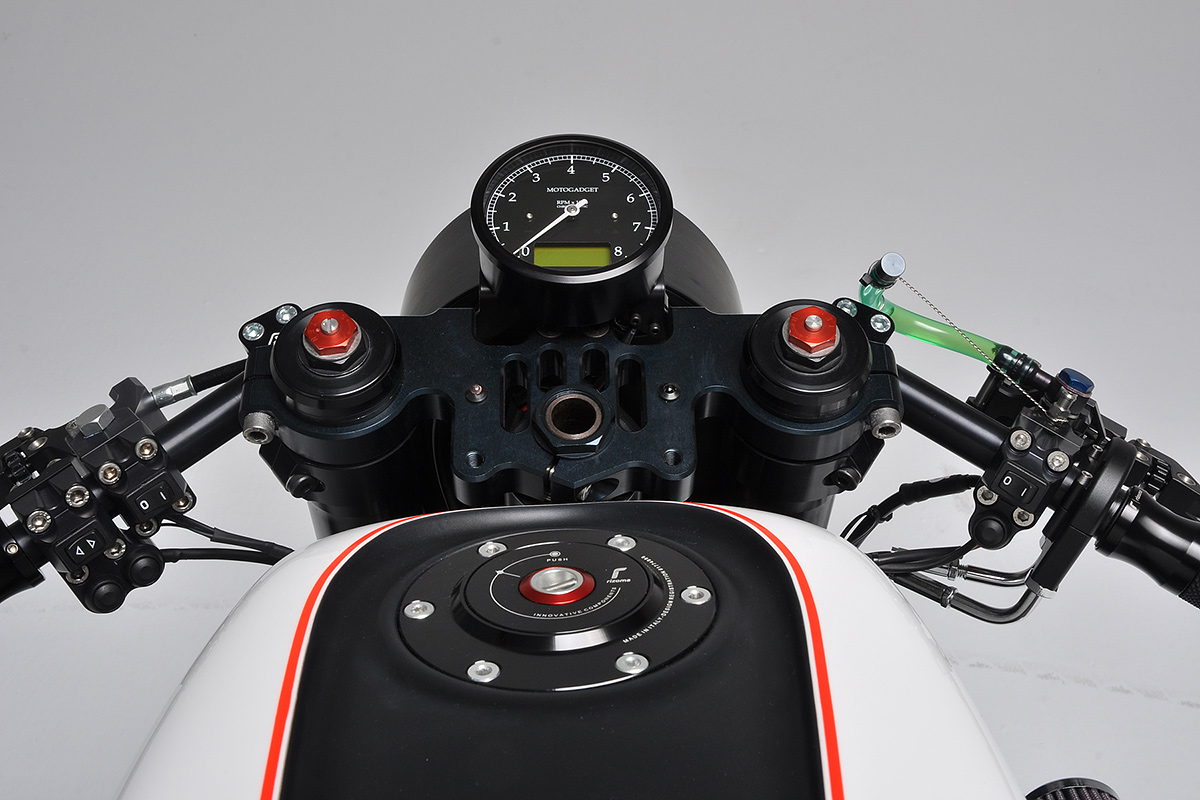

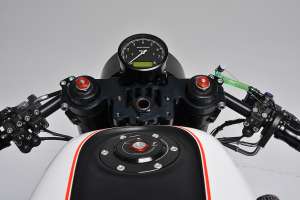

This particular XC1’s been treated to a Motogadget keyless ignition too. “We see this bike as a modern cafe racer,” explains David, “so we want it to have modern components.”

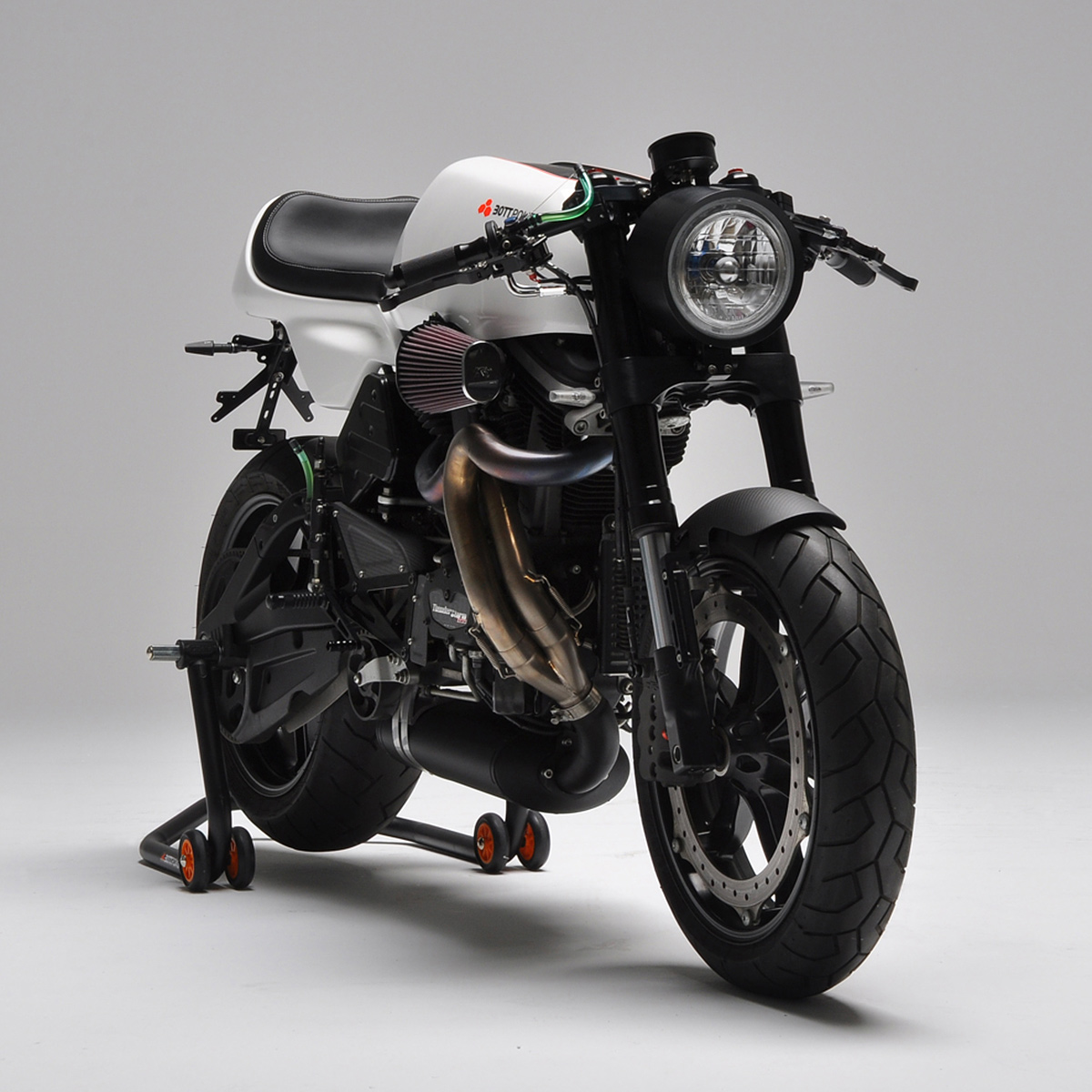

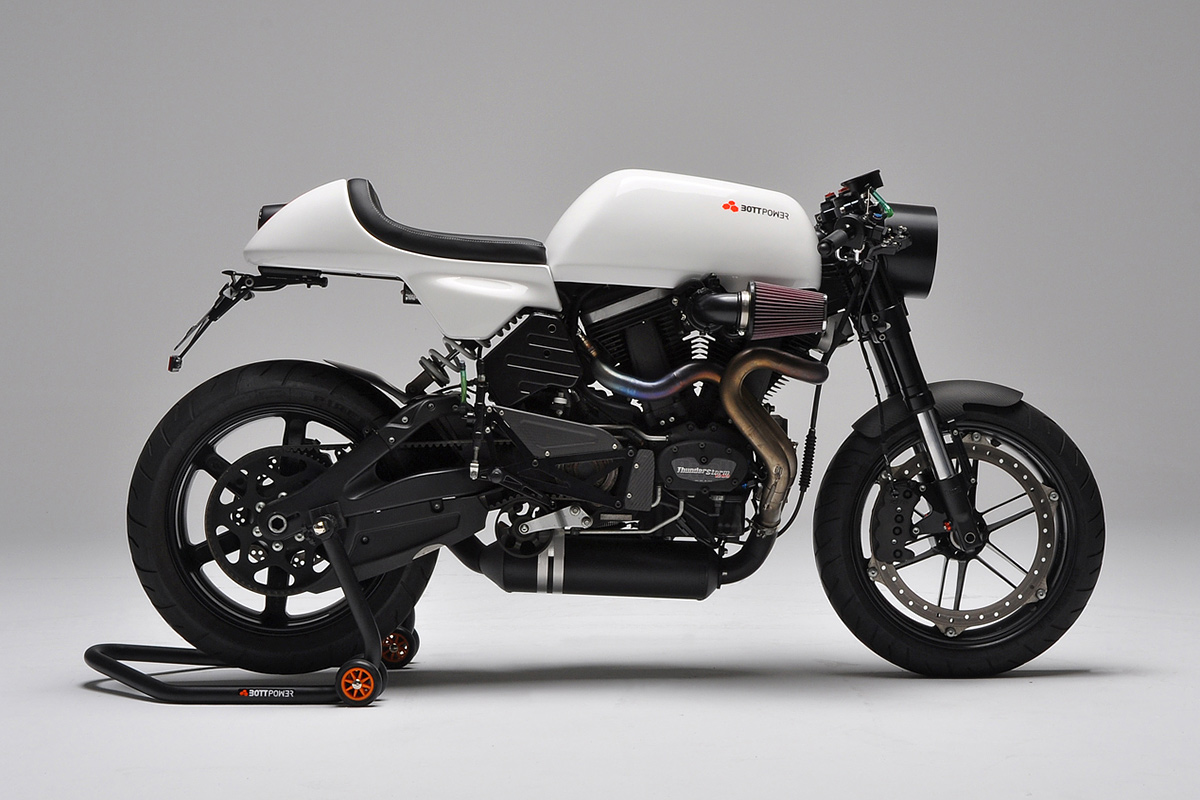

Another major workaround is the positioning of the air intake. The stock intake sits in the way of the new frame, so Bottpower have rotated the throttle body and fitted a side-mounted intake with a K&N filter.
This setup—along with a set of titanium headers, a Torque Hammer silencer and remap of the ECU—has squeezed another 10HP out of the Buell. It’s now pushing 95HP to the back wheel, in a package that weighs 20kg less than stock.
Now, could someone please send us a blank check, and let us loose in the Bottpower online store?
