Honda CB450 by Dime City

Honda CB450

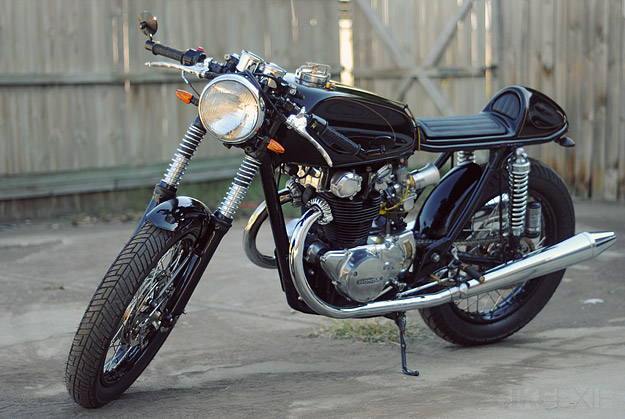

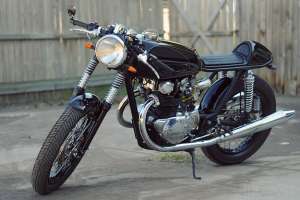

EXCLUSIVE The kings of the CB450 café racer are the guys at Dime City Cycles in Florida, who we’ve featured before. They’ll be getting considerably wider exposure soon, because this latest bike will be starring in the new Discovery HD Theater series Café Racer TV. The images here were shot especially for Bike EXIF and reveal a machine that started life as 1968 CB450, but has been heavily reworked. Substantial engine mods include ceramic coated and overbored pistons, a port and polish, custom cams and Dyna electronic ignition, while stepped headers and Norton Commando mufflers free up the breathing. A deep, luxurious color scheme of black and brass provides the show to match the go, with a nod to the Steampunk look without going overboard. There’s a one-up, hand tooled seat, a custom indented tank, 7″ light with visor, and a sweet Dime City ‘Manx’ rear end.

According to According to DCC’s Jason Michaels and Herm Narciso, “The vision behind the Brass Café is one of purity, both in style and heritage. Dime City pursues classic forms in metalworking, paying respect to the builders of the 50s and 60s.” They hope to “inspire a renewed interest in the motorcycle as the ultimate expression of form and function,” and given the Discovery Channel’s clout, they might succeed. A sweet bike like the Brass Café should prove to the average viewer that there’s more to custom motorcycles than the antics of the Teutuls.

Specification
1968 CB450 Donor
TIG welded and closed all factory joints on the frame; added DCC rear steel hoop and custom lower race swing-arm brace

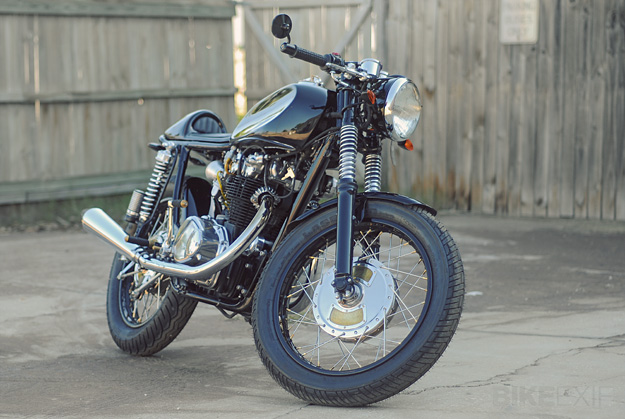

Custom vented front drum hub w/ race stay
Metzler tire mounted on stock CB450 18″ wheel powder coated gloss black
Chopped and lowered standard CB450 front fender
DCC “Manx” Headlight bucket with integrated blinker mounts
Tomaselli/DCC spade levers & clip-ons
Smoothed triple tree with lowered 2.5″ gauges

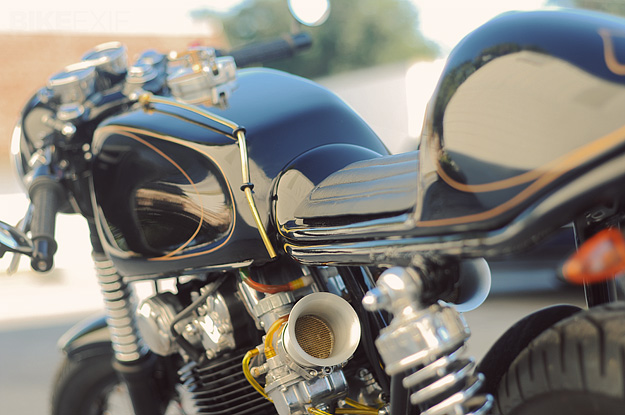

DCC “Manx” vintage racer fuel tank
DCC “Manx” cowl and seat w/ rear steel hoop

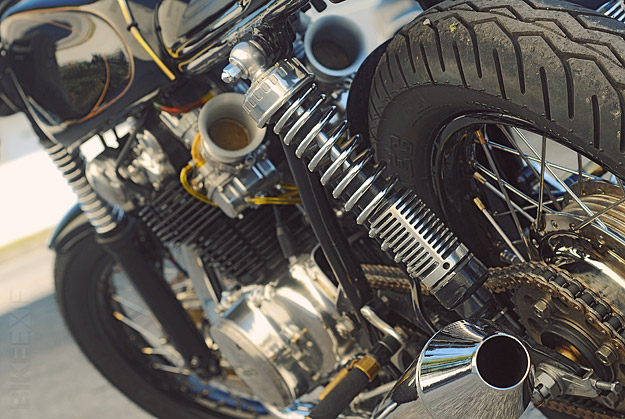

Completely reworked engine: ceramic coated, overbore pistons, ported & polished, custom CAMS, Dyna electronic ignition
Mikuni 32MM race carburetors
Hand built DCC rearsets and linkage system & hand spun brass pegs and kick pedal by Rev. Jim Goodrich
DCC “Manx” swingarm mounted rear fender
DCC Custom 1.5″ stepped headers & exhaust w/ Norton Commando mufflers
Gas charged rear race reservoir dampers
Custom vented rear hub w/ hand made brake aluminum stay
Stock CB450 18″ rear wheel powder coated gloss black w/ Metzler tire
Pinstriping by: Liza aka; Von Dutch’s Daughter
Powdercoating by: Brothers Powdercoating
Hand Nickel Plating and Chroming by: Jota @ Metal Refinishing

Honda CB450
Honda CB450
Honda CB450
Honda CB450

  • Sportster Cafe

    I saw a CB350 with a Bennelli Mojave tank that these guys did, very nice! I like that they don’t over do it, but nice little touches, like the gas cap.

  • Sportster Cafe

    One bad thing about this TV show, Cafes will be the latest trend, that the trendy will use and abuse, then through away! Leaving those of us who liked them before they were in wondering, what happened?!

  • Warren Smith

    Hey Sportster Cafe, I was getting all excited about this show until you dead on assessed the situation…yeah, your right-the chopper shows put bankers on hard-tail Harleys. Now they’ll all be switching to CB’s, XS’s, and Bonnies wearing pudd’in basins and Belstaff jackets!

  • Harry Farquhar

    I for one am looking forward to this new program. All those chopper shows didn’t hurt the industry in general or custom builders in particular at all.
    If anything it got more people out of cages and in the wind. Likewise there will be no down side to having what many will insist on referring to as trendy poser wannabies appearing on our roads aboard Cafe Racers. As long as they ride responsibly and represent my sport in a positive manner it can only help the industry.

  • Lew

    I’ve gotta agree with Harry Farquhar, choppers have been way overdone, but their industry has been massively boosted by TV shows. Big bore American V-twins deserve their place, but they are by no means the only custom bikes, and most people outside of the industry don’t realize this.

  • Evan3000

    Very cool Bike..

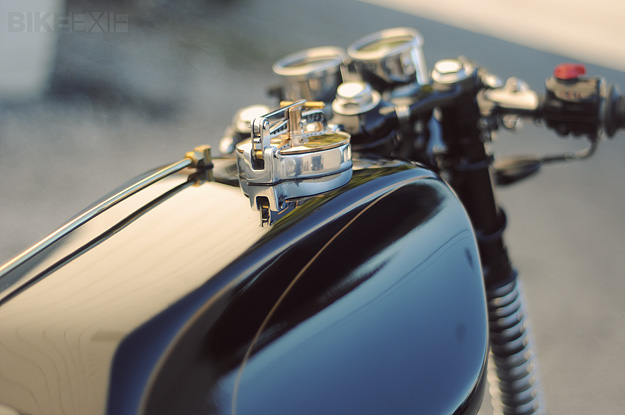

    Does anyone know what fuel cap that is?
