This lovely Triton is the latest from Loaded Gun Customs, the Delaware-based shop run by Kevin Dunworth. The story begins with a phone call from Dunworth’s tattoo artist brother, saying that the owner of the Baltimore Tattoo Museum wanted a Triton built. The starting point was to be an engine built by Arno St Denis, a legendary name in vintage Triumph circles.

Dunworth’s ears pricked up: St Denis was a machinist who worked on the engines of racer Hubert “Sonny” Routt. So he headed over to Baltimore to meet museum owner Chris Keaton, and examine the engine. It was pristine—“a true art piece,” says Dunworth. But the other parts for the build were bent, broken or rusty. “My heart sank,” recalls Dunworth. “But hey, at least he had that engine. Then from a box, he pulled the tank! That was all I needed to be re-energized.”

Triton motorcycle
Dunworth chose the best of the bent frames, took it back to his Delaware workship, and put it on the jig. “I mounted it, and got the rear seat-stays heated and back in line. I then dropped the swing arm pivot one inch, and set the head tube at 25 degrees. That seems to be the magic number for vintage-size wheels for all-around performance.” Dunworth did his best to get an 11- to 13-degree swing arm angle as well: “Everything with a vintage bike is a compromise of educated guesses!”

Triton motorcycle

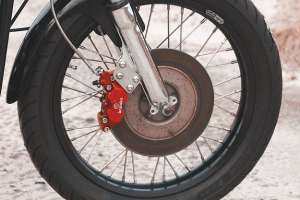

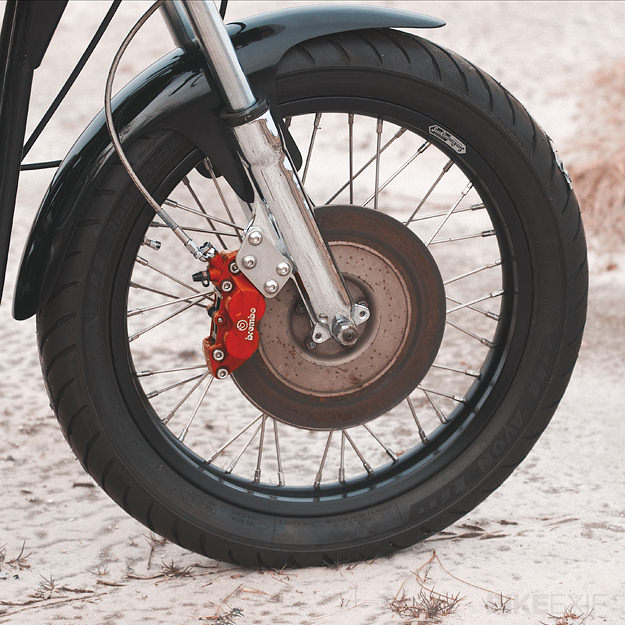

On went a set of Atlas triple trees, and Commando fork legs, with a Commando hub laced to 19” anodized Sun rims by Buchanan’s. A matching 18” on the rear is laced to a Triumph conical hub.

The engine went into the frame using Loaded Gun’s own Triton conversion plates. (“We like to tilt the engine just a bit more than some of the others on the market.” Mikuni carbs and beautifully flowed intake manifolds release the full Arno St Denis magic, which includes a lightened crank and dynamic balancing. The motor is around 830cc, Dunworth estimates, has had a port job, and is running 10:1 pistons and a modified valve train.

Triton motorcycle
“The primary machine work and the belt drive with polished clutch plate reveal that this is something special,” says Dunworth, “as well as a 60s bottom end with the ten-bolt head conversion. I like it because it most people just glance and say ‘cool,’ but the old dudes get down on one knee and start shaking their heads. At the Barber show, one guy said, “Did Arno do this engine? You know, what you got there is a real hot rod.”

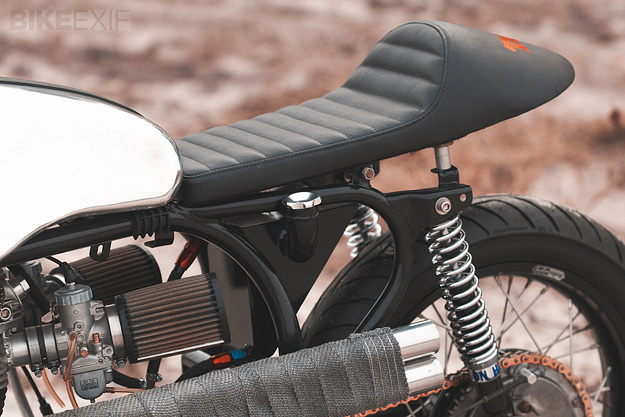

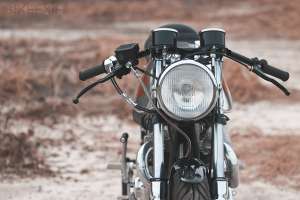

The seat pan was hand-made by Dunworth and sent to Florida for finishing. “I wanted to give a nod to the Manx style, but get her tail up in the air bit, Euro style. The cro-mo bars are from Lossa Engineering, and a Buell master cylinder operates on Brembo brakes stolen from a wrecked Ducati 916. Hagon shocks fill out the back, the cloth-wrapped plug wires are from NYC Choppers, and footrests are taken care of with Loaded Gun’s own rearsets. The grips are super-sticky Ariete GPs.

Triton motorcycle
The Triton is now Chris Keaton’s daily rider, used on the streets of Baltimore and the surrounding country roads, so Dunworth left much of the finish ‘raw.’ “The bike looked old and ridden as soon as we finished it.” And all the better for it, we’d say.

Head over to the Loaded Gun website to see more of Kevin Dunworth’s builds, and follow the progress of his builds on the Loaded Gun Facebook page.
