Vagabund V13: The Honda NX 650 meets 3D printing

Vagabund V13: A Honda NX 650 with 3D printed parts
There are some builders who have a very ‘freestyle’ approach, grinding and hammering away at metal until things look right. And then there are the builders who plan everything meticulously beforehand, getting the look and the fit millimeter-perfect—and using technology to the max.

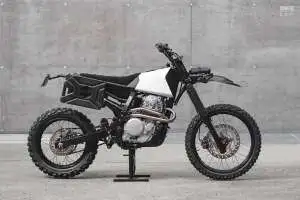

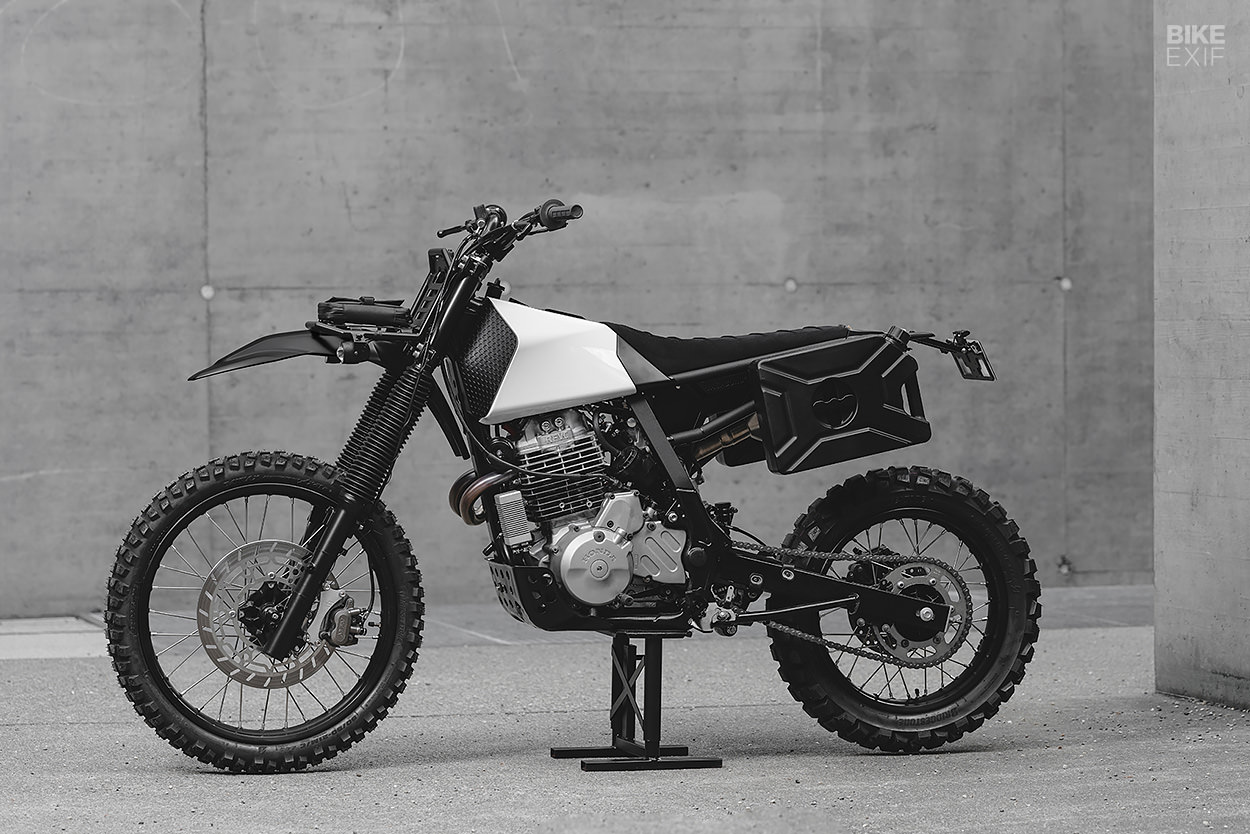

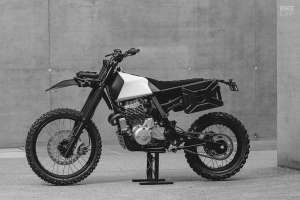

Paul Brauchart and Philipp Rabl of Austria’s Vagabund Moto fall into the modernist camp. Their output is precise rather than prodigious, and they’ve just finished the sleekest Honda NX650 Dominator we’ve ever seen.

Vagabund V13: A Honda NX 650 with 3D printed parts
“We were trying to generate a minimalist look while producing a fully functional ‘offroad’ bike,” Paul tells us. “Which meant having all the necessary parts for being street legal in Austria.”

That means a lot of compromise, but there’s little visible sign of it—aside from discreetly positioned legal necessities. “It was our own in-house project, but was standing in the corner for over two years because we didn’t have the time to build it,” Paul explains.

Vagabund V13: A Honda NX 650 with 3D printed parts
“We are really into the offroad/outdoor scene, but also love to build super clean bikes. With this NX650 we’ve tried to combine these two preferences.”

The donor is a 1991 model, and was in pretty good condition when Vagabund bought it. But that didn’t stop them from pouring a ton of work into it. “It took a stupid number of construction hours to produce the 3D-printed fuel tank alone, and a cohesive rear end.”

Vagabund V13: A Honda NX 650 with 3D printed parts

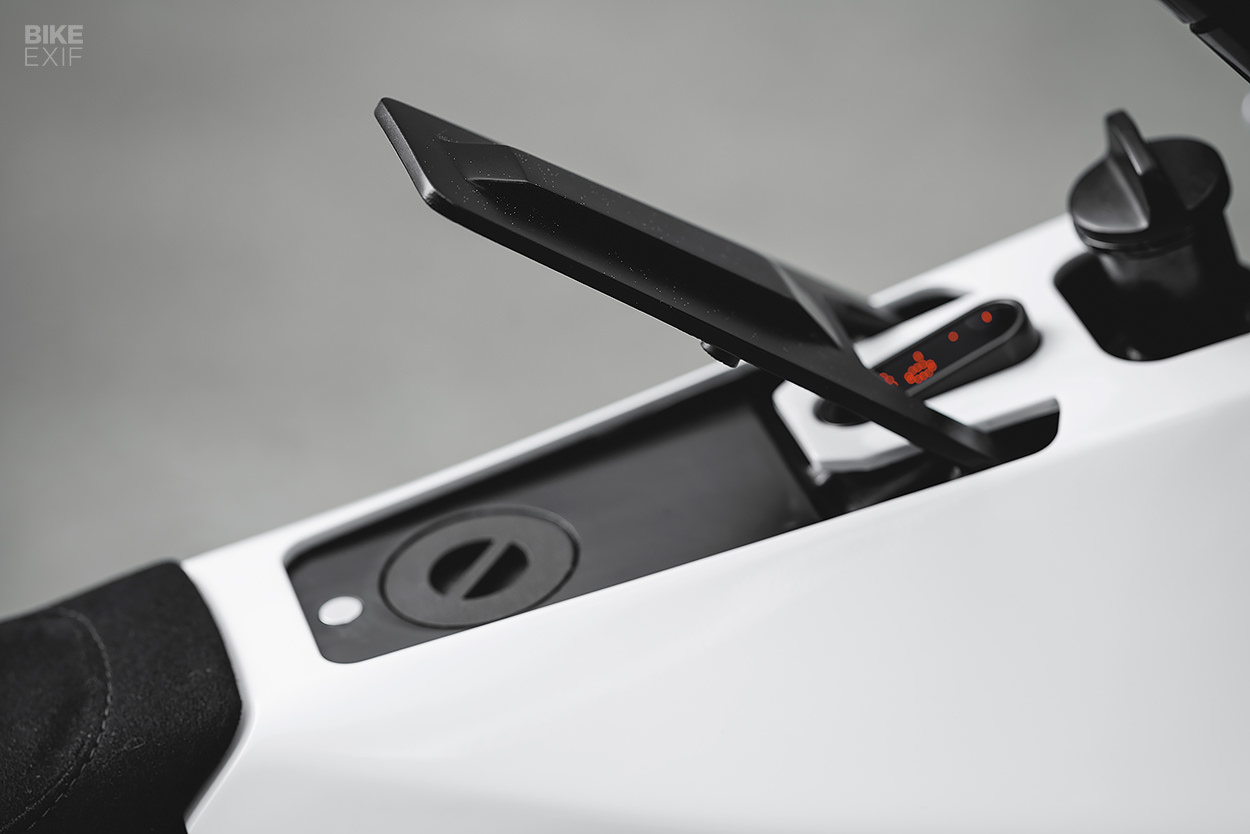

Vagabund have used Nylon PA12 3D printing material: it has a high tensile strength, plus good impact and fatigue resistance. The new tank, tail unit and air filter cover all use this material, along with select brackets and switchgear housings.

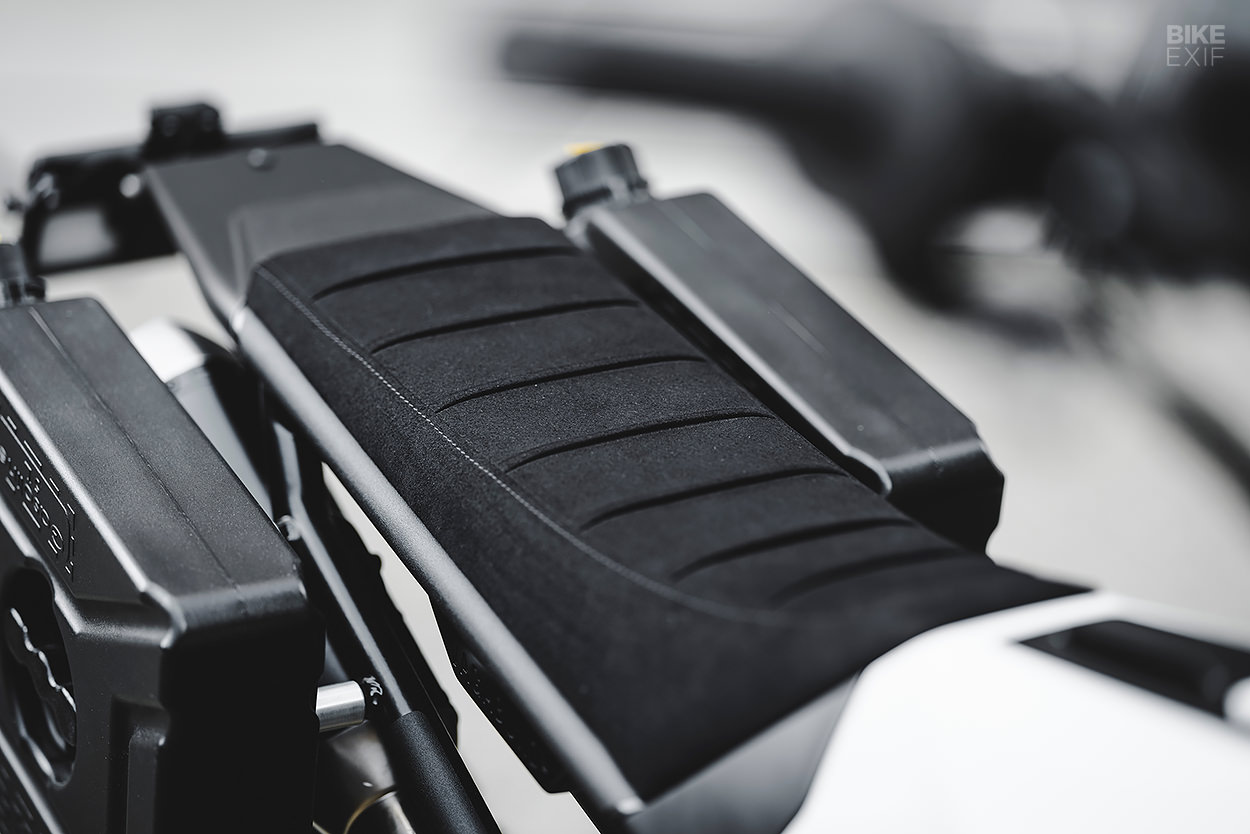

The seat has a grippy, durable Alcantara cover, pleated in a style that echoes modern motocross seats.

Vagabund V13: A Honda NX 650 with 3D printed parts
On a more traditional front, Vagabund have reconditioned the tough 644cc single, and crafted a new stainless steel exhaust system with a two-into-one collector and a modified Akrapovič muffler. There’s a new oil cooler from the German brand Off The Road, too.

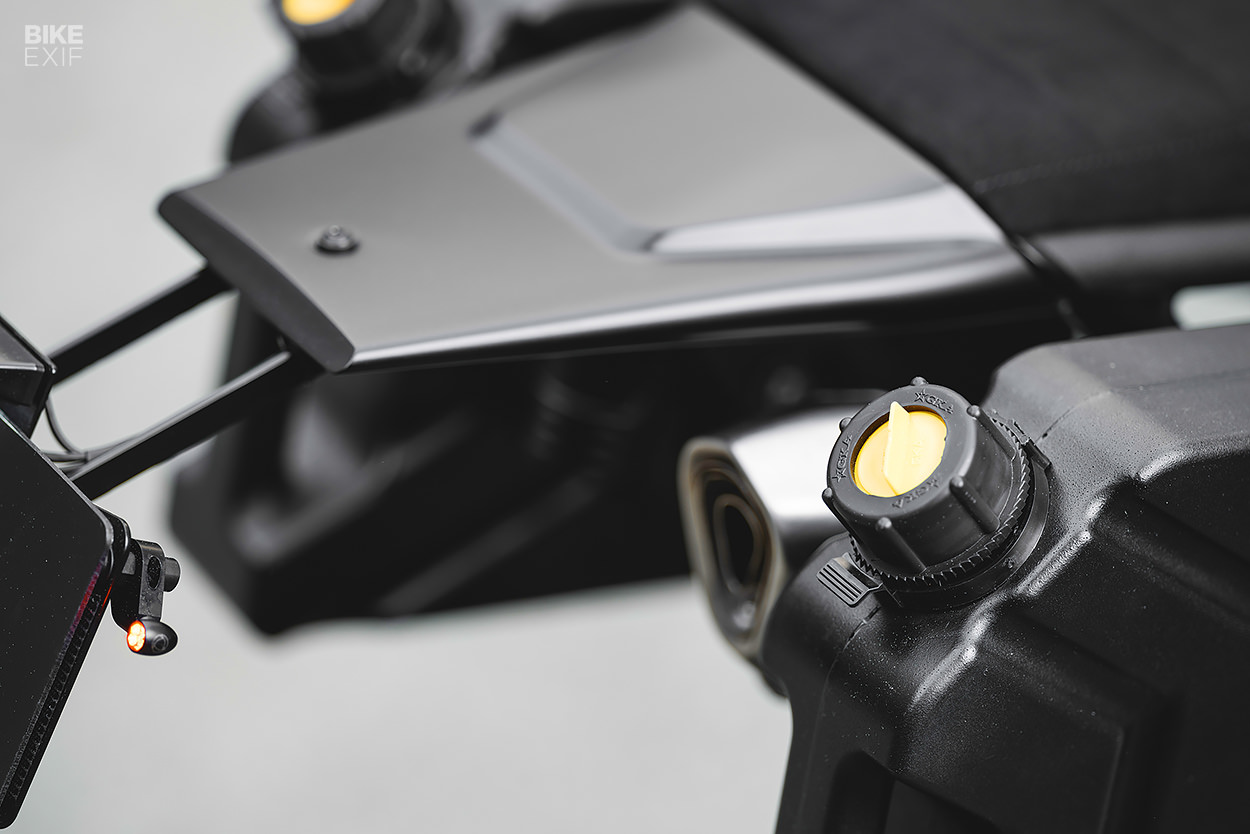

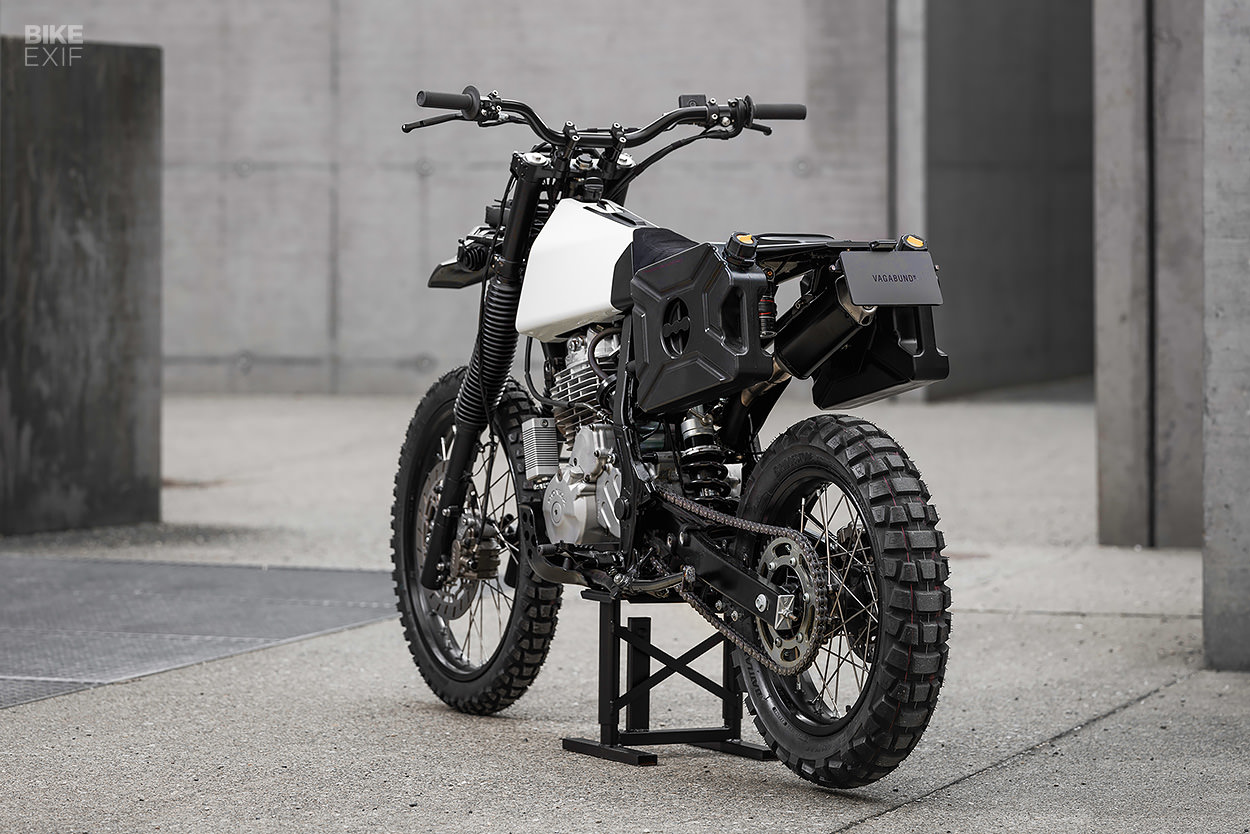

A pair of GKA fuel canisters are attached to a custom made rack on the new rear subframe, to max out range on long distance rides. The Pro-Link suspension has been treated to a new Wilbers shock and the whole setup is very slick indeed.

Vagabund V13: A Honda NX 650 with 3D printed parts
The wheels have been powder coated, fitted with new stainless spokes, and shod with fresh Bridgestone Battlax rubber. The 265 mm stock brake disc has been upgraded to a 320mm brake rotor at the front.

Right above it is a Husqvarna TC85 front fender, and above that you’ll find a custom made cargo rack that fulfils multiple roles.

Vagabund V13: A Honda NX 650 with 3D printed parts

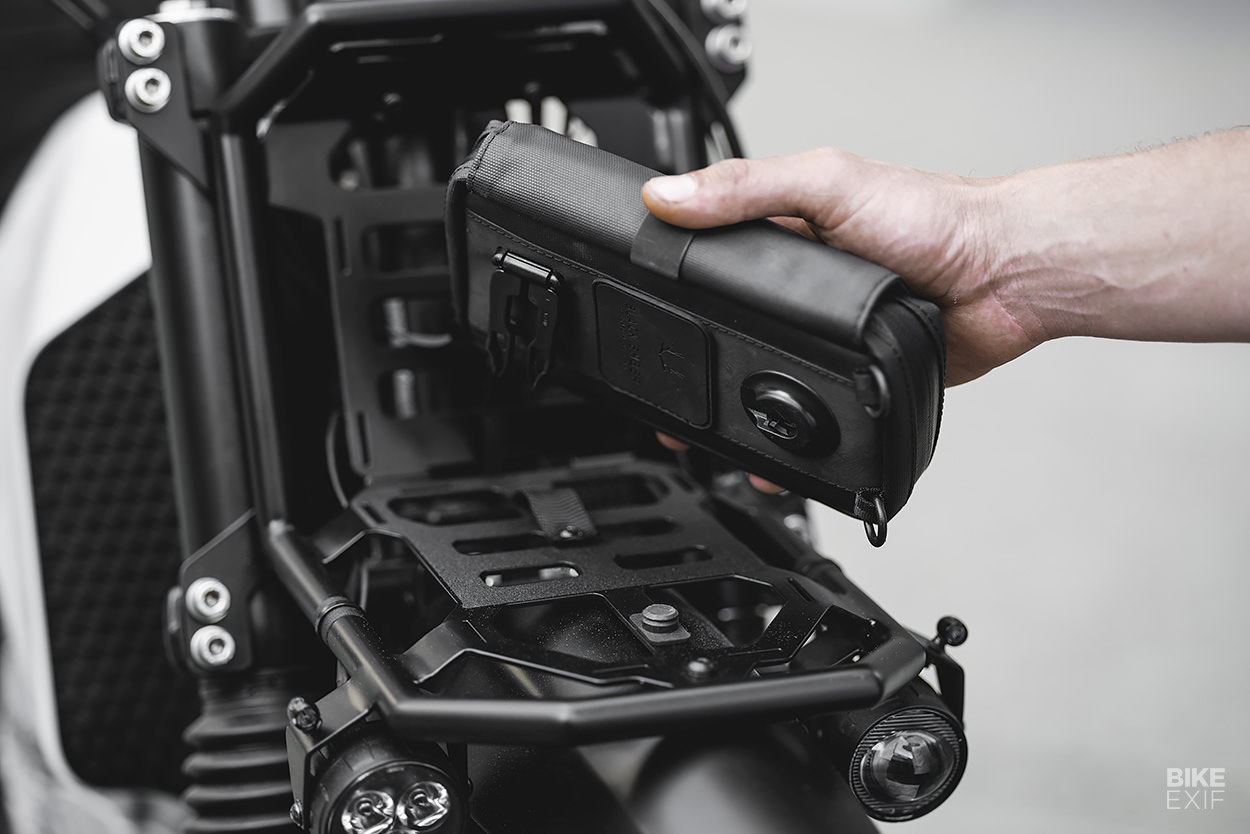

It holds a pair of tiny Kellermann Atto turn signals, Highsider headlight assemblies, and a nifty quick release mounting system for a weatherproof Black Ember storage bag.

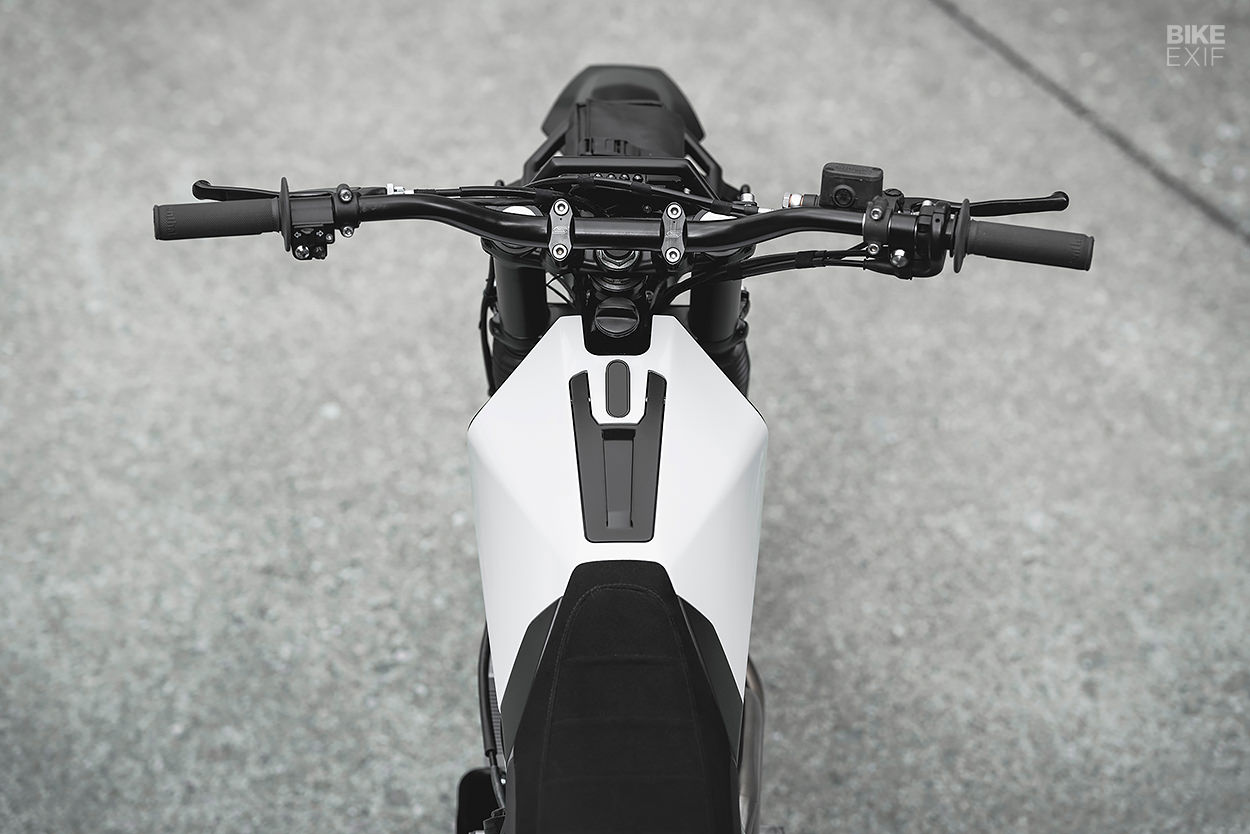

The cockpit is all new too, with a custom top yoke and bars, and new controls and levers. The electrics are hooked up to a brand new wiring loom, which terminates in a Kellermann turn- and brake-light combo built into a custom made license plate holder.

Vagabund V13: A Honda NX 650 with 3D printed parts
We’re always fascinated to see what top workshops build when they’re not working to a commission, and ‘V13’ is proof that an open brief often delivers the best results. “We had absolutely no parameters on this project,” says Paul, “except to keep an eye on the budget.”

The proportions are absolutely spot on, and make us wonder if Honda could release an updated version of the much-loved Dommie with a similar vibe.

Vagabund V13: A Honda NX 650 with 3D printed parts
This one, however, now has a new owner—a chap who happened to be visiting the workshop and immediately fell in love with it.

Vagabund don’t built copies of bikes, but they’re keen to replicate the concept on a different offroad platform, such as a KTM or Husqvarna. We reckon they could be onto something here—especially if a kit of 3D printed parts is in the offing.

Vagabund Moto | Facebook | Instagram | Images by Stefan Leitner
