Duked: Ryan Stephen’s knockout custom KTM 690

Duked: Ryan Stephen’s knockout custom KTM 690
We don’t see many custom KTMs, but they tend to be spectacular—like Max Hazan’s supercharged art bike, or the two-wheel-drive monster built for REV’IT!

Upholding this fine tradition is a striking build from Ryan Stephen, which broke cover at the ‘Motorcycles as Art’ show at Sturgis earlier this year. Curated by famed photographer Michael Lichter, the 2017 show focused on younger builders—and it’s obvious that Ryan is a name to watch.

Duked: Ryan Stephen’s knockout custom KTM 690
By day, he’s a brake designer and test engineer for Hayes Brakes. In his spare time, he races supermoto and on ice, and provides engineering support to the Scheibe Racing/Hayes Brake BMW race team.

“I built the bike to test my skills, and push the limits of what I can do in my personal shop,” he tells us.

Duked: Ryan Stephen’s knockout custom KTM 690
Ryan lives in Racine, Wisconsin, about 30 miles south of Milwaukee. “In this area, with Harley and Indian in our backyard, motorcycles are in our bones,” he says. “Long winter nights and weekends are usually when the bike building happens, so it was a serious time crunch to get the KTM ready for the show.”

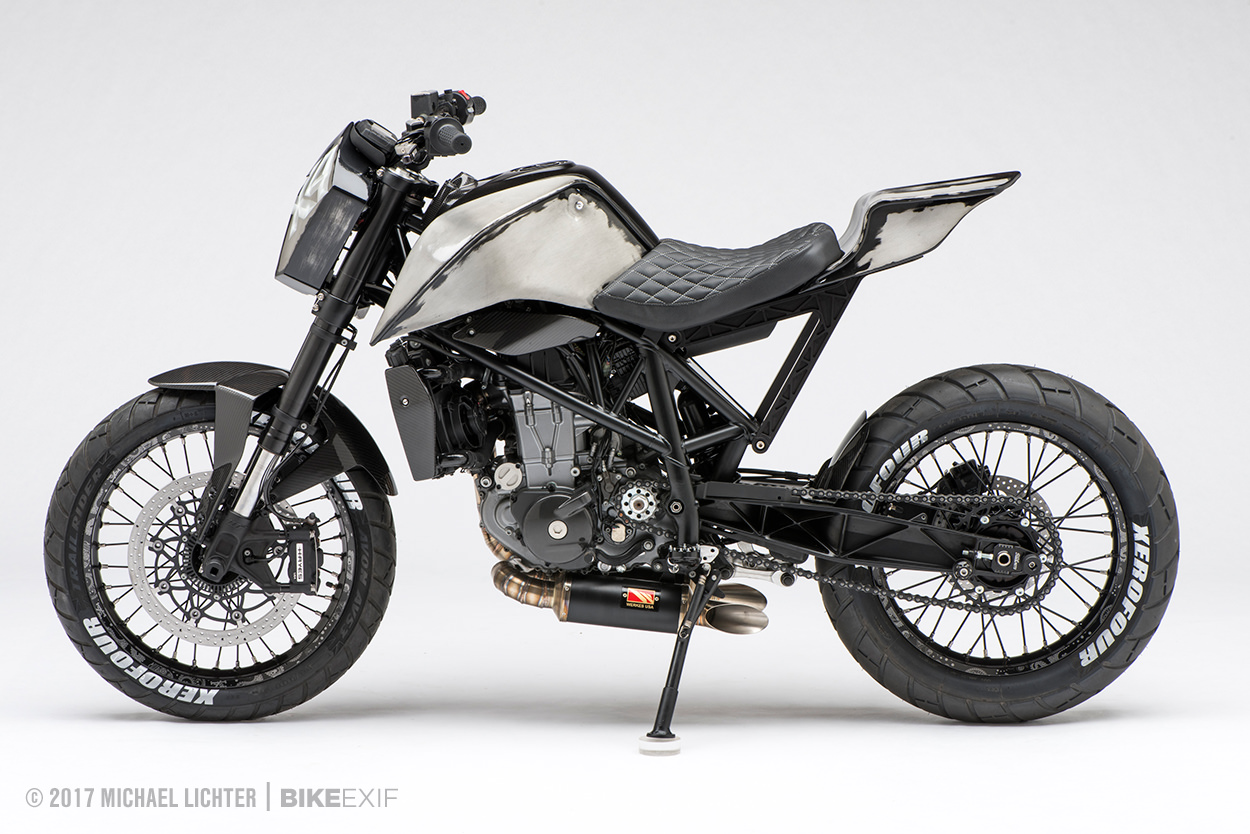

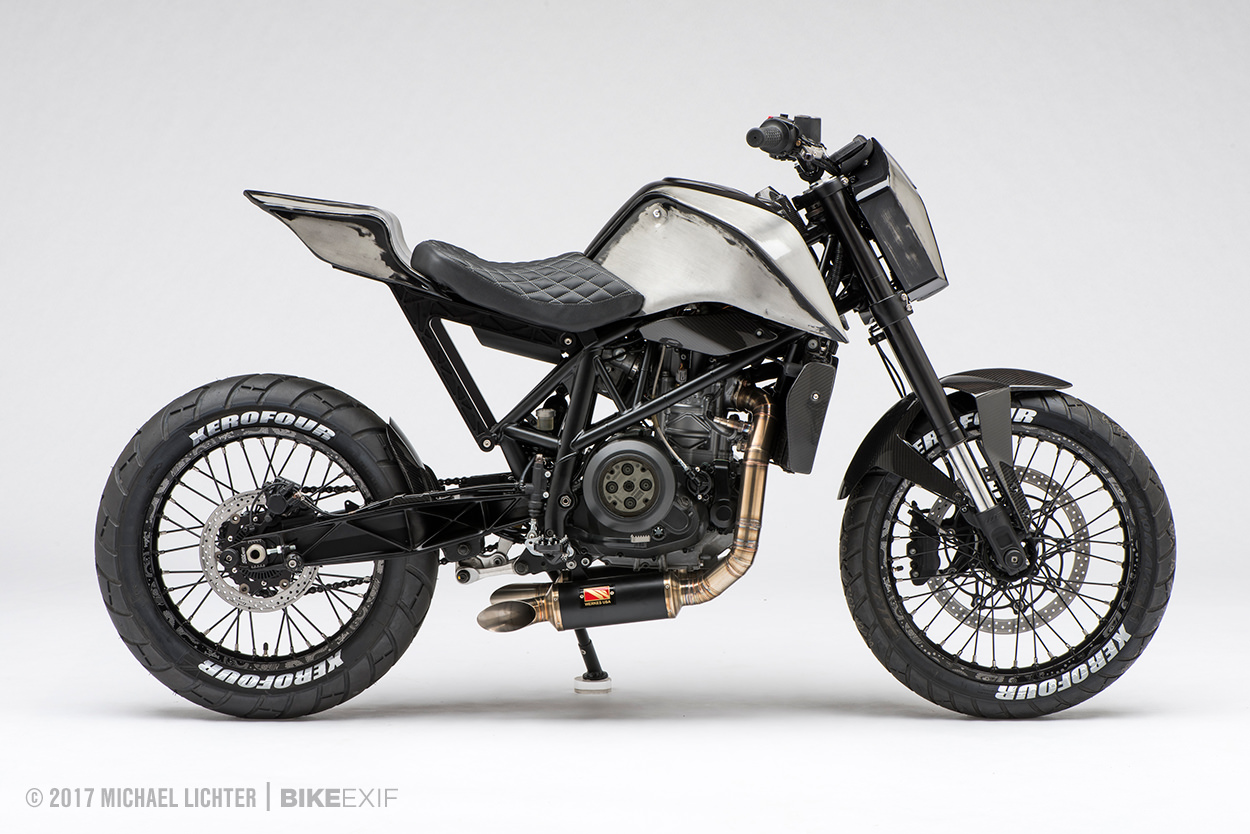

The bike is a 2015-spec 690 Duke, and the first KTM Ryan has owned. He drove five hours to pick it up form a retired gentleman, who had put 1,500 easy miles on it. And then he set out to build a ‘super fun’ street bike: “Something I could spend a few hours riding, and at the end of the day have a smile on my face.”

Duked: Ryan Stephen’s knockout custom KTM 690

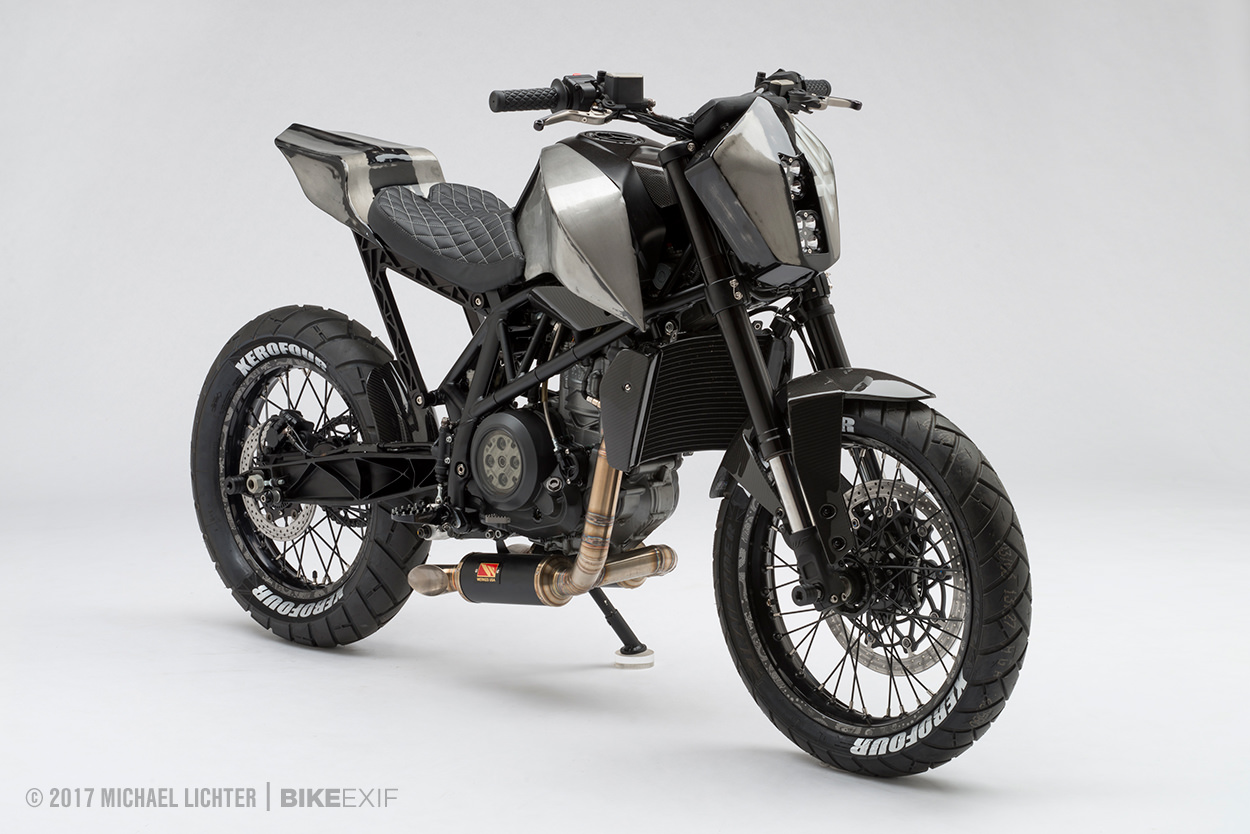

It’s a pretty extreme looking custom, but the functionality of the bike is unchanged. “With the occasional track day in mind, I wanted to keep 100% OEM reliability as well as fuel capacity,” says Ryan. “KTM did a great job on that already.”

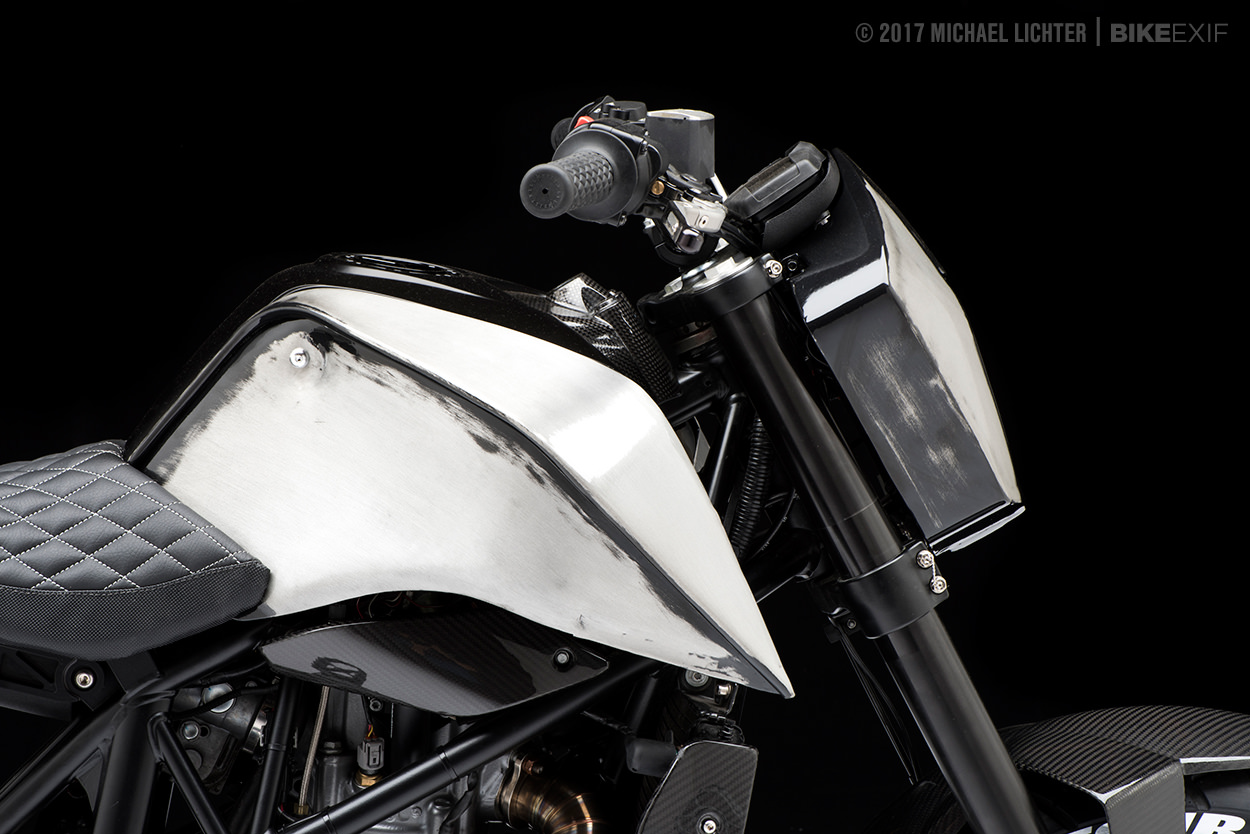

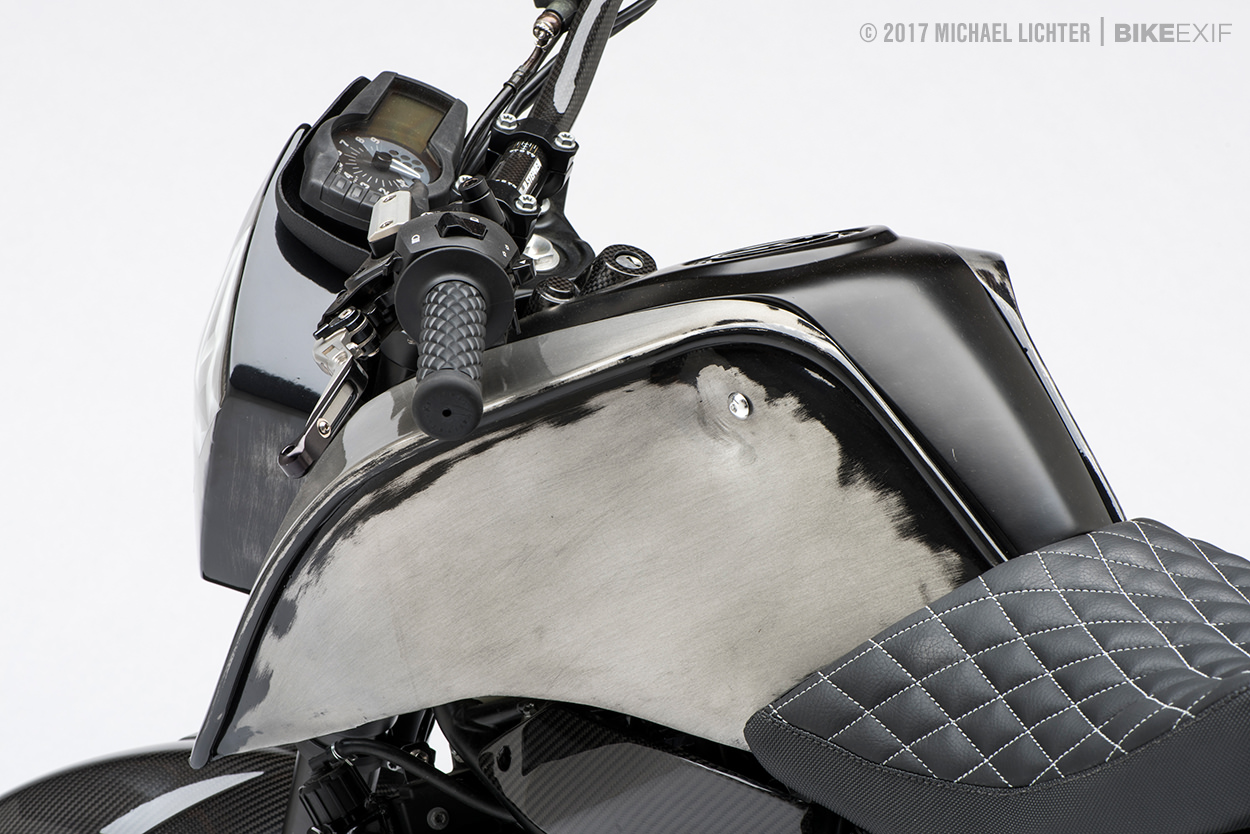

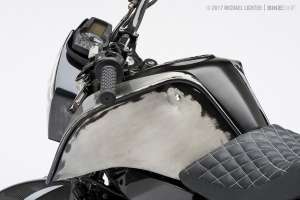

The stock fuel cell is now encased in custom aluminum panels, which the legendary Craig Rodsmith helped with. “Hundreds of hours went into metal shaping and CNC work, so I did not want to hide it all,” says Ryan.

Duked: Ryan Stephen’s knockout custom KTM 690

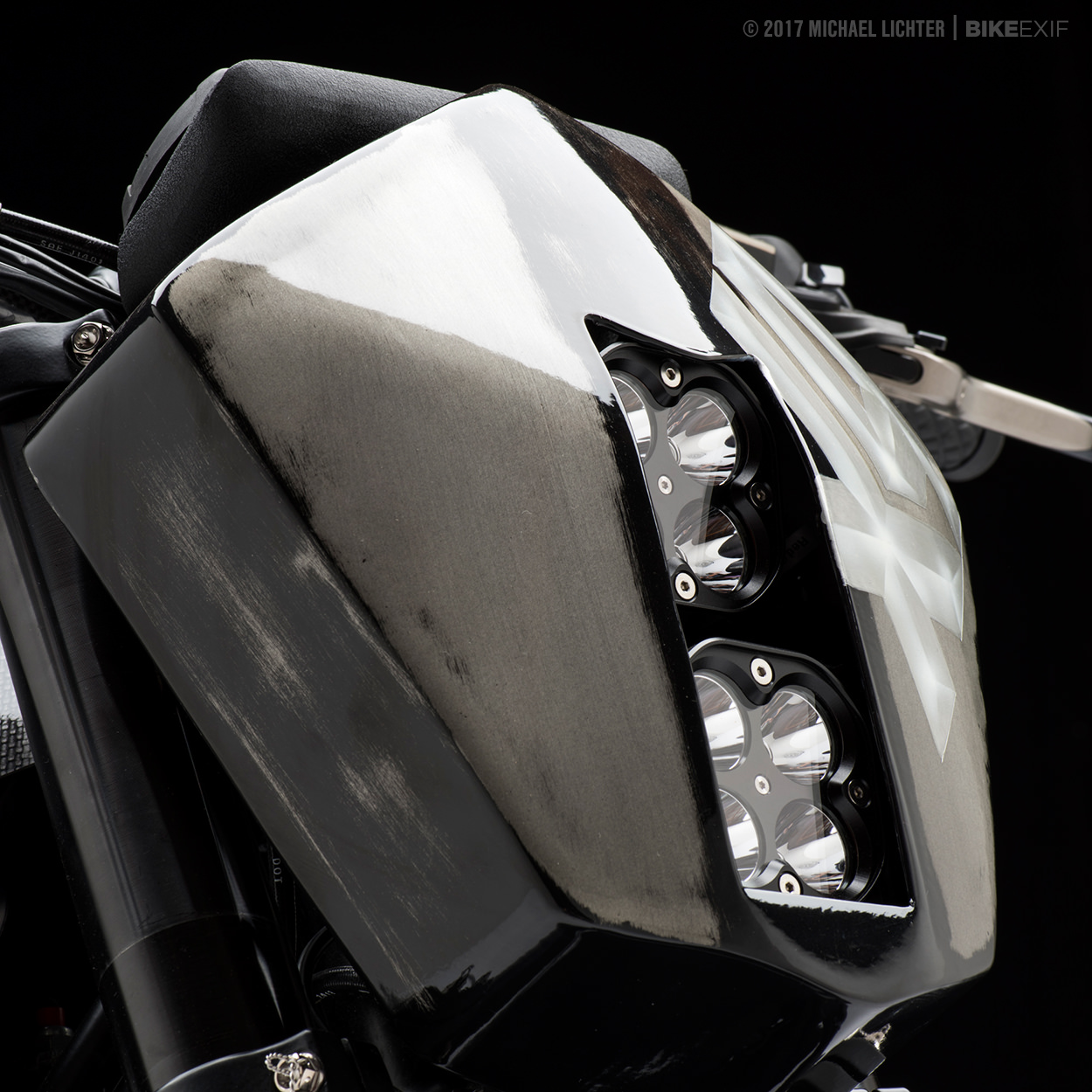

“The panels were sanded by hand, and since they were 100% straight and perfect I could throw them right in the oven. Black powder coat came first, followed by more sanding to remove most of the black, and then a tinted clear powder coat was applied to protect the exposed aluminum.”

Ryan’s given the frame a coat of semi-gloss powder, with a few other parts getting a black wrinkle finish.

Duked: Ryan Stephen’s knockout custom KTM 690

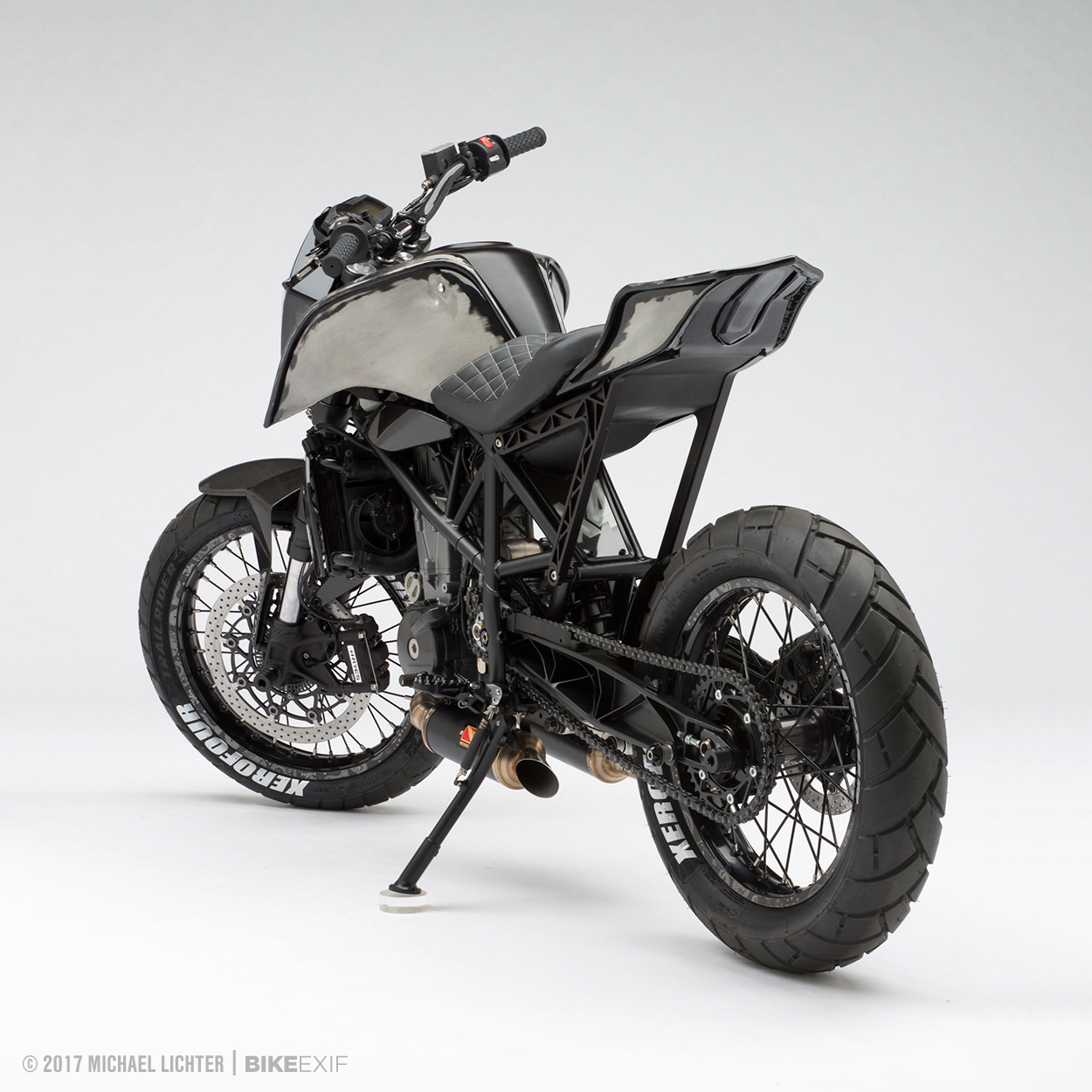

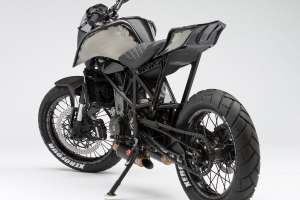

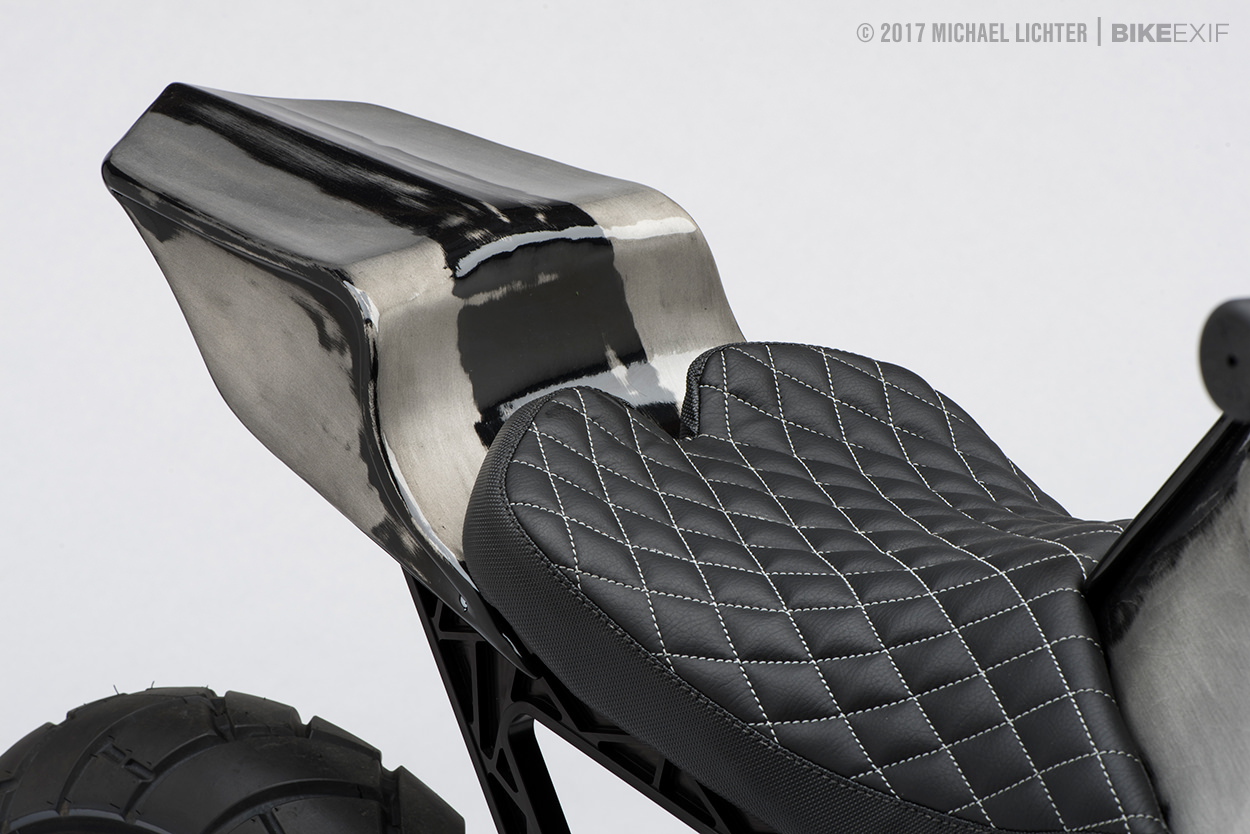

There’s a new sub frame to support that beautifully waspish tail unit, which also hides a lithium-ion battery. It sounds strong: “I had a friend machine both sides out of a 24″x 36″x 1″ billet plate. We left the raw machine marks in, because I love the look, and it was then anodized black so you can still see the tool marks.”

Ryan did all the machining jobs himself, like re-facing the KTM-branded covers and flushing in the Yamaha R6 taillight. “There is not a single badge or logo on any of the parts,” he says. “This took quite a bit of time…”

Duked: Ryan Stephen’s knockout custom KTM 690

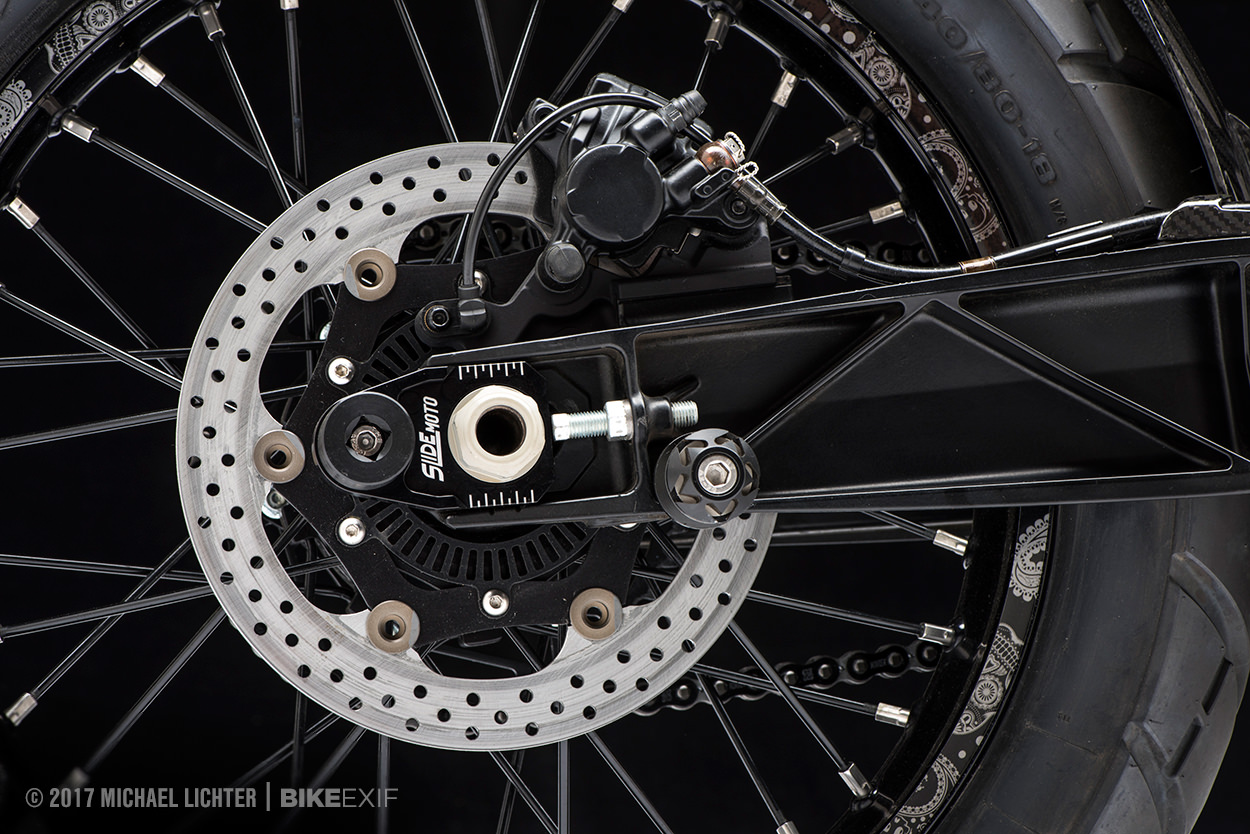

He also designed all the brake hardware in-house at Hayes Brakes. “After all, that is my day job—and repurposing superbike parts was fun.”

It’s a full custom system, from the calipers to the rotors, hooked up to wheels from Warp 9—black 19″ rims at the front and 18″ at the back. They’re shod with Avon Trailrider tires.

Duked: Ryan Stephen’s knockout custom KTM 690
The 690 Duke is no slouch on the road, with 67 horsepower pushing around a mere 330 pounds. Still, Ryan added a KTM performance cam and a Power Commander, and hand-built a custom exhaust system using Competition Werkes piping and cans—which provides the only splash of color on this machine.

Duked: Ryan Stephen’s knockout custom KTM 690

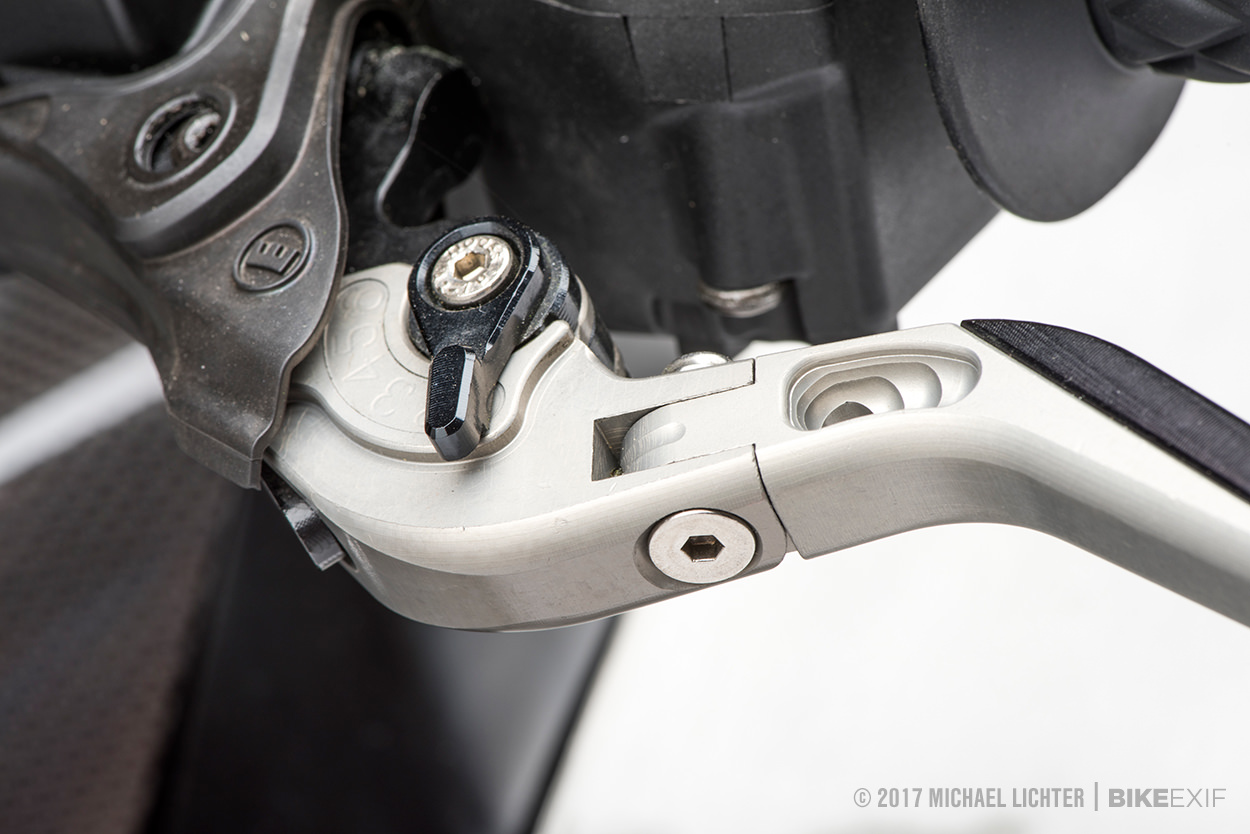

There’s a smattering of KTM PowerParts around the cockpit, from the levers to the brake and clutch covers. But everything has been stripped and recoated. Even the engine bolts are blacked out.

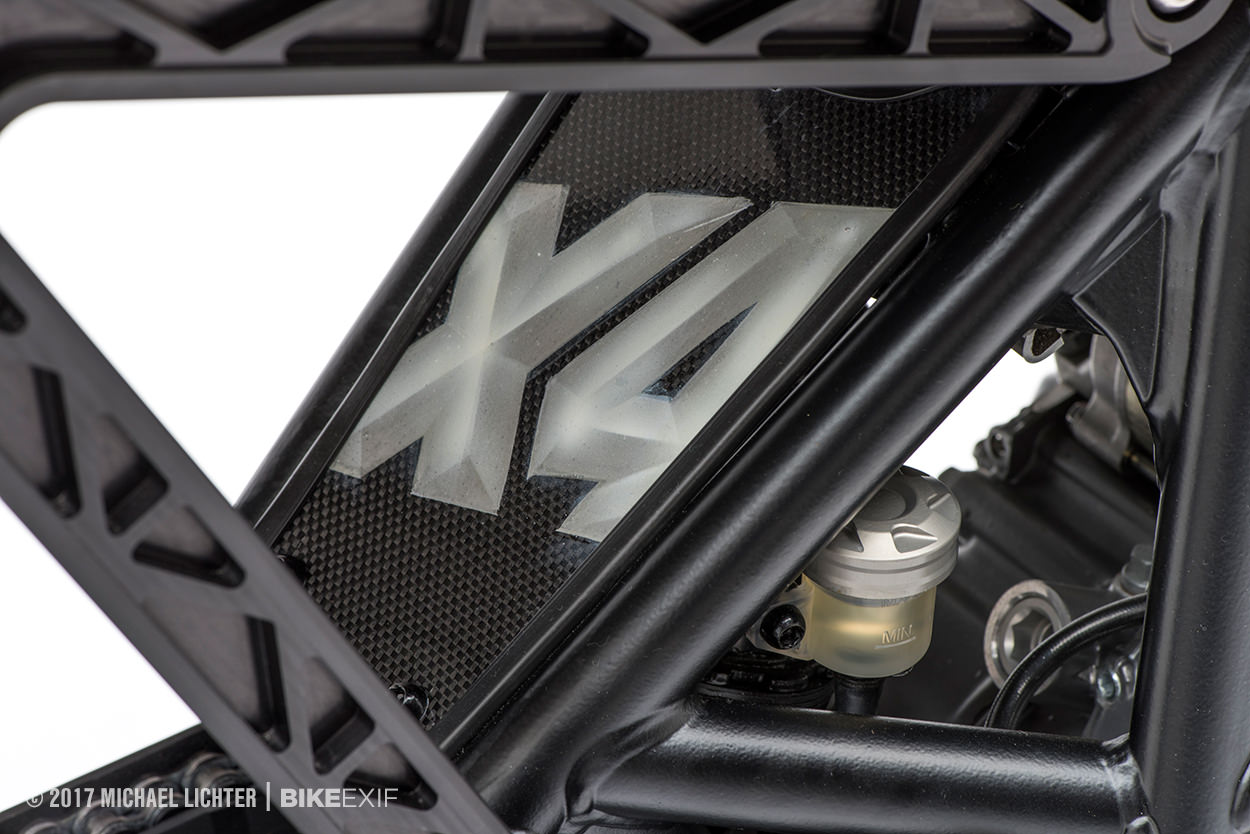

The bars are from Driven Racing, in an aluminum SBK bend and coated in black carbon fiber. The front fender, rear hugger, engine guards and radiator guards are all custom-made from carbon fiber too.

Duked: Ryan Stephen’s knockout custom KTM 690
Unlike most customs—especially your typical Sturgis bike—Ryan’s build would be perfectly at home on the track. And since the fundamentals of the 690 Duke remain intact, it’d give a good account of itself too.

With no compromise on looks or performance, this is the kind of machine we really dig.

Ryan Stephen | Instagram | Images © 2017 Michael Lichter
