Suzuki Stinger by Air-Tech

1969 Suzuki T125 Stinger

You’ve probably admired Kent Riches’ work before without knowing it. That’s because his company, Air-Tech Streamlining, has been producing high quality bodywork since the ’80s—for everyone from garage builders to factory race teams.

Kent is a prolific racer himself—with fourteen world records to his name—and an accomplished builder. His bikes are usually faithful restorations, some of which have ended up in the National Motorcycle Museum in Iowa and the Barber Museum in Alabama. He enjoys the odd custom project too. “It gives me an opportunity to take creative license,” he states, “and not worry about being nitpicked by the purists over every correct nut and bolt.”

1969 Suzuki T125 Stinger

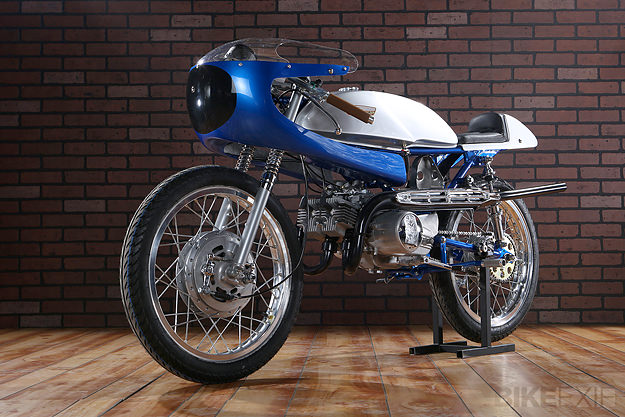

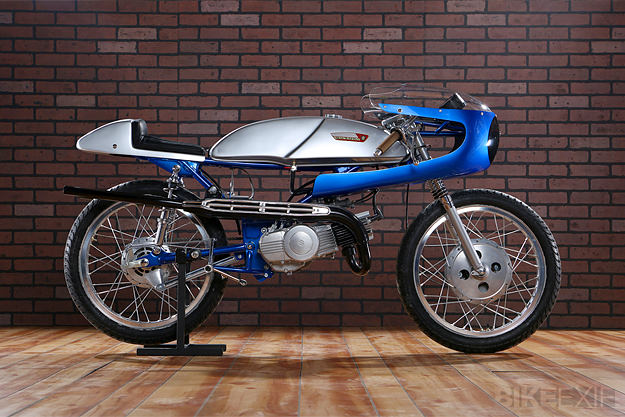

This beautiful 1969-model Suzuki T125 Stinger was built as a showcase for the products that Air-Tech produces from its facility in Vista, California. It’s a shining example of the meticulous approach that Kent prides himself on. “I like to do my customs so they look as if they came from the factory, that’s where the true artistry shows. I get a big smile on my face when people say, ‘Wow, when did they build that?’”

1969 Suzuki T125 Stinger

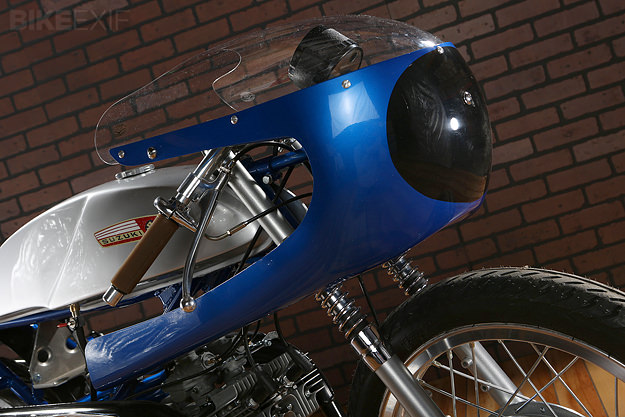

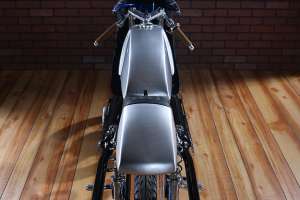

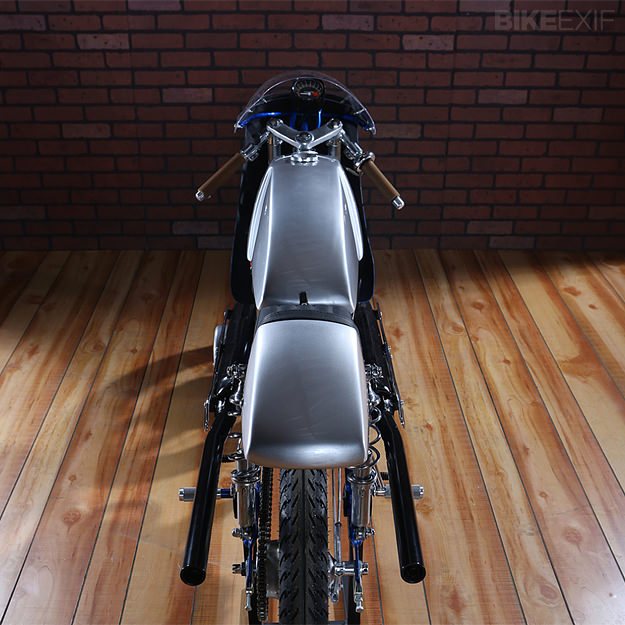

Starting with the bodywork, Kent stretched the original tank six inches before making a mold and reproducing a lightweight fiberglass version. Another mold was made for the tail unit, mimicking the rear curve of the tank. To balance the Suzuki’s lines, Kent installed a fairing that he’d originally designed for a Honda project, fabricating new fairing mounts himself.

He also custom-made a set of clip-ons and rearset foot controls. A shouldered Akront rim was laced to the Stinger’s front end, and a T500 dual leading shoe brake machined to fit. Kent also machined the rear brake backing plate.

1969 Suzuki T125 Stinger

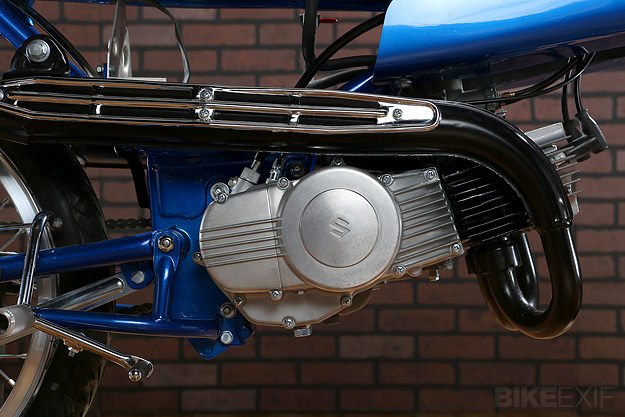

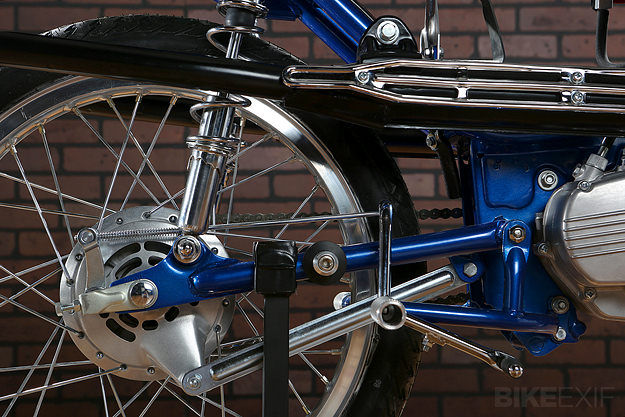

The Stinger’s two-stroke parallel-twin motor was stripped, media blasted, inspected and re-assembled with oversized pistons and new gaskets and seals. The 27mm front forks were rebuilt and a pair of YSS shocks added at the rear. Kent also replaced the swingarm’s rubber bushings with bronze ones.

A striking candy blue adorns the fairing and frame, offset by the silver tank and tail. Rather than simply machine polishing or powdercoating parts, Kent combined bead blasting, soda blasting and ball burnishing—“It makes the parts look like they would have come from the factory.” He even went as far as to have waterslide decals made for the tank, inspired by ’60s race bike badges.

1969 Suzuki T125 Stinger
With so much consideration given to authenticity, Kent’s T125 could easily be mistaken for a restored vintage factory race bike. And I’m sure he’d be happy with that.

See more at Air-Tech Streamlining.
