Ray of Sunshine: Daniel Peter’s Yamaha SR500 Scrambler

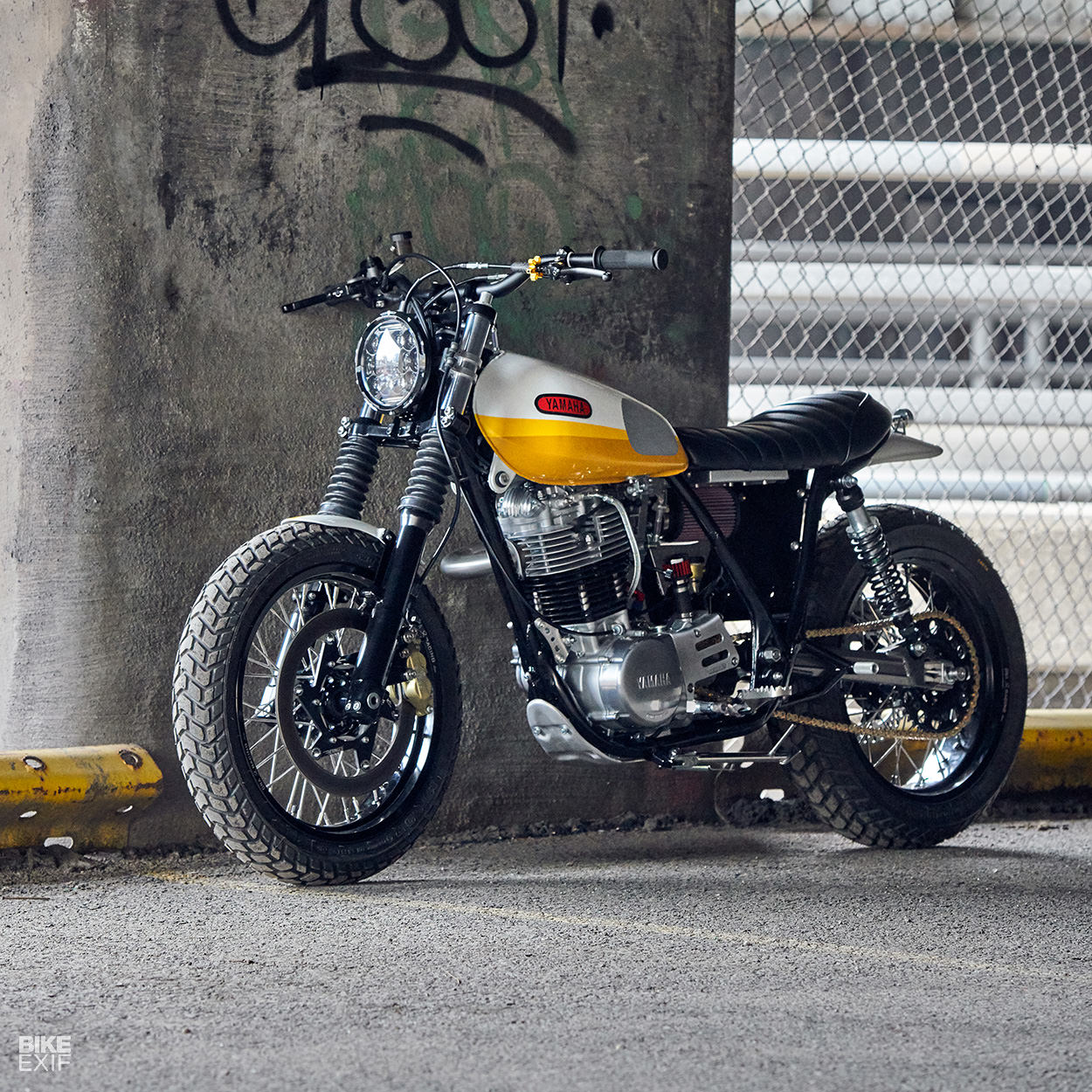

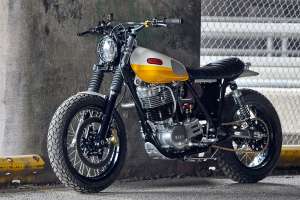

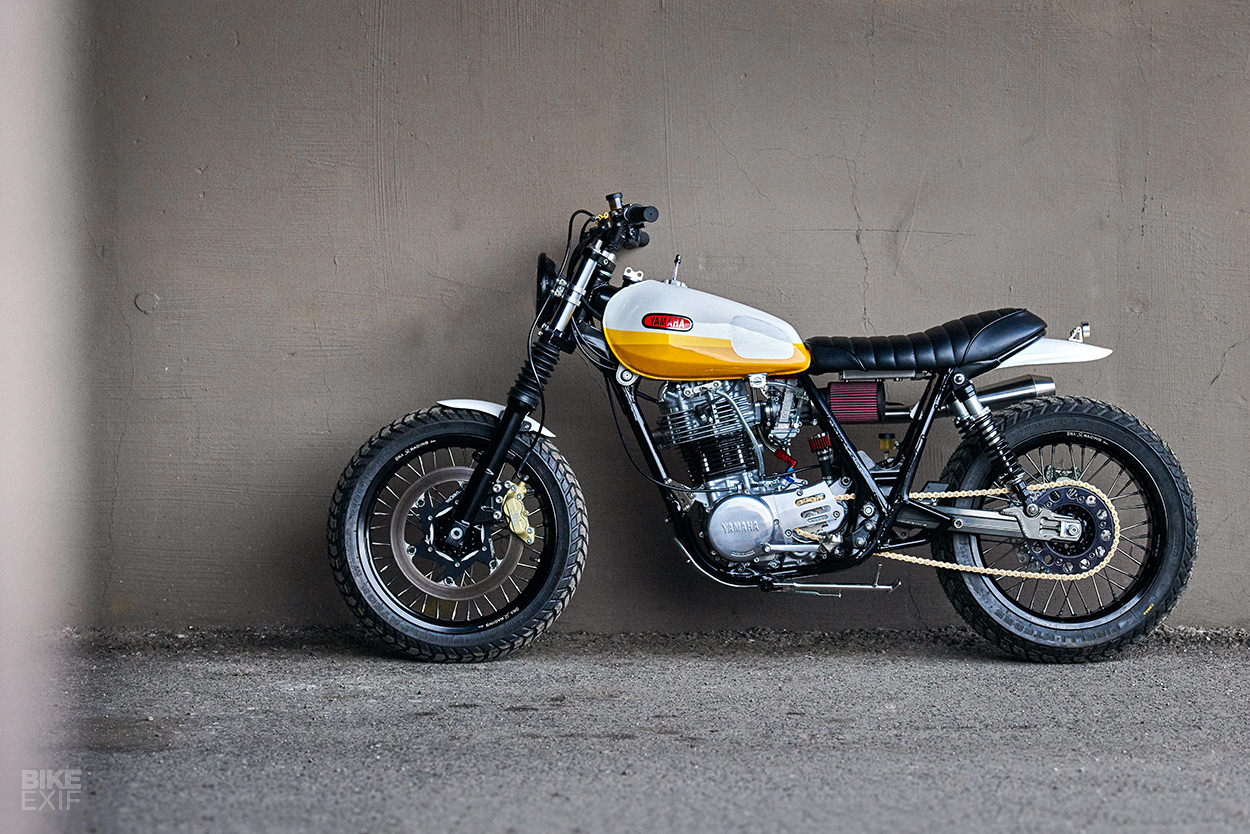

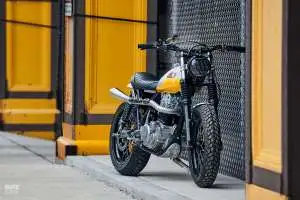

Yamaha SR500 scrambler built by Chicago photographer Daniel Peter
Scramblers are a hot topic. Build one, and you’re sure to be judged solely by how well equipped it is for hardcore off-piste use.

But that’s not all that scramblers are about. Daniel Peter compares his latest build to his childhood BMX—and it’s pretty much how we feel about modern-day scramblers too.

Yamaha SR500 scrambler built by Chicago photographer Daniel Peter
“When I was four years old, my BMX bike became my life,” he explains. “It was so simple, yet so fun. Just wheels, pedals and brakes. I’d ride it to the beach, jump a few curbs along the way, race my friends. Those were the good days.”

“30 years later, I set out to build a motorcycle based on the same principles. There’s nothing on this bike that doesn’t need to be there. It has wheels, a punchy engine and great brakes. I didn’t even put a speedo on it, because I never looked at the one on my last bike.”

Yamaha SR500 scrambler built by Chicago photographer Daniel Peter
Daniel works as a photographer in Chicago, but wrenches during the winter to keep his passion for riding alive. He keeps a workshop in Chicago’s Logan Square neighborhood, outfitted with a tool cabinet, a welder, and a 1940s South Bend lathe.

This 1978-model Yamaha SR500 is the fourth Yamaha 500 he’s built to date. “It’s the most simple, yet the most thorough, of the bunch,” he says.

Yamaha SR500 scrambler built by Chicago photographer Daniel Peter
“Having road raced an SR500 for a few seasons, I learned how to make these light and fast. This bike is very nimble, sounds amazing, and absolutely rips while still being a practical daily rider. It will get you to your favorite taco joint before you can say carnitas.”

Daniel puts the SR’s weight at 282 lbs wet—considerably less than the stocker’s claimed dry weight of 348 lbs. But it’s also packing a lot more punch than it did in ’78.

Yamaha SR500 scrambler built by Chicago photographer Daniel Peter

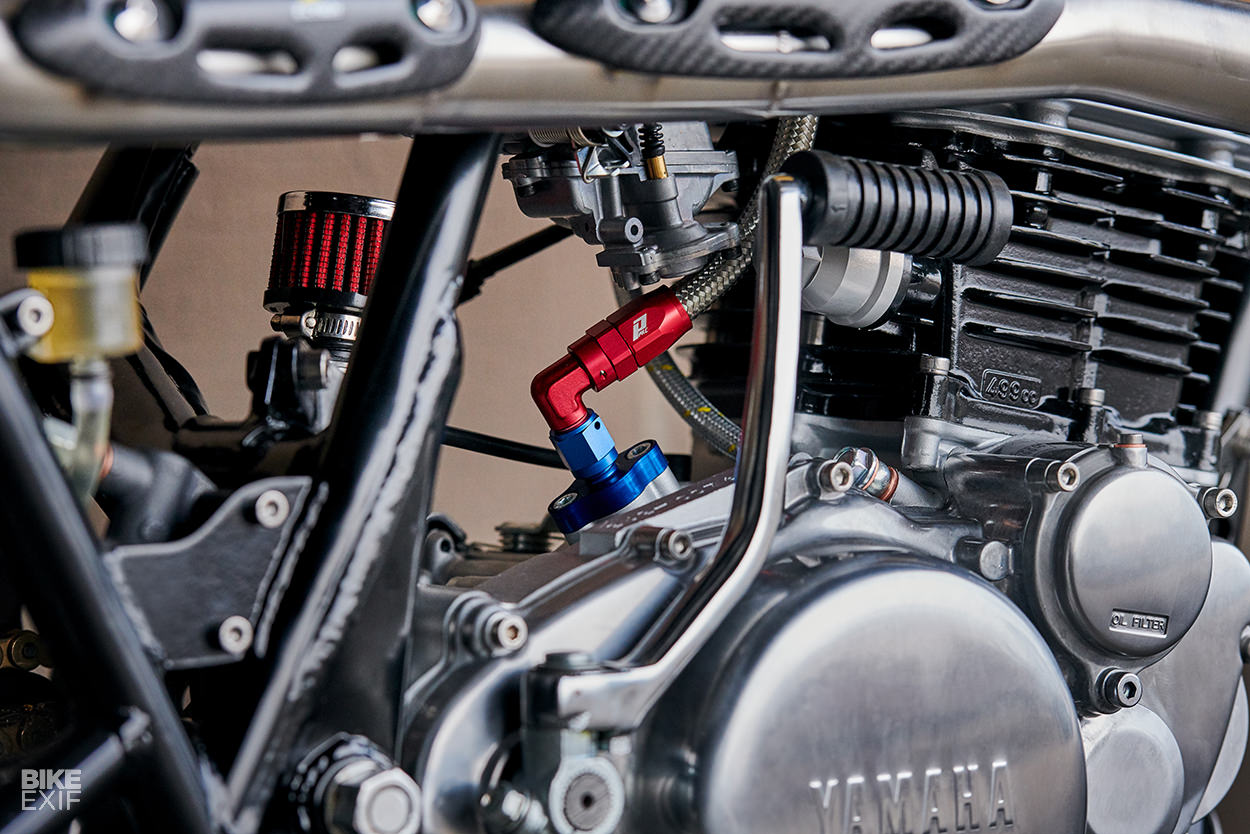

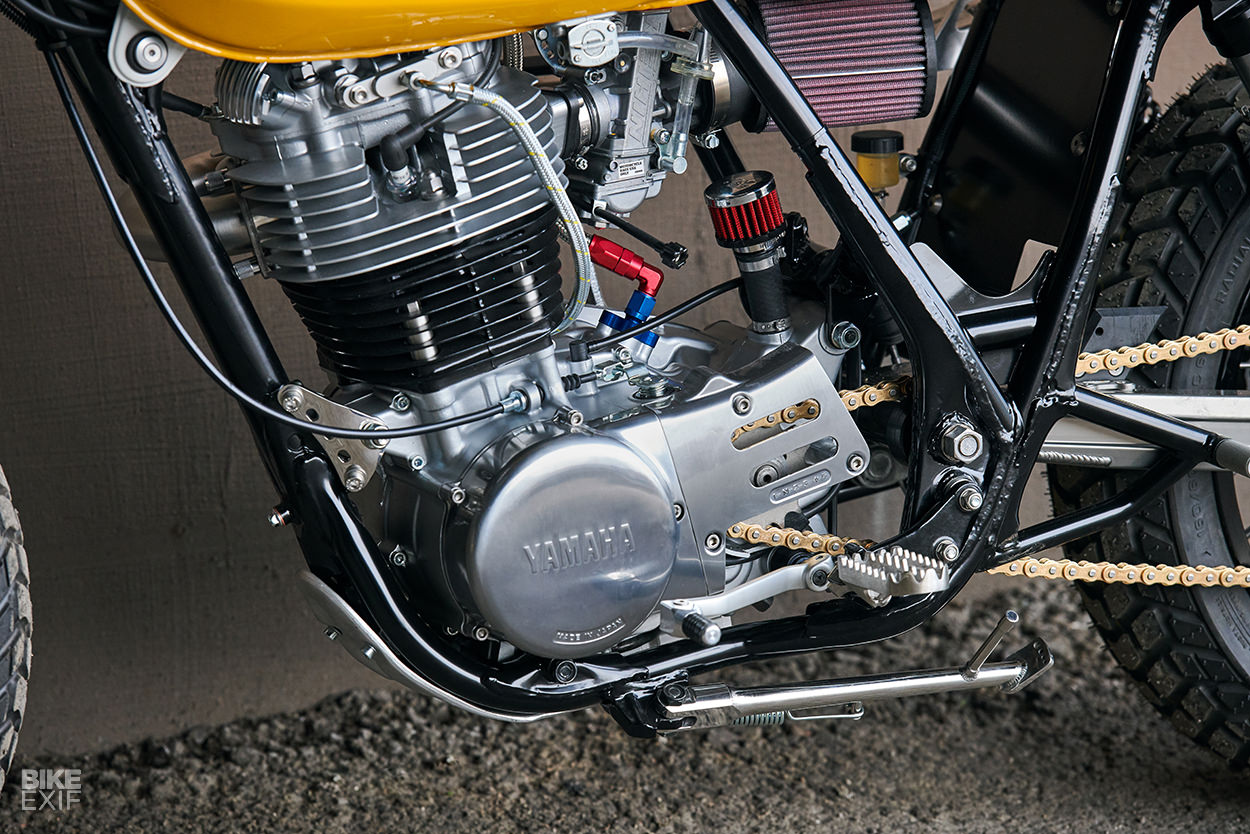

The motor’s been bumped to 540 cc, with a grocery list of go-fast bits that includes a lighter XT500 crank, a new piston from JE and a Megacycle cam for better torque down low.

R&D valve springs with titanium caps, a Powerdynamo ignition and a high-flow oil pump from Kedo round out the package.

Yamaha SR500 scrambler built by Chicago photographer Daniel Peter
Hoos Racing refreshed the crank and cut new valve seats for Daniel, but he tackled the rest of the rebuild himself. Every single bearing and seal was replaced along the way too. As for the carb, it’s been swapped out for a 39 mm Keihin FCR flatslide number, fed by a fat K&N filter.

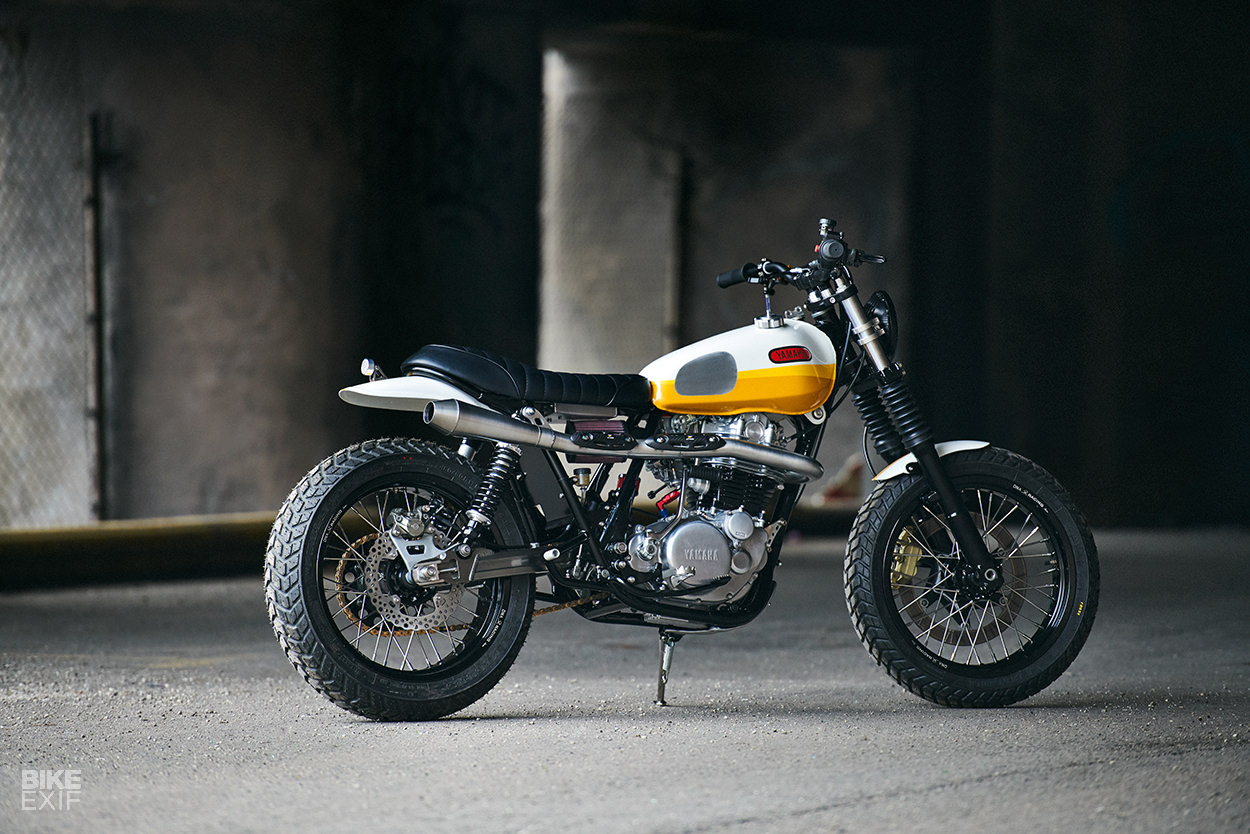

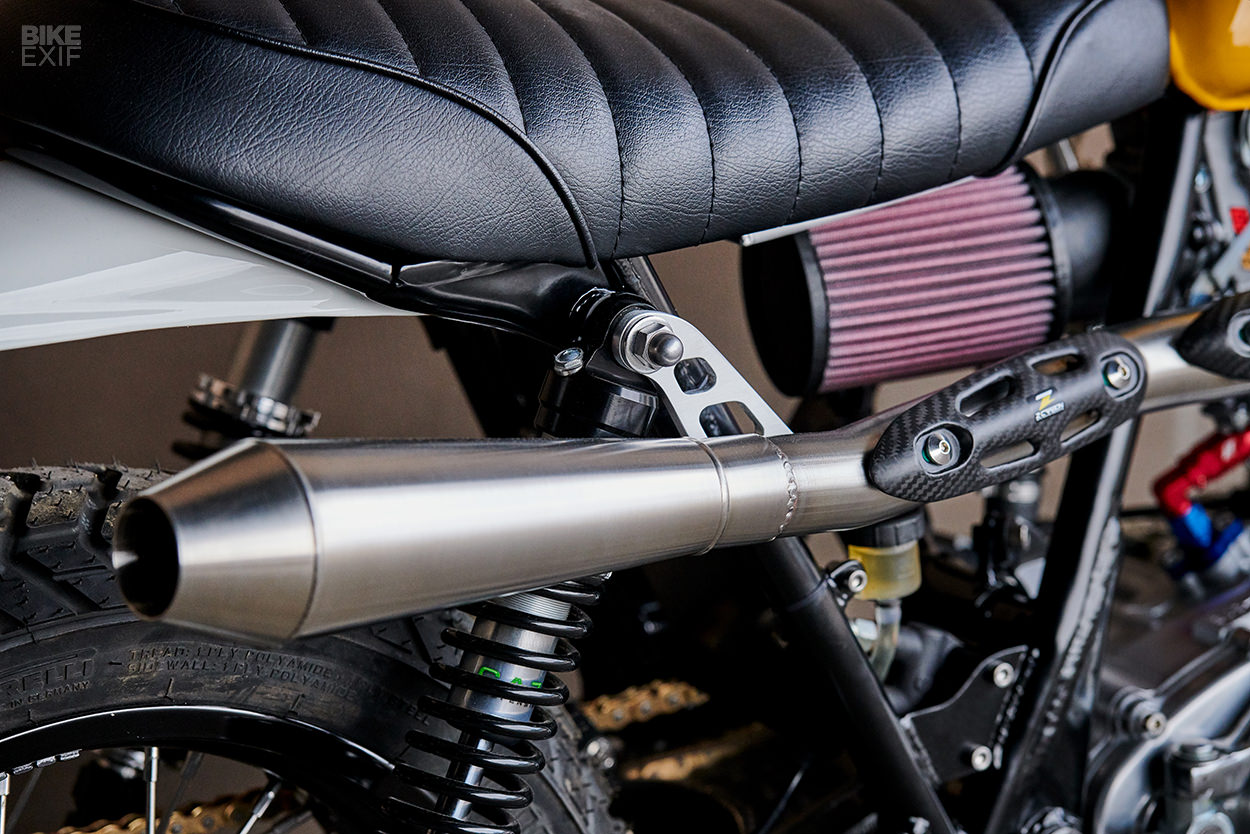

The exhaust system is a combination of a custom made stainless steel header, and a Cone Engineering muffler.

Yamaha SR500 scrambler built by Chicago photographer Daniel Peter
The performance upgrades extend beyond just the power plant. The forks look stock at a glance, but they’re actually fully adjustable 41 mm units from a 95 Kawasaki ZX6R. They’ve been lowered slightly, and re-sprung to match the bike.

A set of 13.75” adjustable Gazi shocks keep the rear in check, attached to a beautiful aluminum swing arm from MotoLanna.

Yamaha SR500 scrambler built by Chicago photographer Daniel Peter
The SR rolls on 17” supermoto wheels, borrowed from a KTM (front) and a Honda CRF450 (rear). They’re wrapped in Pirelli MT60 Corsa tread; a 120 up front, and a chunky 160 on the 5” rear rim. (“It juuust fits,” says Daniel.)

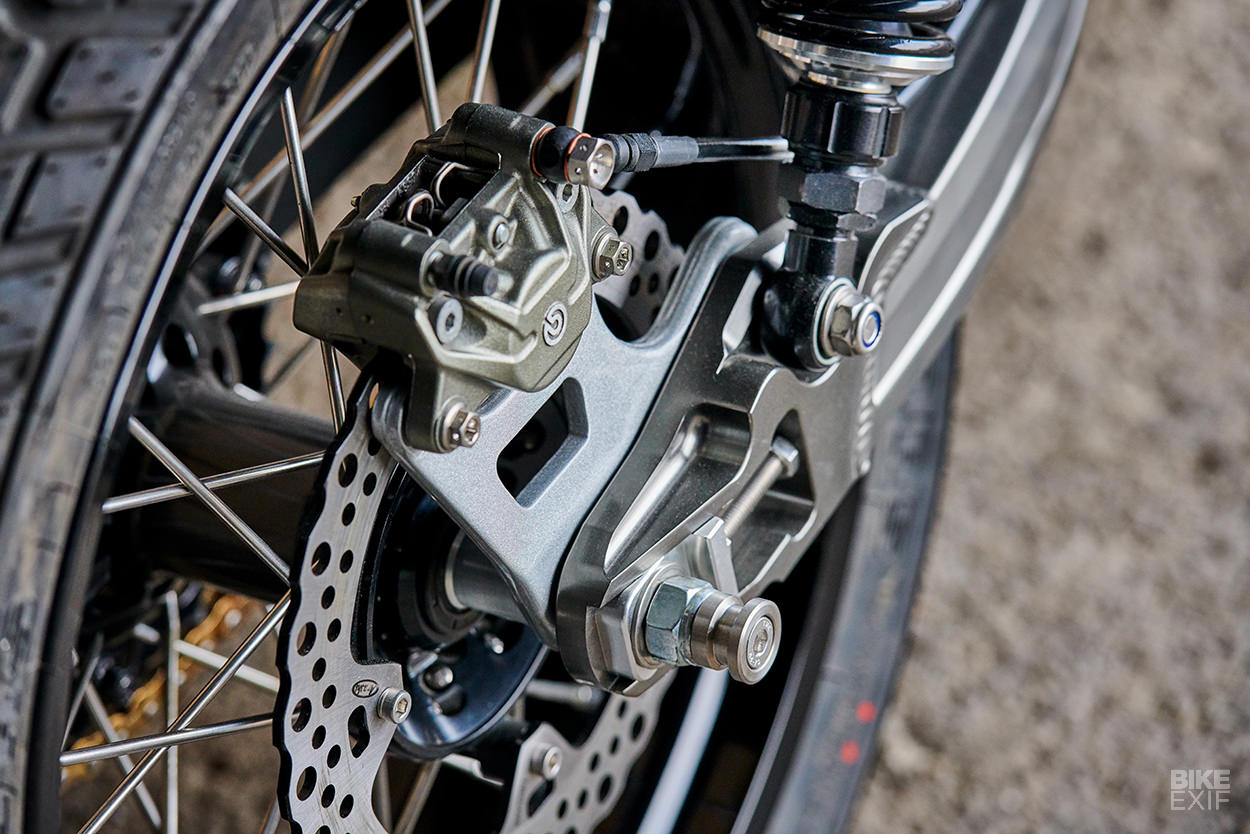

The brakes have been upgraded with a mix of Brembo and Beringer parts, with an RCS 14 radial master cylinder up front.

Yamaha SR500 scrambler built by Chicago photographer Daniel Peter

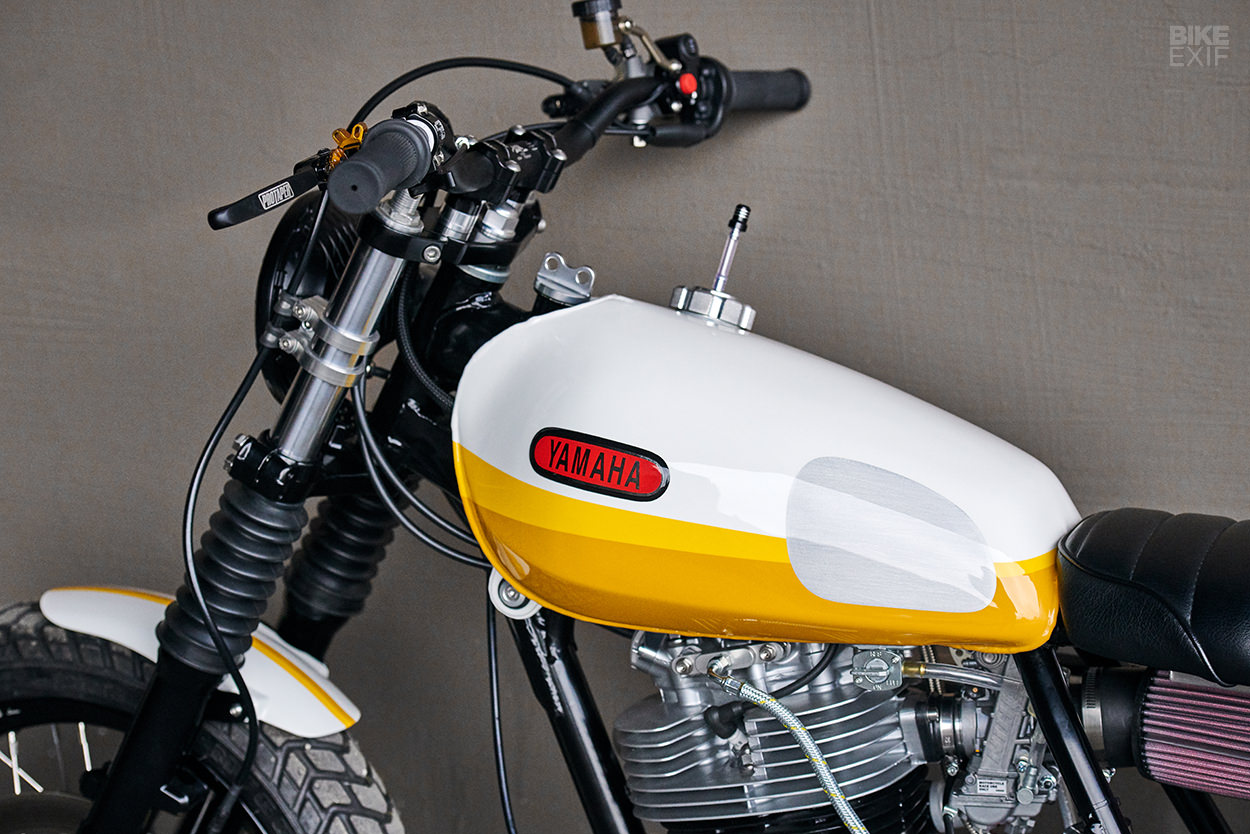

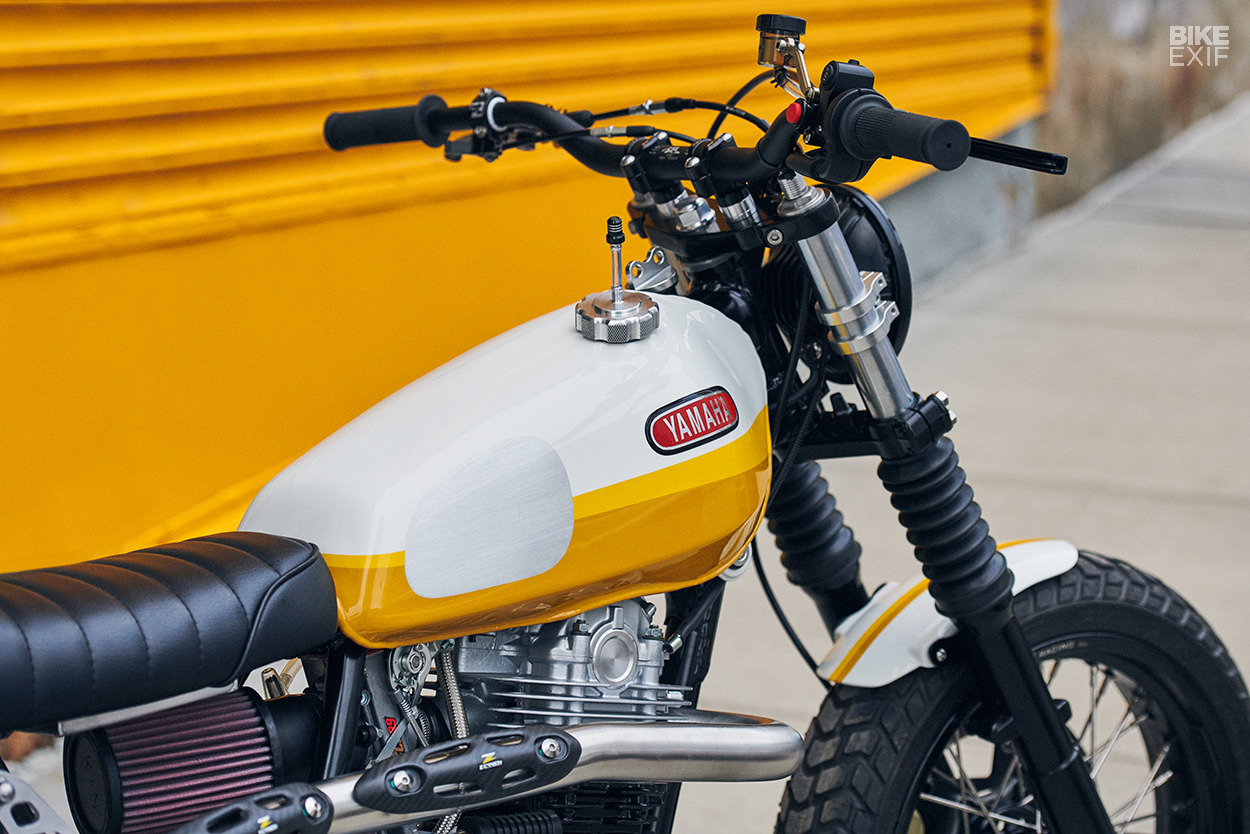

On top is an aluminum Yamaha XT500 fuel tank, wrapped in a paint scheme “inspired by an unforgettable riding trip through Baja.” Just behind it is a new saddle from MotoLanna, with a new kicked-up subframe loop.

Moving to the cockpit, Daniel installed LSL bars, Driven SBK grips, and a ProTaper Profile Pro clutch lever (with an integrated decomp lever). The switches are basic: a kill switch from Ride Engineering, and a billet light switch.

Yamaha SR500 scrambler built by Chicago photographer Daniel Peter
There’s an LED headlight out front, and a custom LED taillight, made to Daniel’s design, out back. And true to his word, he hasn’t added a speedo—or turn signals.

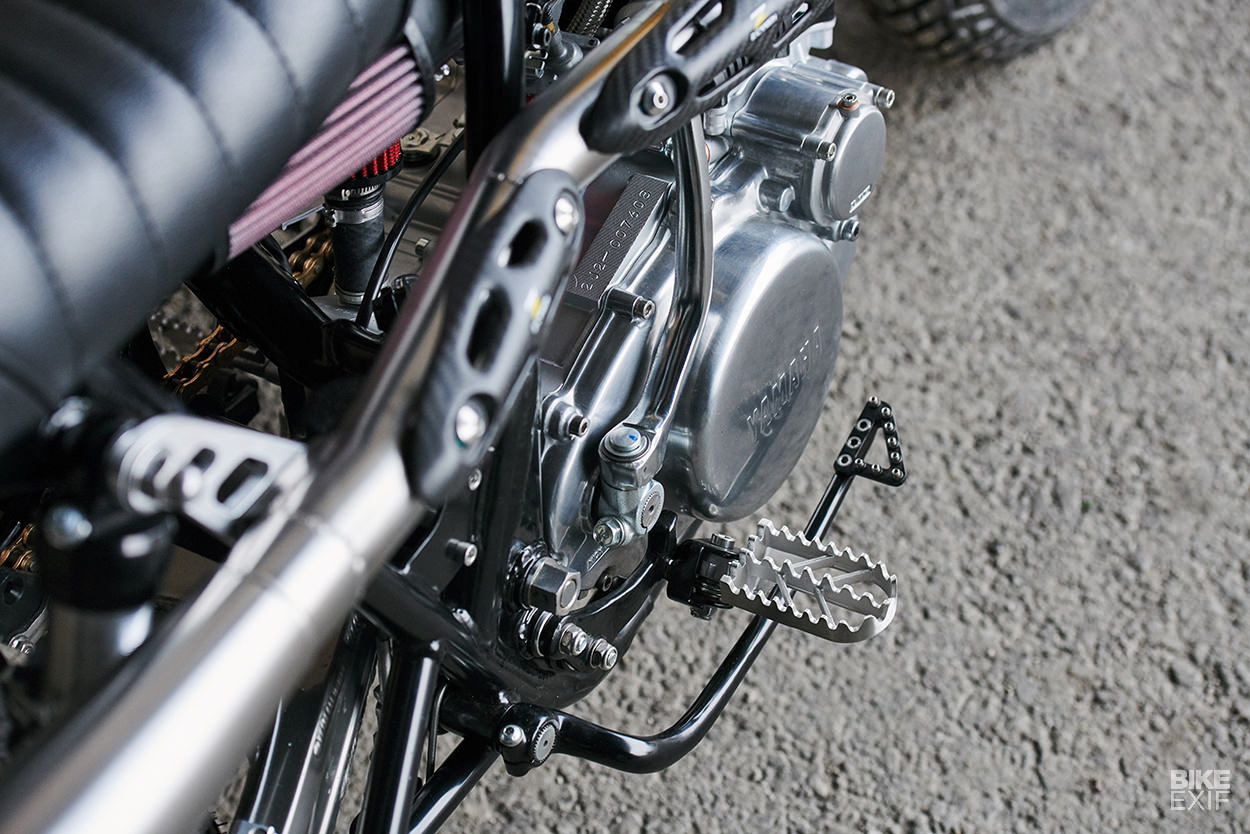

What he has added, is a bunch of smaller upgrades that score high on aesthetics and practicality. The SR has fenders at both ends, along with a inner splash guard to keep rear wheel much at bay. Serrated pegs and a bash plate add to the SR500’s overall dirtworthiness.

Yamaha SR500 scrambler built by Chicago photographer Daniel Peter
There’s also a neat cutaway sprocket cover, and a Toxic Moto chain blocker to keep the chain from biting the tire. Every part’s been given equal consideration—from the neatly cut exhaust hanger, to the discreet electronics tray under the seat.

It’s just about spring in Chicago, so Daniel must be itching to rack up the miles on his SR500. And we’re betting it’s going to be impossible to get him off it.

Daniel Peter Photography | Instagram

Yamaha SR500 scrambler built by Chicago photographer Daniel Peter

Daniel would like to thank: my good friend Adam for the donor bike, Jason at Artistimo for nailing the paint job, and Kevin Silvers, Bibu and Tony at Analog for their help.
