Forged From Passion: A blacksmith’s take on the Z650

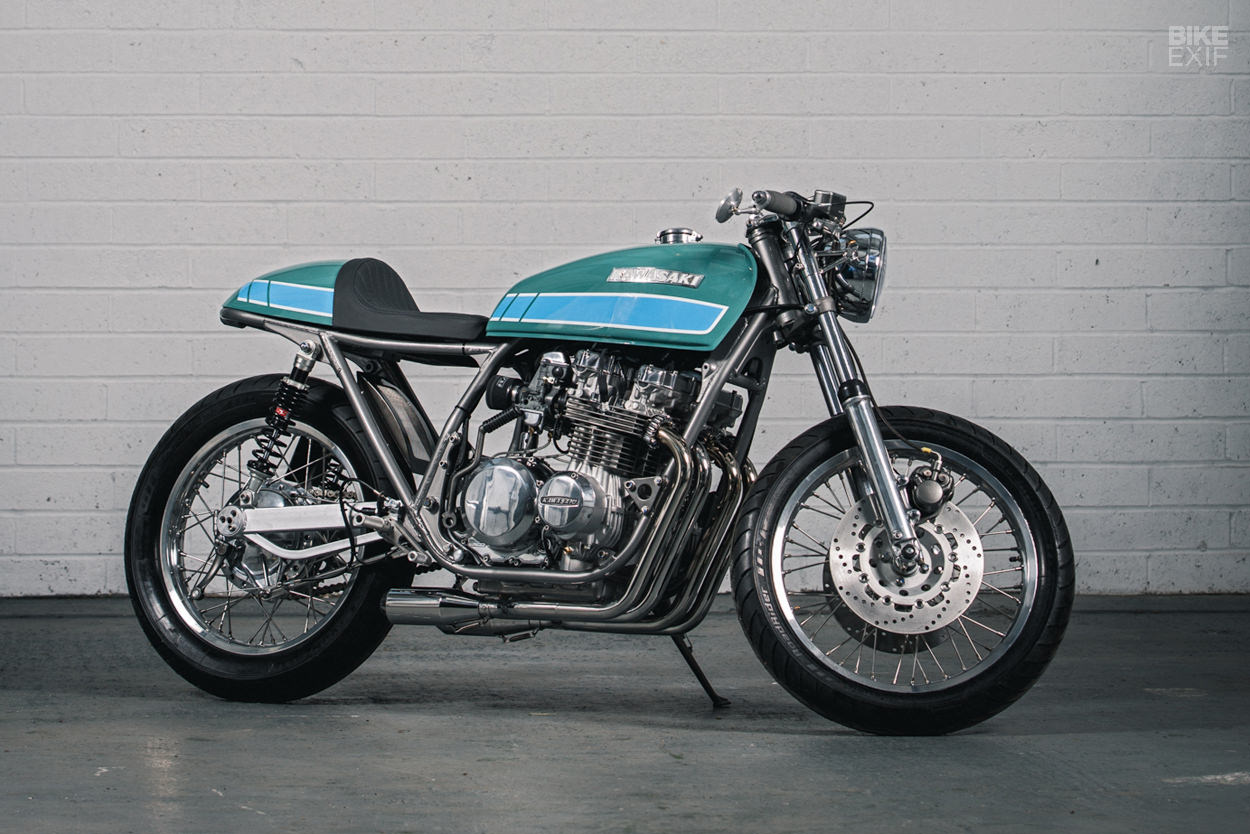

Kawasaki KZ650 cafe racer by Foundry Motorcycle
Building custom motorcycles often involves a radical career change, and we’ve seen some pretty strange jumps over the years. Tom Simpson’s background is especially unusual: he trained as a blacksmith before setting up Foundry Motorcycle in England six years ago.

Tom now builds very stylish cafe racers and bobbers in his Chichester, West Sussex workshop. As you can imagine, he has a deft hand when it comes to fabrication—but this Kawasaki Z650 is more about smart mechanical modifications than English wheels and ball peen hammers.

Kawasaki KZ650 cafe racer by Foundry Motorcycle
“Originally there were two of us at Foundry, but my partner left when we discovered how hard it is to make a living in this industry!” says Tom.

“Fortunately, there’s a lot to be said for doing something you love as a job—as well as having a wife who’s prepared to work very hard to enable you to follow your dreams.”

Kawasaki KZ650 cafe racer by Foundry Motorcycle
This Z650 would be a dream machine for many classic bike fans, ourselves included. The inline four was the archetypal ‘Universal Japanese Motorcycle,’ and in many ways was a much better sorted bike than the Z1.

Designed by Ben ‘Mr Z1’ Inamura, the Z650/KZ650 had double overhead cams and pumped out a claimed 64 hp from its 652cc motor—but handled much better.

Kawasaki KZ650 cafe racer by Foundry Motorcycle
Foundry’s build is a 1976 ‘B1,’ making it one of the earliest Z650s. It belongs to regular customer Gary, but arrived at the workshop in a sorry state. “Gary had fancied having a go at building his own cafe racer, in his own garage. But fortunately for us, he’s far better at building houses than he is at building bikes!”

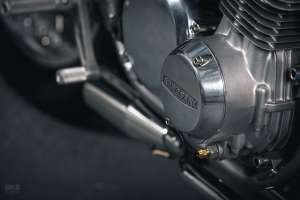

Before Gary handed the Z650 over, he’d had the engine rebuilt. But Tom and his apprentice Alex stripped it down again, taking it out to a 725cc with a bore kit—and putting all the other components back to factory spec.

Kawasaki KZ650 cafe racer by Foundry Motorcycle
“The original idea was to put together a fairly basic bike with a quick build, with a seat cowl that Gary wanted us to use,” says Tom. “But we convinced Gary to let us make it a little more unique. The lure of custom-made, polished parts was too much to refuse!”

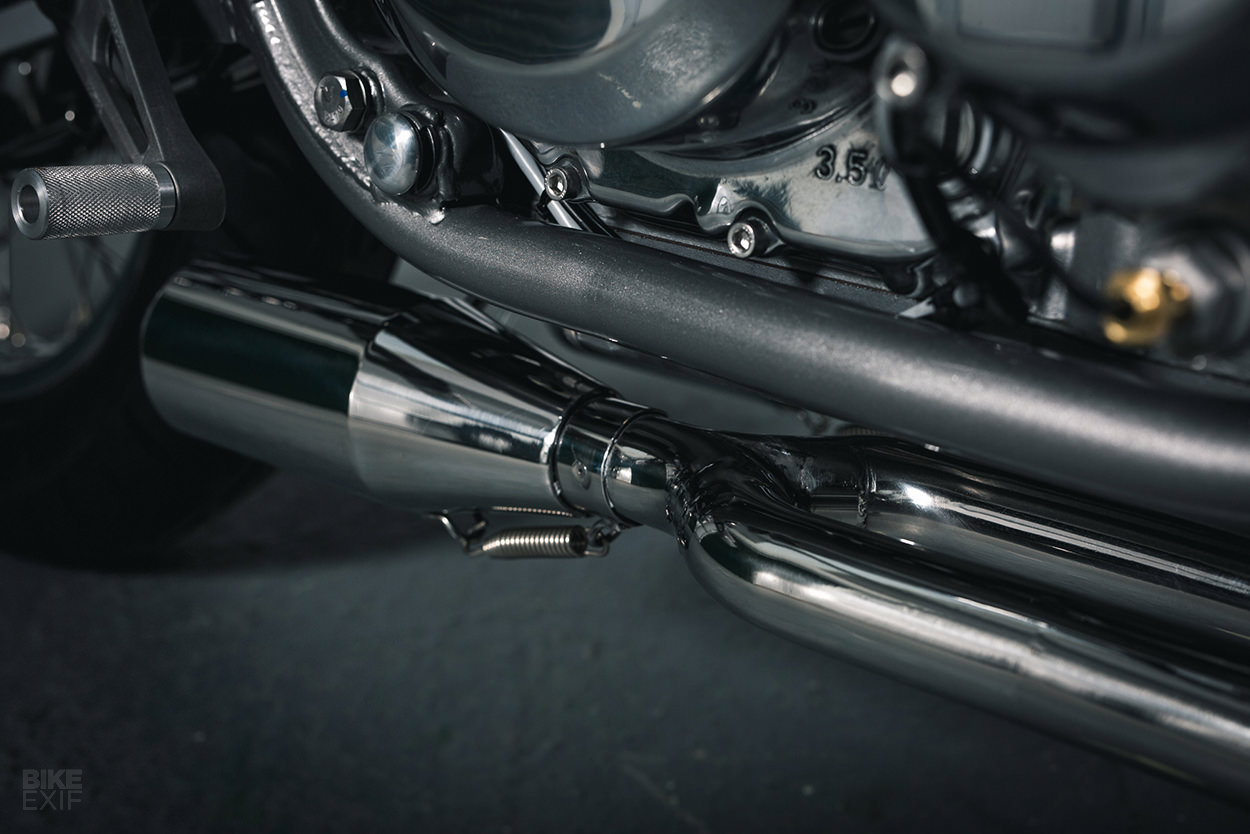

The first job was to make the most of the uprated engine. So Foundry rebuilt and rejetted the four Mikuni carbs, wired in a Dynatek ignition and coils, and installed a custom crankcase breather. They’ve also built a stubby custom exhaust system out of stainless steel, with two sets of 2-into-1 pipes.

Kawasaki KZ650 cafe racer by Foundry Motorcycle
In stock form, the Z650 was only about a second off the quarter-mile time of its Z1 bigger brother, thanks to a class-leading 98 hp per liter engine output and lighter weight. With a freshly hot-rodded engine, this one should close the gap even further …

The brakes have been upgraded to match, with new EBC drilled discs, braided hoses from HEL, and a Honda CBR RR master cylinder.

Kawasaki KZ650 cafe racer by Foundry Motorcycle

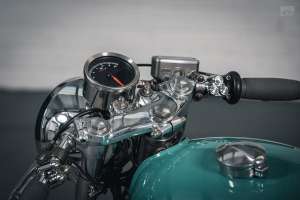

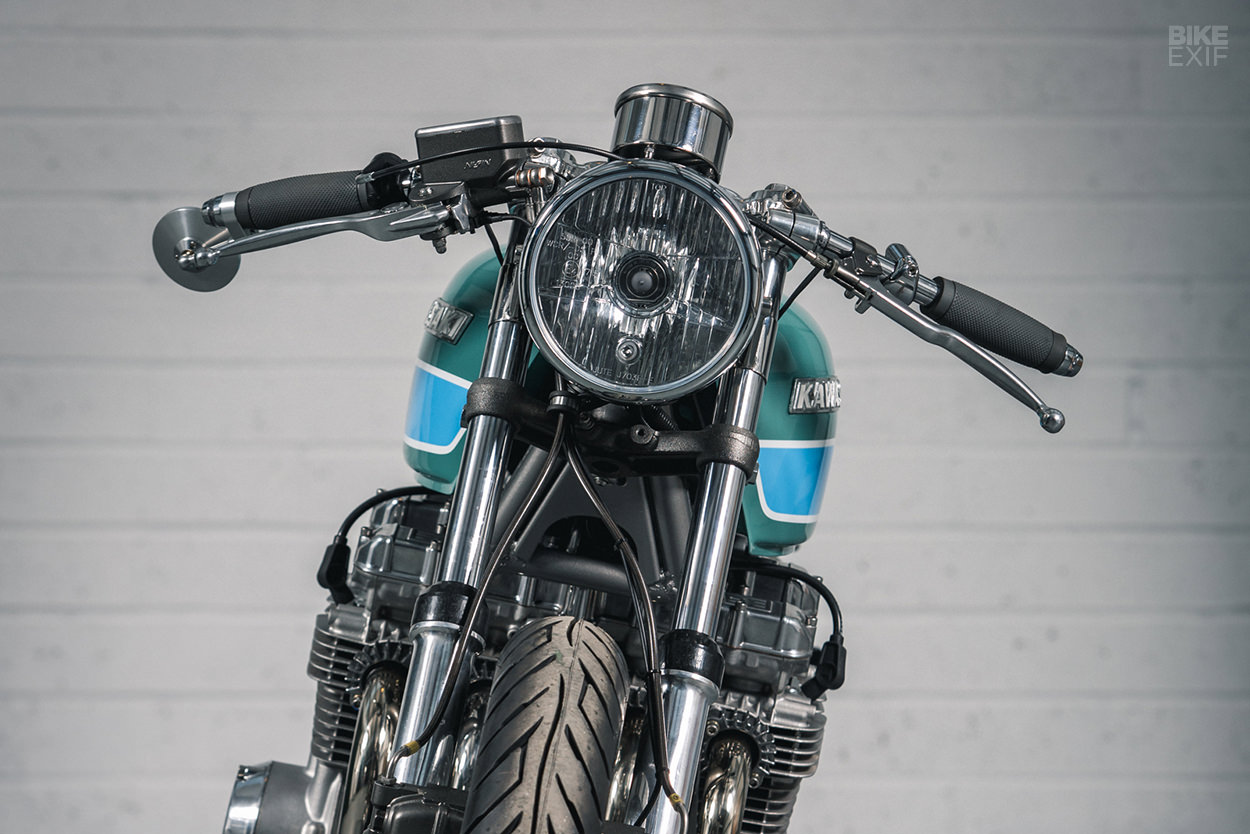

A Koso speedo sits in a custom stainless housing, just ahead of the modified and polished top yoke. There’s a new 7” headlight in the classic bucket style, mounted on custom brackets, and the switchgear is from Motone.

Kellermann supplied the bar-end blinkers, which sit at the extremities of the Tarozzi adjustable race clip-ons. The hidden under-seat electrics are hooked up to a Motogadget m.unit, plus a keyless m.lock ignition system.

Kawasaki KZ650 cafe racer by Foundry Motorcycle

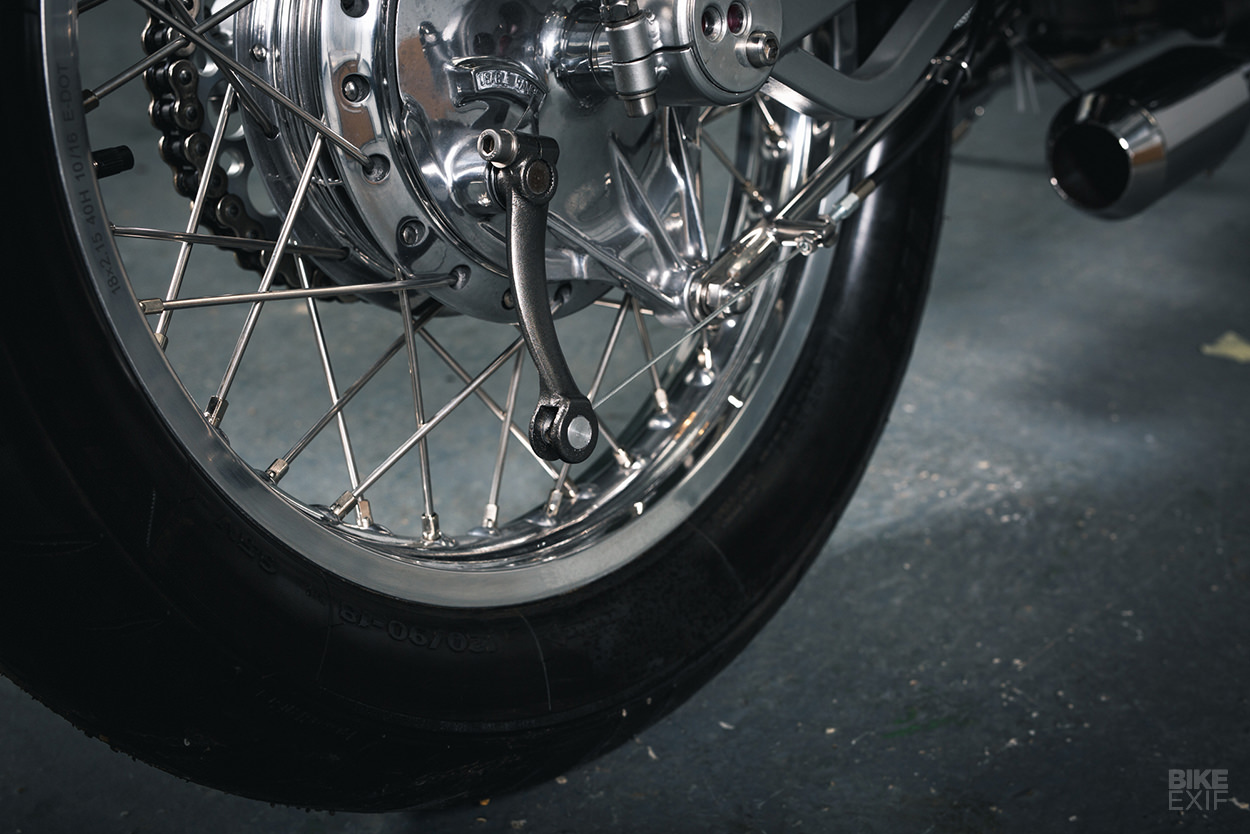

The gorgeous wheels use Morad rims laced up to new stainless spokes. They’re wrapped in Avon’s classic Roadrider rubber, and there’s a Talon sprocket at the end of the driveline.

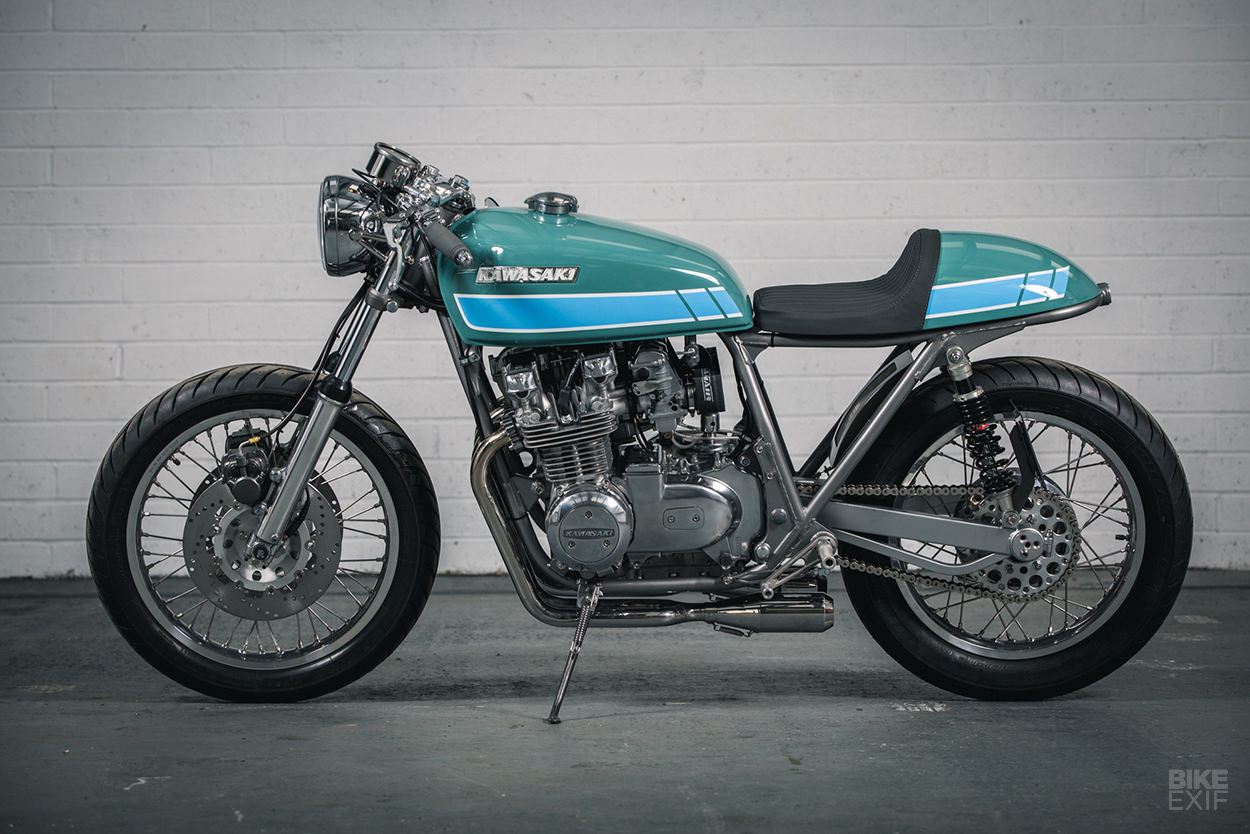

The frame has been detabbed and the back end hooped—with an integrated taillight. It’s supported by new YSS shocks with a very stylish early JMC box section swingarm completing the linkage.

Kawasaki KZ650 cafe racer by Foundry Motorcycle

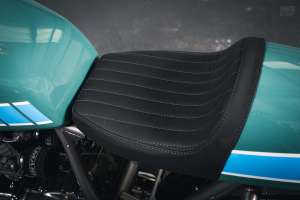

Client Gary supplied the seat unit, which Foundry had retrimmed by Trim Deluxe. The fuel tank is original, modified slightly to use a Monza-style fuel filler, and the stunning green and blue paint was supplied by local specialist S Jago Designs.

It’s almost as shiny as the raw metalwork, which has been buffed to a fine sheen by AM Metal Polishing.

Kawasaki KZ650 cafe racer by Foundry Motorcycle
“Gary is pretty patient,” Tom says. “Which is good, because the cleanest-looking bikes always take the longest time.”

Of course: as Einstein knew, genius is simplicity And in this case, the end result is worth it: it’s one of the sharpest-looking Kawasakis we’ve seen for a long time.

Foundry Motorcycle | Facebook | Instagram | Images by Chris Lanaway
