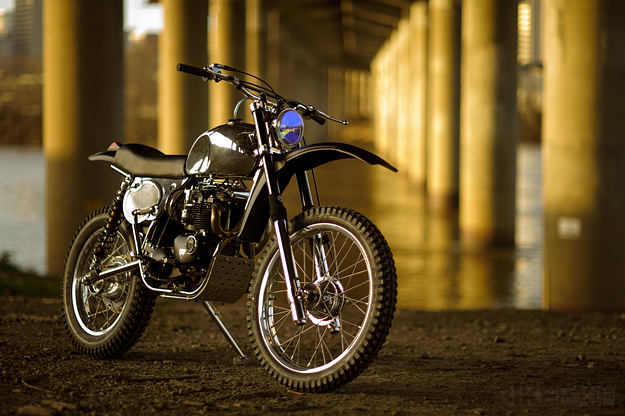

It’s always good to see an established builder move out of their comfort zone, and even better to see them land a king hit at the same time. I’d never have guessed this vintage dirt bike was from Clay Rathburn of Atom Bomb Custom, but his signature attention to detail is evident throughout.

“As long as I can remember I’ve thought dirt bikes were some of the most beautiful motorcycles made,” Clay reveals. “I think some of that influence shows up from time to time in my rigid customs.” So nearly two years ago, Clay started planning the frame for this bike. “Beyond ‘build a Triumph dirt bike’ there wasn’t much of a firm plan,” he admits. “I had a Yamaha front end on hand, and some shocks from a Husqvarna.”

Vintage dirt bike
Somewhere along the way, the project took a turn towards a serious all-out custom build. When Race Tech got involved with the suspension, Clay knew there was no turning back. “The madness took over,” he says. “One thing you don’t see very often is a full-on custom dirt bike. So I decided to go full bore on making this bike as functional and nice as I possibly could.”

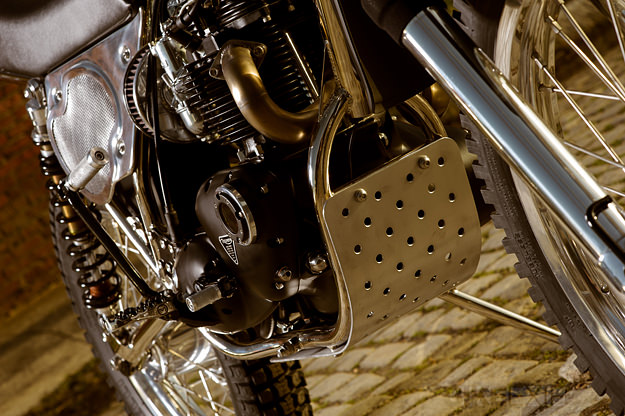

The motor is from a 1974 Triumph Bonneville, but it’s a little big for a dirt bike. So Clay cut the front motor mount ‘triangle’ off the cases, so he could slide the engine much closer to the front of his custom-designed frame. It also meant he could build a swing arm 3.5” longer than a stock oil-in-frame Triumph, with no increase in wheelbase.

Vintage dirt bike

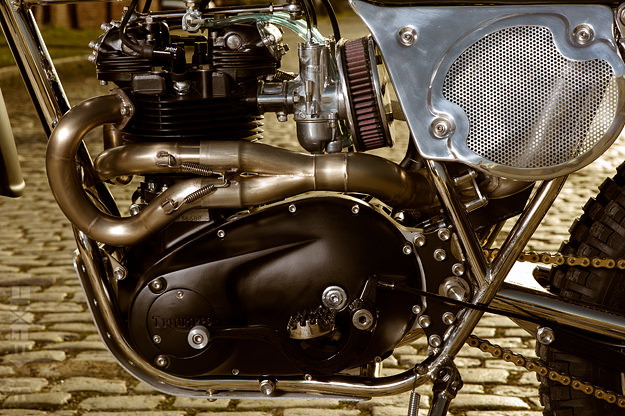

The stock Bonneville motor points the carbs outboard at a wide angle, which gets in the way on a dirt bike. “Logic would dictate switching to a single carb head … but 10-bolt single carb heads are difficult to locate, and I really wanted to keep it twin carb, so I decided to relocate the intake ports. After a three-day weekend of welding, milling and working with the die grinder, the head now has intake ports that are moved inboard about an inch and a half—and the carbs point straight back.” Everything now tucks nicely inside the frame.

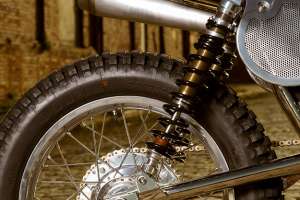

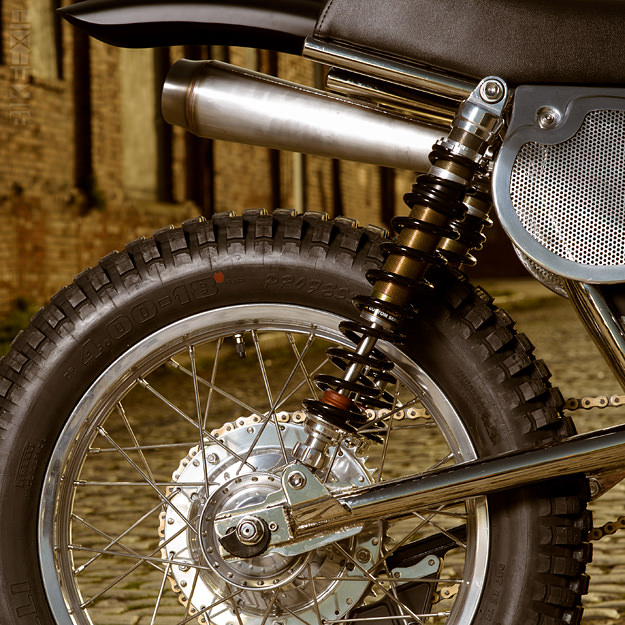

The other parts are all beautifully thought out. “I gave the rear hub to my machinist pal Chris Morris and asked him to make it lighter,” says Clay. “Two days later he handed me the most beautiful conical Triumph hub I’ve ever seen—with every surface turned down, and flutes cut into the area behind the sprocket. It’s just beautiful, and over a pound lighter than stock.”

Vintage dirt bike

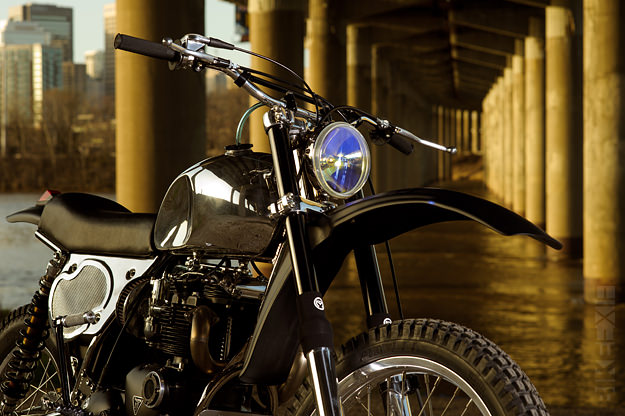

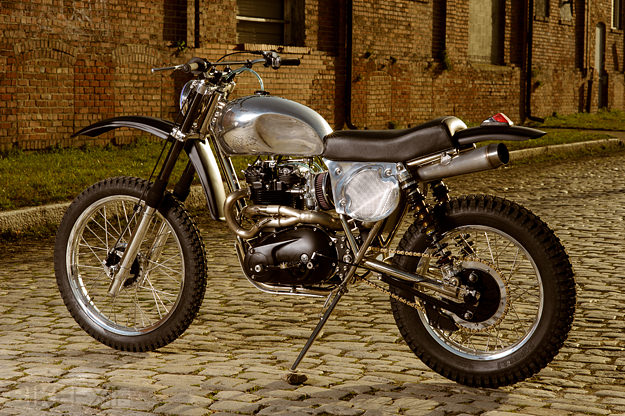

Once the bike was a roller, Clay added the finishing touches. Burns Stainless supplied the handmade exhaust collector and muffler, and also engineered the pipe lengths. Rebel Gears cut a custom rear sprocket to run a 520 chain rather than the stock 530. DC Plastics custom-molded the fenders. Industrial Hard Carbon applied black carbon coating on the 43mm KYB fork legs, and Powder 365 helped powdercoat the engine. The tank is loosely patterned after a stock Triumph, but around three inches shorter and with deeper knee pockets and a rounder shape. The side panels were rolled by hand with a step roll.

Vintage dirt bike
“Since this was a personal project I wasn’t able to work on it every day,” says Clay. “It often sat for weeks without being touched. In fact, we moved our home and shop 200 miles and finished four other motorcycles while this project was ongoing!” Despite the upheaval, RVA Overland was one of the most time-intensive builds to come out of Atom Bomb. “By the time it was wrapped up a few days ago, it was more of an obsession than anything else,” says Clay.

I’d say it was an obsession worth pursuing, and one of the most accomplished off-road builds we’ve seen in a long time.

Images by Anthony Hall. Check out our archive of previous Atom Bomb builds here.
